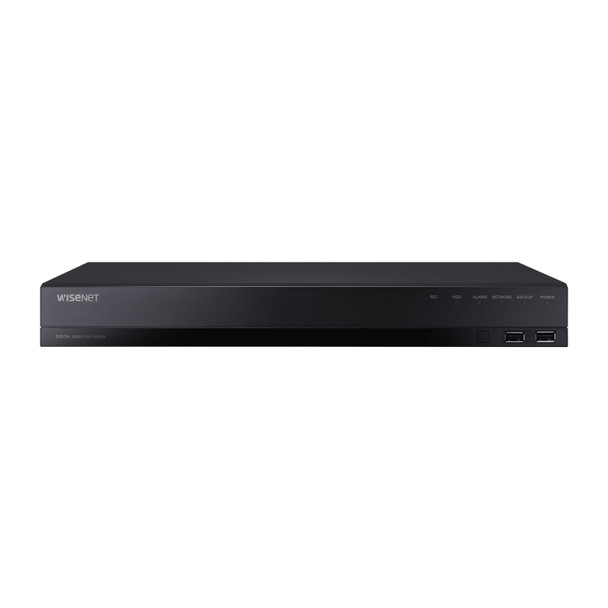

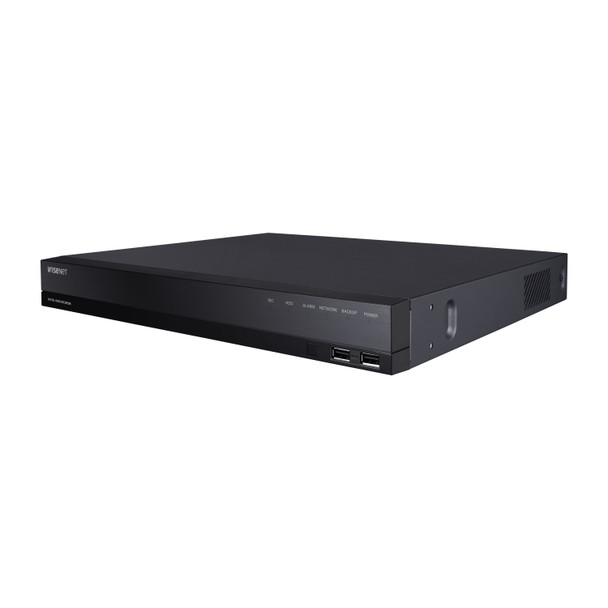

Samsung Hanwha HRX-820 8 Channel Pentabrid Digital Video Recorder - No HDD included

Brand: Hanwha Vision (Samsung Techwin)
Part Number: HRX-820
Write a Review
Replacement: Samsung Hanwha HRX-835 4K 8 Channel Pentabrid Digital Video Recorder, No HDD Included
Check the other awesome products:
Samsung Hanwha Video Recorders
Samsung Hanwha Video Recorders DVR
Hanwha Vision Video Recorders
Discontinued
  • Samsung Hanwha HRX-820 8 Channel Pentabrid Digital Video Recorder - No HDD included
  • Samsung Hanwha HRX-820 8 Channel Pentabrid Digital Video Recorder - No HDD included
  • Samsung Hanwha HRX-820 8 Channel Pentabrid Digital Video Recorder - No HDD included
  • Samsung Hanwha HRX-820 8 Channel Pentabrid Digital Video Recorder - No HDD included
  • Samsung Hanwha HRX-820 8 Channel Pentabrid Digital Video Recorder - No HDD included
  • Samsung Hanwha HRX-820 8 Channel Pentabrid Digital Video Recorder - No HDD included
  • Samsung Hanwha HRX-820 8 Channel Pentabrid Digital Video Recorder - No HDD included
  • Samsung Hanwha HRX-820 8 Channel Pentabrid Digital Video Recorder - No HDD included
$338.55
Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.265, MJPEG, H.264,
  • Pre-Installed Storage : No HDD included
  • Max. Recording Resolution : 8MP (4K)
  • Color : Black

Related Products

Customers Also Viewed

Oculur CRHK82 8-Channel H.265+ Turbo HD Digital Video Recorder

Oculur CRHK82 8-Channel H.265+ Turbo HD Digital Video Recorder

CRHK82
$289.26
  • Compression : H.265, H.265 Plus, H.264, H.264 Plus,
  • Pre-Installed Storage : No HDD included
  • Video Output : 1x VGA 1x HDMI
  • Max. Recording Resolution : 5MP
  • Hard Drive Ports : 1 SATA Port
  • Max. Storage Capacity : 8 TB Storage Capacity
Digital Video Recorder (DVR) Digital Video Recorder (DVR)

Description

Samsung Hanwha HRX-820 8 Channel Pentabrid Digital Video Recorder

Key Features:

  • 5-in-1 8CH Pentabrid DVR
  • No HDD included
  • AHD/HDTVI/HDCVI/CVBS/IP inputs
  • Max. Analog 8CH + NW 2CH(Max. 10CH), up to 8MP
  • H.265, H.264, MJPEG
  • 8fps@8MP, 12fps@5MP, 30fps@2MP recording
  • Coaxial control
  • Smart search(only Network camera)
  • Up to 2 SATA HDDs(6TB/HDD)
  • HDMI/VGA Dual monitor
  • P2P service(QR code connect)

Downloads

Popular Search

Samsung Hanwha Video Recorders
Samsung Hanwha Video Recorders DVR
Hanwha Vision Video Recorders

Specifications

Display
Analog camera
Inputs8CH(1Vp-p 75ohm, BNC)
Signal TypeAHD(8MP, 5MP, 4MP, 1080p, 720p)
HDTVI(8MP, 5MP, 4MP, 1080p, 720p)
HDCVI(5MP, 4MP, 1080p, 720p)
CVBS(NTSC/PAL)
Network camera
InputsMax. 10CH
Resolution8MP ~ CIF
ProtocolsSUNAPI(Wisenet), ONVIF
Live
Local Display1x HDMI, 1x VGA (Dual monitor)
HDMI: 3840 x 2160, 1920x1080, 1280x720 (1920x1080, Clone mode)
VGA: 1920x1080, 1280x720
Resolution[Ananlg Camera(NTSC/PAL)]
- 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH
[Network Camera]
- Typ. 2MP(240fps)
Performance
Record
CompressionH.265, H.264, MJPEG
Record Rate(Analog)Analog Camera(NTSC/PAL)
(Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH
(Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full fps/CH
* The maximum recording frame rate depends on the frame rate of the input camera.
Recording BandwidthMax. 40Mbps (Analog Camera only) ~ 28Mbps (Network Camera only)
Resolution8MP ~ CIF
ModeManual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track
Event TriggerAlarm Input
Analog Camera : Video Loss, Motion Detection,Tampering
Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event
Event ActionE-mail, PTZ preset, Alarm out, Buzzer, Monitor out
Search & Playback
Playback BandwidthMax. 32Mbps (10CH simultaneously)
UserMax. 4 Users (Local 1, Remote 3)
Simultaneous playback10CH(Local Monitor)
4Ch (CMS, Wisenet Mobile), 1Ch(Web)
Fisheye DewarpingWEB / CMS
Storage
Supported HDDUp to 6TB
HDD SlotSATA 2ea(Max 12TB)
Backup
File backupBU, EXE(Include Player), AVI(Webviewer only)
FunctionMax. 10 CH play, Date-time/title display
Functions
PTZ
ControlVia GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller
Smart phone
Support ModeliOS, Android
Protocol SupportRTP, RTSP, HTTP, CGI(SUNAPI)
ControlLive(8ch) : Multi-Profile Support
Playback(4Ch Multi Playback, Max 2MP)
Event push
Max. Remote UsersSearch(3), Live Unicast(10)
Redundancy
ARBSupport
Easy configurationSetup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code)
Coaxial ControlCVBS(Pelco-C)/AHD/CVI/TVI
Interface
HDMI1EA
VGA1EA
BNC8CH In / 1CH Out(Spot Output)
AudioOut(1EA, RCA, Line)
EthernetRJ-45(10/100/1000BASE-T)
AlarmIn 8EA, Out 4EA
- Relay Out1(NO/NC/COM)
- Relay Out2~4(NO/COM)
USB3EA(Front USB2.0 2a , Rear USB 3.0 1ea)
Serial(Protocols)RS-485 (Samsung-T/Pelco-D/Pelco-p) * for PTZ
Power inlet1EA DC Input Jack
System
System ControlMouse, IR Remocon, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000)
LanguageEnglish, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
Environmental
Operating Temperature0°C to +40°C(+32℉ to +104℉)
Operating Humidity20% ~ 85% RH
CertificationUL, CE, FCC, KC
Electrical
Power InputDC12V
Power ConsumptionMax. 32W (6T HDD 2ea)
Mechanical
Color / MaterialBlack / Metal
Dimension (WxHxD)370.0x 44.0 x 320mm(14.57” x 1.73” x 12.6”)
WeightApprox. 2.5Kg (5.6 lb, 4TB HDD 1ea)
Network
ProtocolTCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNSWisenet DDNS
Transmission speedAnalog Camera(NTSC/PAL)
(Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH, 720p 30/25fps/CH, SD 30/25fps/CH
(Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full fps/CH
* The maximum recording frame rate depends on the frame rate of the input camera.
Transmission BandwidthMax. 20Mbps
Audio
Input/Output8 Line in / 1 Line out
CompressionG.711 (N/W Cam G.711, 726)
Audio Communication2-Way
Max Remote UsersSearch(3), Live Unicast(10), Multicast(20)
SecurityIP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup)
Device Certificate(Hanwha Techwin Root CA)
Viewer SoftwareSSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
View AllClose

Additional Information

4K Support:
4K Supported
Channel Capacity:
8 Channels
Color:
Black
Compression:
H.265 MJPEG H.264
Max. Recording Resolution:
8MP (4K)
Pre-Installed Storage:
No HDD included
Product Series:
Samsung Hanwha WiseNet HD+ Series
Recorder Technology:
Digital Video Recorder (DVR)
Warranty:
3-year Manufacturer Warranty
