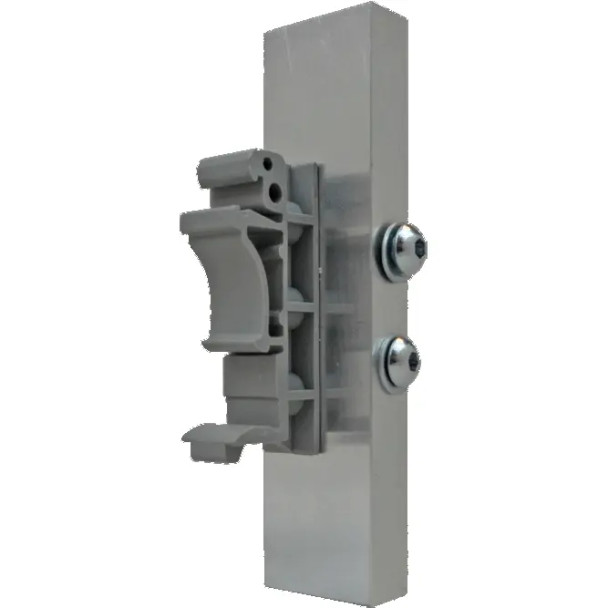

Samsung Hanwha SBP-UDR Universal DIN-Rail Adapter

Samsung Hanwha SBP-UDR Universal DIN-Rail Adapter

The SBP-UDR is a universal DIN-Rail mount adaptor kit, ideal for mounting a wide range of modules to a standard 35mm DIN-Rail mounting channel. DINRail mounting is widely used within the industrial control and ITS markets for mounting electronic and electrical hardware within an equipment cabinet, and it affords significant ease of installation, greater mounting density, and neatness/ good housekeeping within spaces having limited area. To mount shelf-mount products on an existing DIN-Rail the SBP-UDR provides a universal solution and requires minimal additional space using its unique mounting system. The module affixes onto the SBP-UDR adaptor with the mounting hardware provided. The aluminum block is fabricated with several sets of no. 6-32 drilled and tapped fixing holes that allow the module to be mounted on the adaptor in a vertical axis configuration, providing considerable flexibility in module mounting and installation. The complete assembly is then clipped directly onto a standard 35mm DIN-Rail.

Key Features:

• Allows any standard product to be adapted to DIN-Rail installation.
• Discreet installation provides smallest DIN Rail form factor.
• For use with mini, medium and standard size products

Refer to each indivudial product specification/manual for compatibility and installation instructions.
