Description

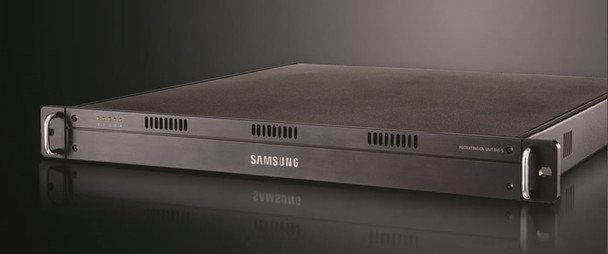

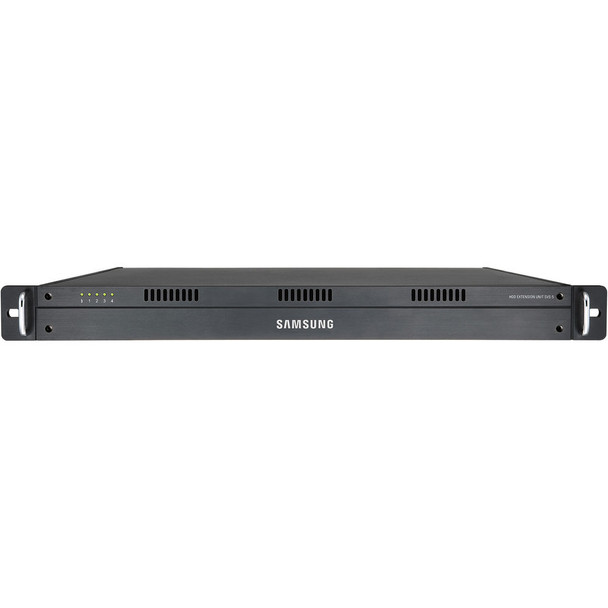

Samsung Hanwha SVS-5E-5TB HDD Extension Unit
The SVS-5 HDD Extension Unit is a 19“ rack-mount type external storage unit using an Serial ATA (SATA) interface, so that it can be installed easily in a cabinet with a DVR (Digital Video Recorder). It affords excellent space saving, because a maximum of 4 SATA HDDs may be fitted to an 1U-height chassis.
Key Features:
- 1U 19“ rack-mount type chassis
- SATA-to-SATA Port MultiPlier solution
- Max. 3.0Gbps transfer rate (SATA II) – capable of CIF 480fps recording and playback
- Max. 4 SATA HDDs support (up to a max. 2TB in case of using 500GB SATA HDD)
- Maximizes space saving and capacity relative to cost
- Easily expansible to a very large storage pool
- Max. 3.0Gbps transfer rate (SATA II)
- Width(W) × Height(H) × Depth(D) : 48.4cm×4.4cm×45.0cm
- Weight (without HDD) : 5.6kg
- AC 115V~230V (50 / 60Hz) Max. 2A
Attention:
- SVS-5S : SATA board exists
- SVS-5E : SATA board doesn’t exist
- SATA board is Board Assy’ which expands one DVR to a max. of 4 SVS-5 HDD Extension Units and installed into the DVR. - 11P Method of installation
Downloads
Popular Search
Additional Information
|
Accessory Type:
|
Hard Drives (HDD)
|
|
Color:
|
Black
|
|
Pre-Installed Storage:
|
5 TB
|
|
Warranty:
|
3-year Manufacturer Warranty
|
