Samsung Hanwha SVS-5E-6TB HDD Extension Unit

Samsung Hanwha SVS-5E-6TB HDD Extension Unit

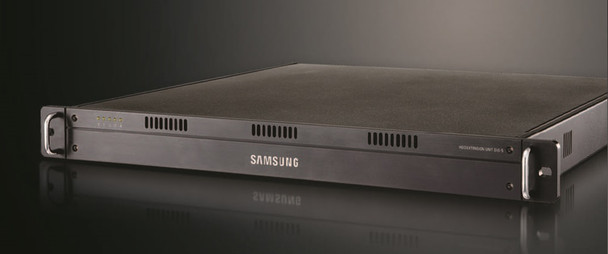

The SVS-5 HDD Extension Unit is a 19“ rack-mount type external storage unit using an Serial ATA (SATA) interface, so that it can be installed easily in a cabinet with a DVR (Digital Video Recorder). It affords excellent space saving, because a maximum of 4 SATA HDDs may be fitted to an 1U-height chassis.

Key Features:

• 1U 19“ rack-mount type chassis
• SATA-to-SATA Port MultiPlier solution
• Max. 3.0Gbps transfer rate (SATA II) – capable of CIF 480fps recording and playback
• Max. 4 SATA HDDs support (up to a max. 2TB in case of using 500GB SATA HDD)
• Maximizes space saving and capacity relative to cost
• Easily expansible to a very large storage pool
• Max. 3.0Gbps transfer rate (SATA II)
• Width(W) × Height(H) × Depth(D) : 48.4cm×4.4cm×45.0cm
• Weight (without HDD) : 5.6kg
• AC 115V~230V (50 / 60Hz) Max. 2A

Attention:

• SVS-5S : SATA board exists
• SVS-5E : SATA board doesn’t exist
• SATA board is Board Assy’ which expands one DVR to a max. of 4 SVS-5 HDD Extension Units and installed into the DVR. - 11P Method of installation
