Description

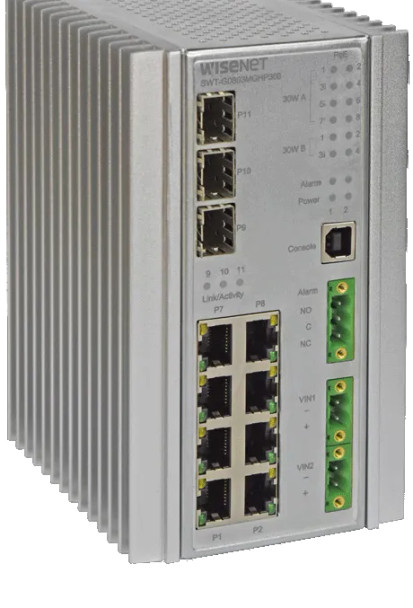

Samsung Hanwha SWT-G11MGHP Ethernet Switch with 8 PoE++ Gigabit and 3 SFP Ports
The SWT-F11MGHP has three 100/1000Base-FX SFP* ports and eight 10/100Base-TX ports. Two of the SFP ports support 2.5 Gbps SFPs for high-speed communication in bandwidthintensive applications. All SFP ports utilize SFP modules for fiber and connector type, and distance selection. The Port Guardian feature provides additional cybersecurity protection by enabling physical port lockout in the event that an existing cable is disconnected and prevents a potential network incursion using common spoofing techniques. The intrusion event is reported back to the operator using SNMP. The switch offers multiple Ethernet redundancy protocols which protect your applications from network interruptions or temporary malfunctions by redirecting transmission within the network. Advanced IP-based management can limit the maximum bandwidth for each connected IP device, allowing the user to adjust usage. The SWT-F11MGHP provides eight electrical ports supporting up to 30 watts of PoE+ power, and four of the eight PoE ports can support up to 60 watts of PoE power. All PoE ports are IEEE802.3af/IEEE802.3at compliant.
Key Features:
- 3 x 100/1000Base-FX SFP 8 ? 10/100Base-TX RJ45
- 2 x SFP ports also support 2.5 Gbps SFP modules for high speed communication
- 8 x IEEE802.3at compliant 30 W PoE+ ports, with 4 x ports supporting 60 W PoE++
- Total PoE budget 240 W
- Fast Redundancy/Recovery ? MSTP/RSTP/STP (IEEE802.1s/w/D) and ERPS G.8032
- Layer 3 static routing
- Supports IPV6 new internet protocol version
- Provided HTTPS/SSH protocol enhances network security
- Supports Device Binding security function
- Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
- Supports ACL, 802.1x User Authentication for security
- Web-based, Telnet and Console (CLI) configuration
- Designed for wall or DIN rail mount installations
- Hardened high-temperature DIN Rail Power Supply Included
Downloads
Popular Search
Additional Information
|
Accessory Type:
|
Switch
|
|
Color:
|
Silver
|
|
Dimensions:
|
152.4 x 88.9 x 114.3 mm (6.0 x 3.5 x 4.5 in)
|
|
Fiber Ports:
|
3x 2.5 Gbps SFP Ports
|
|
LED Indicator:
|
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Max Power Consumption:
|
250 Watts
|
|
Mounting:
|
DIN-Rail Mount
Wall Mount
|
|
Network Interface:
|
8x RJ-45 10/100/1000 Base-TX Ethernet
|
|
Number of PoE Ports:
|
8 PoE Ports
|
|
Number of Ports:
|
11 Ports
|
|
Output Current:
|
10A
|
|
Output Voltage:
|
48VDC
|
|
PoE Standards:
|
IEEE 802.3at
|
|
Power Budget:
|
240 Watt
|
|
Power for each port:
|
60W
|
|
Switch Type:
|
PoE Switch
|
|
Warranty:
|
3-year Manufacturer Warranty
|
