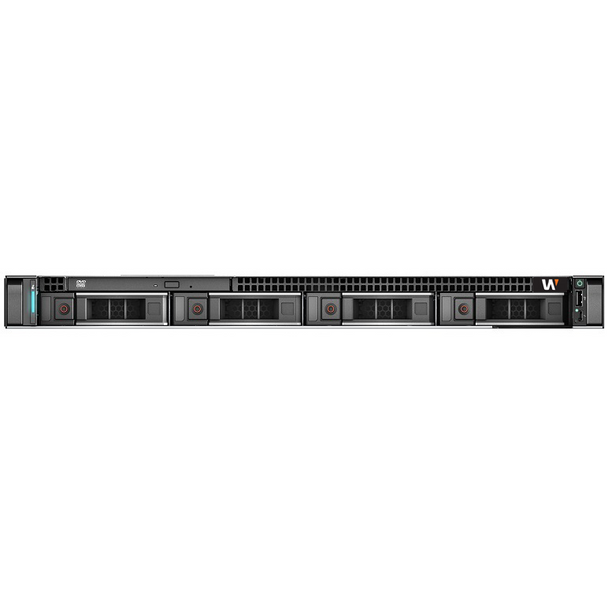

Samsung Hanwha WRR-P-E200S3-48TB WAVE Optimized 1U Rack Server, Hot Swap HDD Bays, Windows Server 2019, 48TB HDD

Brand: Hanwha Vision
Part Number: WRR-P-E200S3-48TB
Write a Review
Replacement: Hanwha Vision WRR-P-E201S-48TB Video Server & NVR with 48TB HDD Included, Windows Server OS
Check other similar products:
NDAA Compliant Cameras
Hanwha Vision Video Recorders
Hanwha Vision NDAA Compliant
Discontinued
  • Samsung Hanwha WRR-P-E200S3-48TB WAVE Optimized 1U Rack Server, Hot Swap HDD Bays, Windows Server 2019, 48TB HDD - 1
  • Samsung Hanwha WRR-P-E200S3-48TB WAVE Optimized 1U Rack Server, Hot Swap HDD Bays, Windows Server 2019, 48TB HDD - 3
  • Samsung Hanwha WRR-P-E200S3-48TB WAVE Optimized 1U Rack Server, Hot Swap HDD Bays, Windows Server 2019, 48TB HDD - 4
  • Hanwha Vision WRR-P-E200S3-48TB
Free shipping over $300 Free Shipping
Technical Support Technical Support
5 Year Warranty 5 Year Warranty
  • Pre-Installed Storage : 48 TB
  • Video Output : 1x VGA 3x Mini DisplayPort
  • Hard Drive Ports : 4 SATA Ports
  • Max. Storage Capacity : 48 TB Storage Capacity
  • Color : Black
  • Material : Metal
  • Environmental : Indoor

Related Products

Description

Samsung Hanwha WRR-P-E200S3-48TB WAVE Optimized 1U Rack Server, Hot Swap HDD Bays, Windows Server 2019, 48TB HDD

WRR-P-E200x3 series offers an affordable and reliable shallow depth 1U rackmount solution for any entry-level deployment. Up to 48TB of raw video-optimized storage is provided by 24/7 duty cycle SATA drives.

The latest Intel® Xeon® Processor allows for high powered computing power, and 16GB of DDR4 RAM provides the system resources to scale as needed.

A dedicated solid state drive for applications and the operating system enables fast boot and load times. The five year, on-site, Next Business Day, Keep Your Hard Drive warranty ensures peace of mind.

Each server is pre-configured with Wisenet WAVE VMS and preloaded with 4 Professional licenses to ensure quick and easy deployment with minimum setup time.

Key Features:

  • Preloaded and configured with Wisenet WAVE video management system
  • Up to 48TB of Raw Storage
  • 470 Mbps of recording throughput
  • SSD & 24/7 Duty Cycle SATA Drives
  • Dedicated GPU for client application
  • Shallow Depth Server
  • Includes USB mouse and keyboard
  • Includes Sliding Rack Rail with Cable Management Arm
  • 5-Year, On-site, Next Business Day, Keep Your Hard Drive Warranty
  • Supports Wisenet and ONVIF conformant IP cameras
  • IPMI Management
  • Powered by Windows Server 2019 Standard

Downloads

Quick Start Guide WAVE-Server-QSG

Popular Search

NDAA Compliant Cameras
Hanwha Vision Video Recorders
Hanwha Vision NDAA Compliant

Additional Information

4K Support:
4K Supported
Audio Capability:
Two-Way Audio
Capacity for each disk:
up to 12TB
Certifications:
FCC cUL UL Listed CB 80 Plus Bronze
Color:
Black
Compatible Integration (API):
ONVIF Wisenet open platform
Compliance:
NDAA Compliant
Dimensions:
482.6 x 614.68 x 42.8 mm (19 x 24.2 x 1.67 in)
Disk Form Factor:
3.5"
Environmental:
Indoor
Hard Drive Ports:
4 SATA Ports
Included Licenses:
4 Wisenet WAVE Professional License
Manufacturer Website:
https://hanwhavisionamerica.com/
Material:
Metal
Max Power Consumption:
450 Watts
Max. Incoming Bandwidth:
470Mbps
Max. Storage Capacity:
48 TB
Mounting:
Rack Mount
Network Interface:
2x RJ-45 1000 Mbps Port
Operating Humidity:
8% to 80% RH (non-condensing)
Operating System:
Windows Server 2019 Standard
Operating Temperature:
5 °C to 40 °C (41 °F to 104 °F)
Outgoing Bandwidth:
470 Mbps
Power Supply:
100 to 240 V AC
Pre-Installed Storage:
48 TB
Processor (CPU):
Intel Xeon Processor
Product Series:
Samsung Hanwha Wisenet WAVE WRR-P-E200x3 Series
RAM:
16GB
RAM Type:
DDR4
Rack Unit (U):
1U
Recorder Technology:
Video Server
SSD Capacity:
480GB
Special Recorder Features:
IPMI Management Keep Your Hard Drive Warranty Next Business Day Onsite Support Hotswap HDD
Storage Temperature:
-40 °C to 65 °C (-40 °F to 149 °F)
USB Interface:
2x USB 2.0 1x USB 3.0
Video Output:
1x VGA 3x Mini DisplayPort
Warranty:
5-year Manufacturer Warranty
