Description

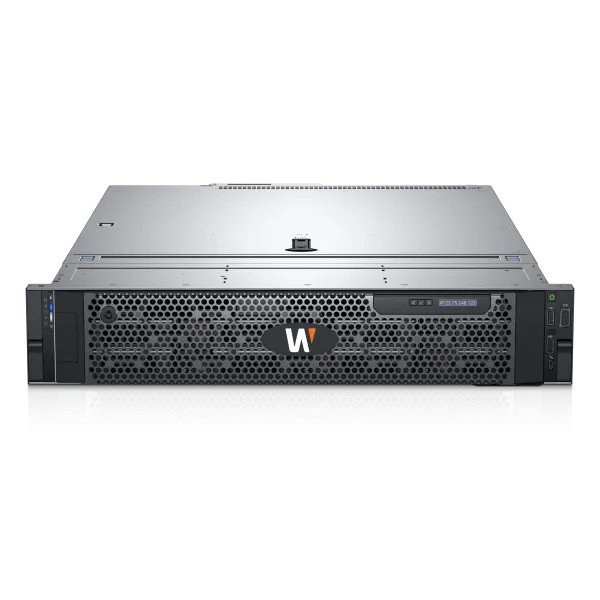

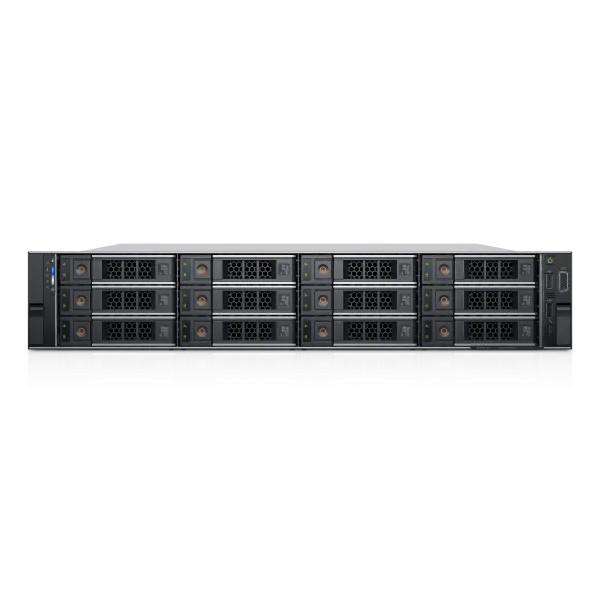

Samsung Hanwha WRR-Q-A201W-40TB WAVE Optimized 2U Rack Server with Windows 10 IoT Enterprise, 40 TB Storage
The WRR-Q-A201W offers an affordable and reliable 2U rackmount solution for any entry-level deployment. Up to 96TB of raw video-optimized storage is provided by 24/7 duty cycle SATA drives.
The latest AMD EPYC Processor allows for high powered computing power, and 16GB of DDR4 RAM provides the system resources to scale as needed.
Key Features:
- Preloaded and configured with Wisenet WAVE video management system
- 470 Mbps of recording throughput
- Up to 96TB of Raw Storage
- SSD & 24/7 Duty Cycle SATA Drives
- Dedicated GPU for client application
- IPMI Management
- Includes USB mouse and keyboard
- Includes Sliding Rack Rail with Cable Management Arm
- 3-Year, On-site, Next Business Day, Keep Your Hard Drive Warranty
- Supports Wisenet and ONVIF conformant IP cameras
- Powered by Microsoft Windows 10 IoT Enterprise
Replacement of:
WRR-5501-44TB
WRR-5501-36TB
Downloads
Additional Information
|
4K Support:
|
4K Supported
|
|
Capacity for each disk:
|
up to 10TB
|
|
Certifications:
|
80 Plus Platinum
UL Listed
cUL
CB
FCC
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
Wisenet open platform
ONVIF
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
482 x 703 x 86.8 mm (19 x 28.25 x 3.41 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
10 SATA Ports
|
|
Included Licenses:
|
4 Wisenet WAVE Professional License
|
|
LED Indicator:
|
Status LED
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
788 Watts
|
|
Max. Incoming Bandwidth:
|
470Mbps
|
|
Max. Storage Capacity:
|
96 TB
|
|
Mounting:
|
Rack Mount
|
|
NDAA Compliance:
|
NDAA Compliant
|
|
Network Interface:
|
2x RJ-45 1000 Mbps Port
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
40 TB
|
|
Processor (CPU):
|
AMD EPYC Processor
|
|
Product Series:
|
Samsung Hanwha Wisenet WRR-Q-A201W Series
|
|
RAID:
|
RAID 0
RAID 1
RAID 5
RAID 6
|
|
RAM:
|
16GB
|
|
RAM Type:
|
DDR4
|
|
Rack Unit (U):
|
2U
|
|
Recorder Technology:
|
Video Server
|
|
SSD Capacity:
|
960GB
|
|
Serial Interface:
|
1x Serial Port
|
|
Special Recorder Features:
|
Wisenet WAVE Video Management System
|
|
USB Interface:
|
3x USB 3.0
2x USB 2.0
|
|
Video Output:
|
3x Mini DisplayPort
2x VGA
|
|
Warranty:
|
3-year Manufacturer Warranty
|
