Description

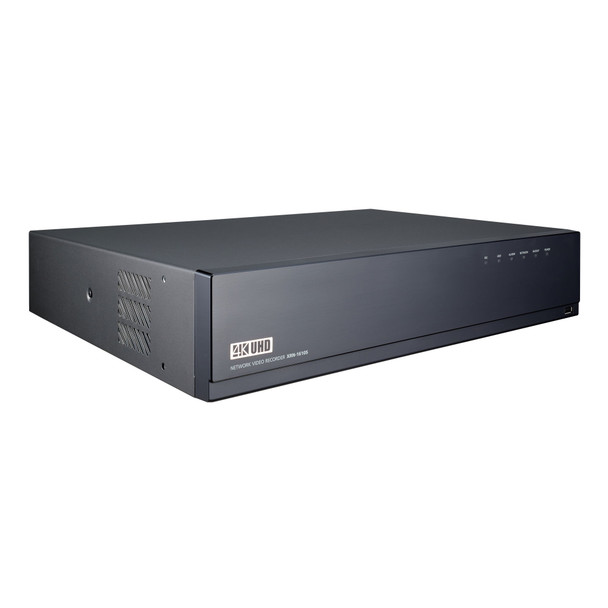

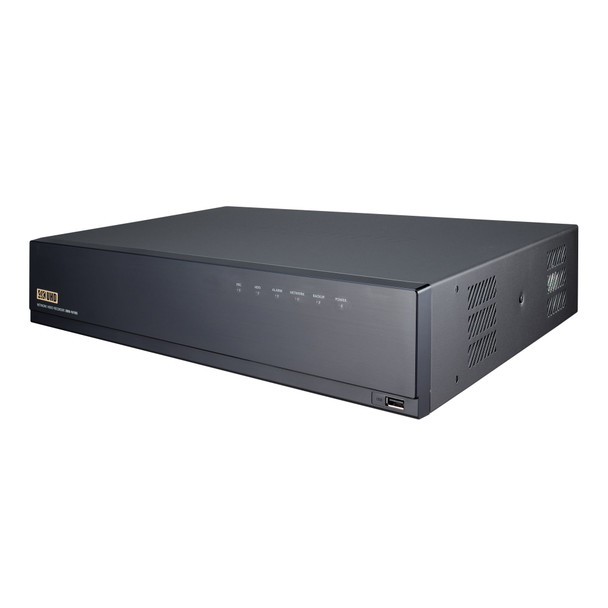

Samsung Hanwha XRN-1610SA-16TB 16 Channel 4K H.265 NVR with PoE Switch with 16TB HDD

The XRN-1610SA network video recorder supports 4K UHD resolution and up to 16 channels of video. Additional features include 12MP IP camera recording/display, 16 PoE/PoE+ ports, H.265/H.264/MJPEG streaming, auto-recovery backup, 4 fixed internal SATA HDDs (24TB max.), e-SATA/iSCSI storage, WiseStream compression technology, dual monitor output, hallway view support and fisheye dewarping on web and CMS, the XRN-1610SA is ideal for small to medium size applications that require high resolution recording, and the bandwidth reducing efficiency of H.265 compression and WiseStream technology. QR code/P2P Service for easy access with Wisenet Mobile App

Key Features:

  • Up to 16CH 12megapixel supported
  • 16TB HDD included
  • Max. 4HDDs, Up to 6TB each slot
  • e-SATA storage supported
  • H.265, H.264, MJPEG codec supported
  • WiseStream support
  • 180Mbps network camera recording
  • Plug & play
  • 1x HDMI / 1x VGA local monitor
  • P2P service (QR code connect) support
  • ONVIF
  • 16 PoE/PoE+ ports with 220W Budget
  • 2U
View AllClose

Specifications

Display
Network camera
InputsMax. 16CH
Resolution12MP ~ CIF
ProtocolsWisenet, ONVIF
Decoding
Local Display[Dual Display]
HDMI: 3840 x 2160, 1920x1080, 1280x720
VGA: 1920x1080, 1280x720
Resolution12MP(30fps), 8MP(120fps), 5MP(180fps), 3MP(240fps), 2MP(480fps), 720p(480fps), D1(480fps)
Performance
Record
CompressionH.265, H.264, MJPEG
Recording BandwidthMax. 180Mbps
Resolution12MP ~ CIF
ModeNormal, Schedule(Continuous/Event), Event (Pre/Post)
Event TriggerAlarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus)
Event Actione-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out
Search & Play
Playback BandwidthMax. 32Mbps(16CH simultaneously)
UserMax. 4 Users (Local 1, Remote 3)
Simultaneous playbackMax. 16CH(Local Monitor, Network)
Fisheye DewarpingWEB / CMS
Storage
Supported HDDUp to 6TB
HDD SlotSATA 4ea(Max. 24TB)
ExternaliSCSI storage(Max. 384TB)
Backup
File backupBU/Exe(GUI), JPG/AVI(Network)
FunctionMulti channel(Upto 16CH) Play, Date-Time/Title display
Network
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNSWisenet DDNS
Transmission BandwidthMax. 256Mbps (iSCSI off)
Max. 128Mbps (iSCSI on)
Audio
Input/Output16 CH(network)
CompressionG.711, G.726, AAC(16/48KHz)
Audio Communication2-Way
Max Remote UsersSearch(3), Live Unicast(10), Multicast(20)
SecurityIP address filtering, User access Log, 802.1x, Encryption
Web viewer
Supported OSWindow XP (Service pack 2 or above), Vista, 7, 8, 10, Mac OS X (10.7 or above)
Supported browserPlug-in free Webviewer
- Supported Browser : Google Chrome 47, MS Edge 20
- WMF : 1CH live (800 x 600), Setup
Plug-in Webviewer
- Supported Browser : MS Explore 11, Mozilla Firefox 43 , Apple Safari 9 * Mac OS X only
Viewer SoftwareSSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
Functions
Camera Setup
ItemIP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ
ControlVia GUI, Webviewer, SPC-2000
Smart phone
Support ModeliOS, Android
Protocol SupportRTP, RTSP, HTTP, CGI(SUNAPI)
ControlLive(Multi-Profile Support), Playback
Max. Remote UsersSearch(3), Live Unicast(10)
Redundancy
ARBSupport
Easy configurationP2P(QR code)

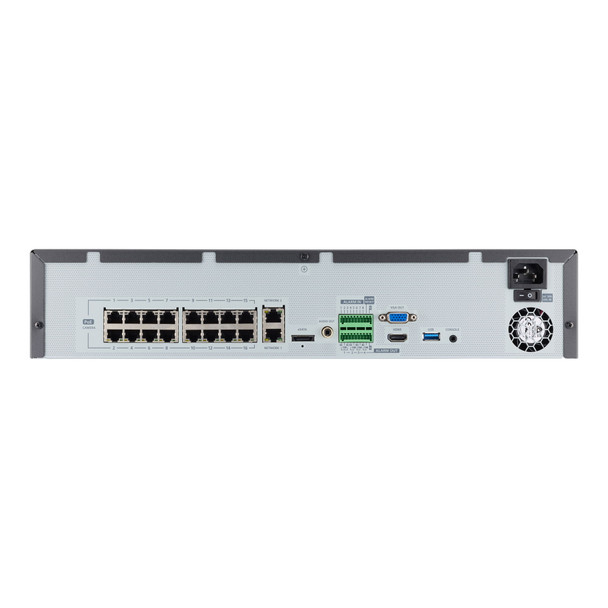

Interface
HDMI1EA
VGA1EA
e-SATA1EA
AudioOut(1EA, RCA, Line)
EthernetRJ-45(10/100/1000BASE-T) x 2
RJ-45(PoE+) x 16
AlarmIn 8EA, Out 4EA
USB2EA(Front 1, Rear 1)
Power inletAC 1EA
System
System ControlMouse, IR remocon, Web, Controller (SPC-2000)
LanguageEnglish, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
Environmental
Operating Temperature0°C to +40°C(32℉ to 104℉)
Operating Humidity20% ~ 85% RH
Electrical
Power Input100~240VAC±10%
Power ConsumptionMax. 271.9W (4 HDDs, PoE/PoE+ On)
Max. 51.9W (4 HDDs, PoE/PoE+ Off)
PoE BudgetMax. 220W
Mechanical
Color / MaterialBlack / Metal
Dimension (WxHxD)440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15") (2U)
Weight5.1Kg (11.24lb)
View AllClose

Additional Information

Recorder Technology:
Network Video Recorder (NVR)
Recorder Channel Capacity:
16 Channel
Color:
Black
Key Features:
ONVIF
Compression:
H.265
Compression:
MJPEG
Compression:
H.264
Pre-Installed Storage (Recorders):
16 TB
Product Type:
Recorders
