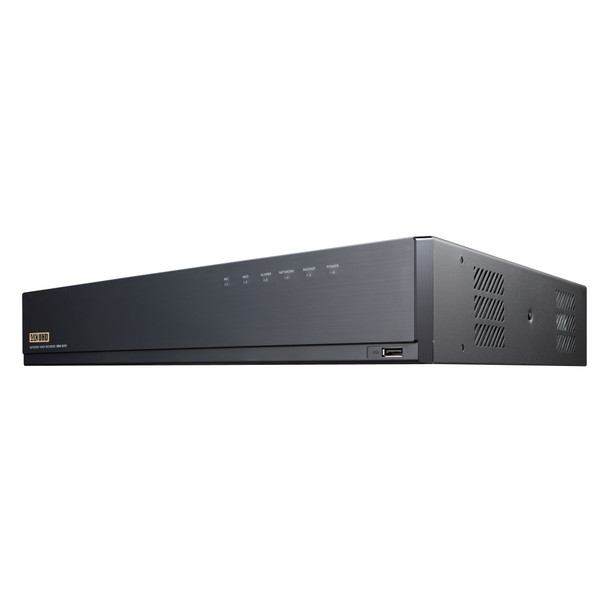

Samsung Hanwha XRN-1610SA-2TB 16 Channel 4K H.265 NVR with PoE Switch with 2TB HDD
- Compression : H.265, MJPEG, H.264,
- Pre-Installed Storage : 2 TB
- Video Output : 1x HDMI 1x VGA
- Hard Drive Ports : 4 SATA Ports
- Max. Storage Capacity : 24 TB Storage Capacity
- Color : Black
Description
Samsung Hanwha XRN-1610SA-2TB 16 Channel 4K H.265 NVR with PoE Switch with 2TB HDD
The XRN-1610SA network video recorder supports 4K UHD resolution and up to 16 channels of video. Additional features include 12MP IP camera recording/display, 16 PoE/PoE+ ports, H.265/H.264/MJPEG streaming, auto-recovery backup, 4 fixed internal SATA HDDs (24TB max.), e-SATA/iSCSI storage, WiseStream compression technology, dual monitor output, hallway view support and fisheye dewarping on web and CMS, the XRN-1610SA is ideal for small to medium size applications that require high resolution recording, and the bandwidth reducing efficiency of H.265 compression and WiseStream technology. QR code/P2P Service for easy access with Wisenet Mobile App
Key Features:
- Up to 16CH 12megapixel supported
- 2TB HDD included
- Max. 4HDDs, Up to 6TB each slot
- e-SATA storage supported
- H.265, H.264, MJPEG codec supported
- WiseStream support
- 180Mbps network camera recording
- Plug & play
- 1x HDMI / 1x VGA local monitor
- P2P service (QR code connect) support
- ONVIF
- 16 PoE/PoE+ ports with 220W Budget
- 2U
Specifications
Display | ||
---|---|---|
Network camera | ||
Inputs | Max. 16CH | |
Resolution | 12MP ~ CIF | |
Protocols | Wisenet, ONVIF | |
Decoding | ||
Local Display | [Dual Display] HDMI: 3840 x 2160, 1920x1080, 1280x720 VGA: 1920x1080, 1280x720 | |
Resolution | 12MP(30fps), 8MP(120fps), 5MP(180fps), 3MP(240fps), 2MP(480fps), 720p(480fps), D1(480fps) | |
Performance | ||
Record | ||
Compression | H.265, H.264, MJPEG | |
Recording Bandwidth | Max. 180Mbps | |
Resolution | 12MP ~ CIF | |
Mode | Normal, Schedule(Continuous/Event), Event (Pre/Post) | |
Event Trigger | Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus) | |
Event Action | e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
Search & Play | ||
Playback Bandwidth | Max. 32Mbps(16CH simultaneously) | |
User | Max. 4 Users (Local 1, Remote 3) | |
Simultaneous playback | Max. 16CH(Local Monitor, Network) | |
Fisheye Dewarping | WEB / CMS | |
Storage | ||
Supported HDD | Up to 6TB | |
HDD Slot | SATA 4ea(Max. 24TB) | |
External | iSCSI storage(Max. 384TB) | |
Backup | ||
File backup | BU/Exe(GUI), JPG/AVI(Network) | |
Function | Multi channel(Upto 16CH) Play, Date-Time/Title display | |
Network | ||
Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
DDNS | Wisenet DDNS | |
Transmission Bandwidth | Max. 256Mbps (iSCSI off) Max. 128Mbps (iSCSI on) | |
Audio | ||
Input/Output | 16 CH(network) | |
Compression | G.711, G.726, AAC(16/48KHz) | |
Audio Communication | 2-Way | |
Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
Security | IP address filtering, User access Log, 802.1x, Encryption | |
Web viewer | ||
Supported OS | Window XP (Service pack 2 or above), Vista, 7, 8, 10, Mac OS X (10.7 or above) | |
Supported browser | Plug-in free Webviewer - Supported Browser : Google Chrome 47, MS Edge 20 - WMF : 1CH live (800 x 600), Setup Plug-in Webviewer - Supported Browser : MS Explore 11, Mozilla Firefox 43 , Apple Safari 9 * Mac OS X only | |
Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS | |
Functions | ||
Camera Setup | ||
Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
PTZ | ||
Control | Via GUI, Webviewer, SPC-2000 | |
Smart phone | ||
Support Model | iOS, Android | |
Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
Control | Live(Multi-Profile Support), Playback | |
Max. Remote Users | Search(3), Live Unicast(10) | |
Redundancy | ||
ARB | Support | |
Easy configuration | P2P(QR code) | |
Interface | ||
HDMI | 1EA | |
VGA | 1EA | |
e-SATA | 1EA | |
Audio | Out(1EA, RCA, Line) | |
Ethernet | RJ-45(10/100/1000BASE-T) x 2 RJ-45(PoE+) x 16 | |
Alarm | In 8EA, Out 4EA | |
USB | 2EA(Front 1, Rear 1) | |
Power inlet | AC 1EA | |
System | ||
System Control | Mouse, IR remocon, Web, Controller (SPC-2000) | |
Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | |
Environmental | ||
Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
Operating Humidity | 20% ~ 85% RH | |
Electrical | ||
Power Input | 100~240VAC±10% | |
Power Consumption | Max. 271.9W (4 HDDs, PoE/PoE+ On) Max. 51.9W (4 HDDs, PoE/PoE+ Off) | |
PoE Budget | Max. 220W | |
Mechanical | ||
Color / Material | Black / Metal | |
Dimension (WxHxD) | 440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15") (2U) | |
Weight | 5.1Kg (11.24lb) |
Additional Information
4K Support: |
4K Supported
|
Channel Capacity: |
16 camera channels
|
Color: |
Black
|
Compression: |
H.265
MJPEG
H.264
|
Hard Drive Ports: |
4 SATA Ports
|
Max. Storage Capacity: |
24 TB
|
Pre-Installed Storage: |
2 TB
|
Rack Unit (U): |
2U
|
Recorder Technology: |
Network Video Recorder (NVR)
|
Video Output: |
1x HDMI
1x VGA
|
Warranty: |
3-year Manufacturer Warranty
|
e-SATA: |
|
