Description

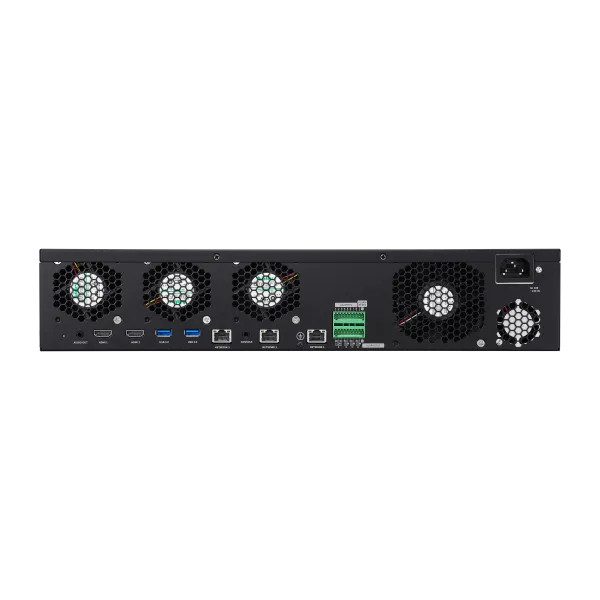

Samsung Hanwha XRN-3210B2-24TB 32 Channel 4K 400Mbps H265 Network Video Recorder, 24TB HDD
Key Features:
- Up to 32 channels, Supports up to 32 megapixel camera resolution
- 400Mbps network camera recording
- Support 4K video out on HDMI monitor
- Support dual monitor video out
- H.265, H.264, MJPEG compression
- WiseStream support
- Maximum 8 internal HDDs
- Plugin-free web UI
- ARB & failover(N+1), dynamic event, Wisenet AI metadata search support
Downloads
Additional Information
|
4K Support:
|
4K Supported
|
|
Alarm Input:
|
8 Channel
|
|
Alarm Output:
|
4 Channel
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
G.726
AAC
|
|
Audio Output:
|
1x 3.5mm
|
|
Capacity for each disk:
|
up to 10TB
|
|
Certifications:
|
UL Listed
|
|
Channel Capacity:
|
32 Channels
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
SUNAPI
ONVIF
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
438 x 86 x 434.9 mm (17.24 x 3.38 x 17.12 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
8 SATA Ports
|
|
LED Indicator:
|
Status LED
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
138 Watts
|
|
Max. Incoming Bandwidth:
|
400Mbps
|
|
Max. Recording Resolution:
|
32MP
|
|
Max. Storage Capacity:
|
80 TB
|
|
Mobile Apps:
|
iOS
Android
Wisenet Mobile
|
|
Mounting:
|
Standalone
|
|
Network Interface:
|
3x RJ-45 10/100/1000 Mbps
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
24 TB
|
|
Product Series:
|
Samsung Hanwha Wisenet X Series
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
Remote Users:
|
Up to 32
|
|
Special Recorder Features:
|
AI Search Support
Fisheye Dewarp
Wisenet WAVE
|
|
Synchronous Playback:
|
80 Channel
|
|
USB Interface:
|
2x USB 2.0
2x USB 3.0
|
|
Video Output:
|
2x HDMI
|
|
Warranty:
|
3-year Manufacturer Warranty
|
