Description
 |  |
 |  |

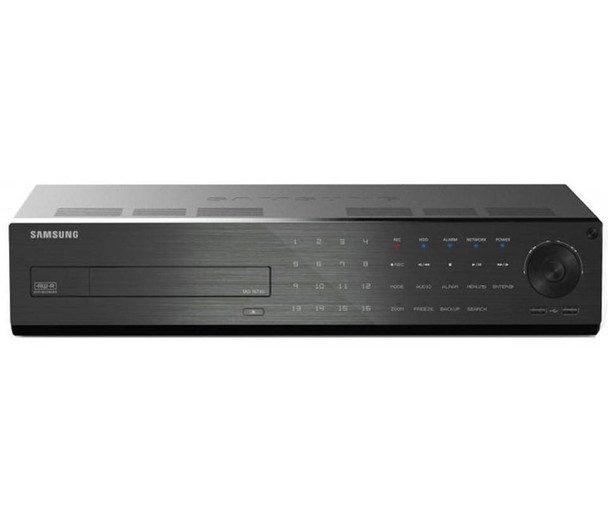

Samsung Techwin SRD-1656D-1TB 16-channel 1000TVL H.264 Digital Video Recorder
The Samsung SRD-1656D-1TB 16CH 4CIF Real-time H.264 Digital Video Recorder offers many familiar features but combines them with new technologies for a reliable video recording solution. This DVR adds a Full HD 1080p video out via HDMI, compatibility with 1000TV lines analog cameras, and a sleek touch sensitive front panel to its list of incredible features. Plus, all 16 channels can simultaneously record and play videos at a maximum resolution of 960 x 480 at 30/25 frames per second.
Amazingly, this digital video recorder can support up to 4 internal HDDs for maximum video storage capacity. With an Enhanced Network Bandwidth up to 32Mbps, it is optimized for robust remote access to recordings at high resolutions. Other great features include a Coaxitron support, smart searching, tampering detection, and smart phone support (Android/iOS). The Samsung SRD-1656D-1TB 16CH 4CIF Real-time H.264 Digital Video Recorder makes an ideal addition to any top-notch surveillance system.
Key Features of Samsung Techwin SRD-1656D-1TB
- 16CH CIF real-time DVR - Up to 480(N) / 400(P)fps recording rate
- Easy user interface, common across all Samsung DVRs - GUI / Search / Back up / Set-up
- Set independently for each channel - REC / Quality / Resolution
- Privacy mask support for each channel (4ea)
- Convenient with strong network monitoring - CMS (SSM, SmartViewer, Net-I), Web viewer, Smart phones (iPOLiS mobile)
- Accurate still image (De-Interlace support each channel)
- VGA / HDMI for Full-HD (1080p) resolution video out
- Max. 4 internal HDDs
- Digital video spot (2ea), USB (2ports) back up
- Up to 16CH audio inputs / 1CH audio output
- Enhanced Network Bandwidth up to 32Mbps
- Accurate still image (De-Interlace support each channel)
- Weight: 14.61 lb
This product is also associated with:
Samsung Hanwha
Downloads
Datasheet
samsung-SRD-1656D_Specifications-A1.pdf
Popular Search
Additional Information
|
Channel Capacity:
|
16 Channels
|
|
Hard Drive Ports:
|
4 SATA Ports
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Pre-Installed Storage:
|
1 TB
|
|
Recorder Technology:
|
Digital Video Recorder (DVR)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
