Description

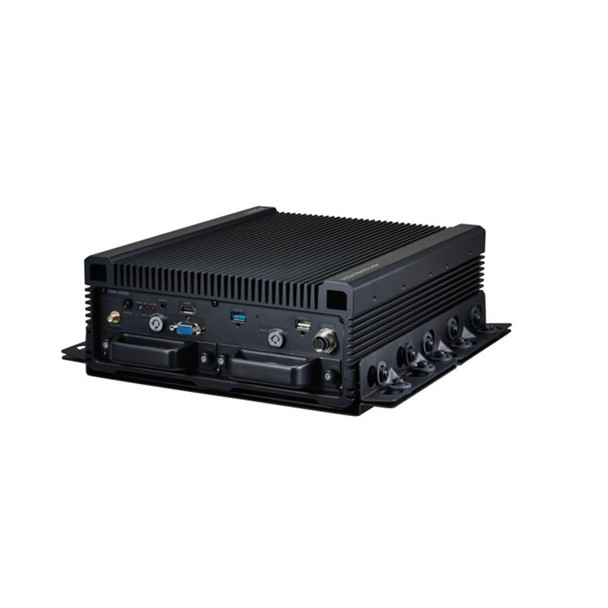

Samsung TRM-1610M 16CH 12M H.265 Mobile NVR
Mobile NVR, no HDD, 16 Channel PoE (only 4 PoE ports (M12) is included with the TRM), PoE budget 32W, 4x M12 D-Code, 128Mbps recording throughput, triple codec support H.265, H.264, MJPEG, HDMI/VGA support, SUNAPI support, ONVIF, and RTSP streams, RAID-1 support, 9 - 36VDC Input. Standard Includes GPS Module, Control Box, I/O Box, built-in Wi-Fi, fan less design, -40°F ~ +158°F (using industrial SSD drives), Ttwo PoE switches SPN-10080PM (8 CH PoE with M12) x2 are needed to use all 16 channels
Key features:
- Up to 16CH 12megapixel supported
- H.265, H.264, MJPEG codec supported
- Max. 128Mbps recording
- Plug & play by 4 PoE / PoE+ ports
- M12 connector
- 2 SATA (Front-swap)
- -Max. 2TB (HDD, Non-RAID mode)
- -Max. 4TB (SSD, Non-RAID mode)
- RAID 1 support
Downloads
Popular Search
Additional Information
|
Channel Capacity:
|
16 Channels
|
|
Compression:
|
MJPEG
H.264
H.265
|
|
Hard Drive Ports:
|
2 SATA Ports
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Max. Incoming Bandwidth:
|
128Mbps
|
|
Max. Recording Resolution:
|
12MP (4K)
|
|
Pre-Installed Storage:
|
4 TB
|
|
Product Series:
|
Samsung Hanwha Wisenet T Series
|
|
RAID:
|
RAID 1
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
Storage Options:
|
4TB Storage
|
|
Warranty:
|
3-year Manufacturer Warranty
|
