SecurityTronix ST-ALLIN1-TEST2 7" Touchscreen Camera Installation & Network Troubleshooting Tool

(No reviews yet) Write a Review
SKU:
ST-ALLIN1-TEST2
$795.00
Free Shipping
Frequently bought together:

Description

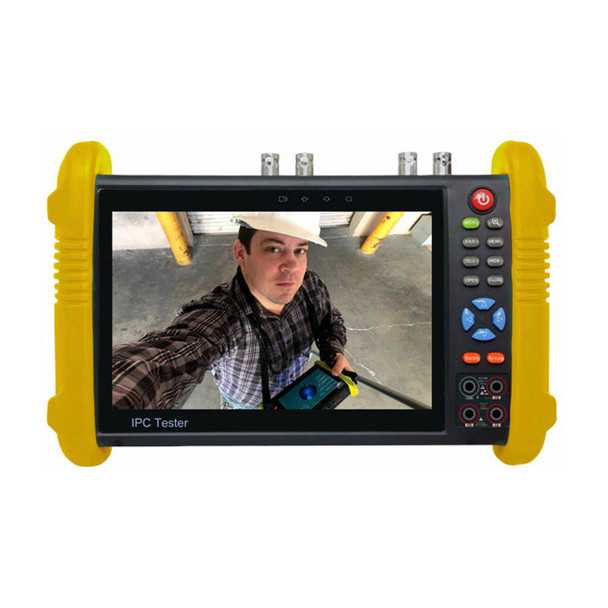

ST-ALLIN1-TEST2 7" Touchscreen Camera Installation & Network Troubleshooting Tool

The 7 inch touch screen IP camera monitor and tester is designed for maintenance and installation of IP cameras, HD over Coax cameras (TVI, CVI, SDI, AHD), and analog cameras as well as other security equipment. The 1280 x 800 resolution enables the unit to display HD cameras and analog cameras in high resolution. The unit supports many HD over Coax PTZ, ONVIF PTZ and analog PTZ controls. The tester is also a great tool for Ethernet network testing. It can test PoE power voltage, perform PING tests and IP address scanning. You can use the blue cable tester to check the termination and cable type of network cables. Other functions include providing 24W PoE power to your IP camera, an LED Flashlight, 12VDC 2A power output and much more. Its portability, userfriendly design and many other functions make the IP BUDDY+ ALL IN 1 an essential tool for all installers or technicians.

Key Features:

  •  Easily aim and focus your camera at the camera
  •  View IP, TVI, SDI, CVI, AHD & Analog cameras
  •  HDMI Input & HDMI output
  •  H.264 / H.265
  •  IP Camera discovery
  •  IP address scanning
  •  ONVIF 2.4 & RTSP compatible
  •  PoE and 12VDC 2A power outputs supply power directly to cameras
  •  Built-in WiFi
  •  Built-in web browser
  •  CoC (Control over Coax)
  •  PTZ Control: pan, tilt & zoom, focus adjustment
  •  Supports Pelco D/P
  •  Video record and playback, camera image snapshot
  •  PTZ Data Monitor: Control protocol commands are displayed to check RS485 transmission
  •  8GB Micro SD card (included)
  •  Enhanced PAL/NTSC color bar generator
  •  Ping testing, port flashing
  •  PoE switch voltage testing
  •  Cat5 Continuity testing
  •  Cable search
  •  2 Year limited warranty
