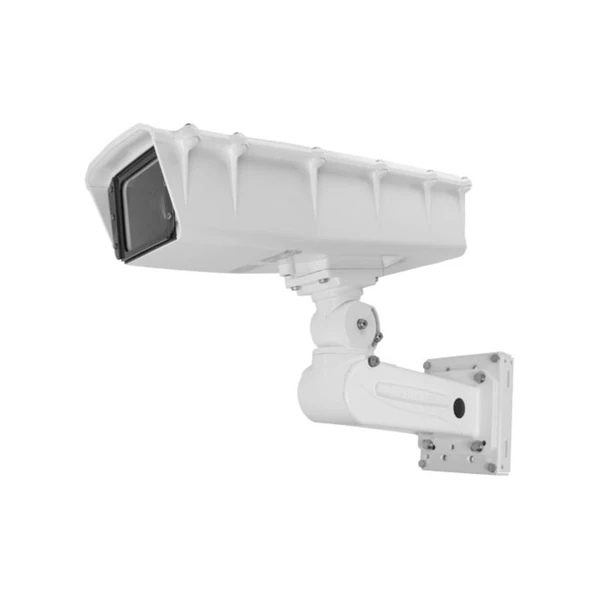

Sony UNI-E2DG8 Security Enclosure for SNC-VB770 camera

Brand: Sony
Part Number: UNI-E2DG8
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Discontinued
$1,231.62
Free shipping over $300 Free Shipping
Technical Support Technical Support

Customers Also Viewed

Discontinued
Sony SNC-EP520 SD Indoor PTZ IP Security Camera - 36x Optical Zoom, 1/4" CCD Sensor, H.264

Sony SNC-EP520 SD Indoor PTZ IP Security Camera - 36x Optical Zoom, 1/4" CCD Sensor, H.264

Brand: Sony

Part Number: SNC-EP520
$1,757.00
$1,305.25
  • Compression : H.264, MJPEG, MPEG4,
  • Field of View (Horizontal) : 57°Field of View
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 3.4~122.4mm Lens
  • Sensor Type : CCD
  • Sensor Size : 1/4" Sensor
  • Color : White
  • Environmental : Indoor
  • Sensor Size : 1/4"
Free shipping over $300 Free Shipping
Network (IP) Network (IP)
720 x 480 720 x 480
White White

Description

Sony UNI-E2DG8 Security Enclosure for SNC-VB770 camera

The UNI-E2DG8 is an all-weather security enclosure for use with the Sony SNC-VB770 4K network camera. Suitable for outdoor use, this vandal resistant fixed camera housing features an integral heater and blower for operation in harsh environments with temperatures ranging from -32°C to 46°C. Designed to NEMA type 4x standards, the UNI-E2DG8 is IP66 rated for effective moisture and dirt ingress protection, with a sealed clear glass window for superior optical performance. The housing is constructed from tough molded white polycarbonate, with a powder coated white aluminum wall mount arm and a white pole mounting bracket. Ethernet and power interconnects are provided, with cable interconnects conveniently accessible via a hinged door on the wall-mount arm for ease of installation. The enclosure also includes a pole-mount adaptor as a standard accessory (straps not included).

Key Features:

  • This outdoor, vandal resistant fixed camera housing is designed for use with the SNC-VB770 4K video network camera.
  • The blower runs continuously, providing airflow to keep the camera cool and the window virtually fog-free. The heater automatically activates at 4.4°C and deactivates at 25°C, with a thermal cut-off switch assuring safe heating operation.
  • Cable interconnects are readily accessible via the hinged door of the wall-mount arm for ease of installation. Ethernet and power interconnects are provided: pre-installed Ethernet cable and power input cabling allows all connections to be performed easily inside the wall-mount arm. Centre-fed cable runs through the wall-mount arm allow a clean, protected install.
  • The enclosure can operate with a power input of 110VAC or 220 VAC 50/60Hz. A camera ouput of 24VAC or 12VDC is provided.

Additional Information

Accessory Type:
Housing Enclosure
