Sony UNIBBB1 Wall/Pole Mount Connection Box - Aluminum, w/ Pole Mount Adaptor

Sony UNIBBB1 Wall/Pole Mount Connection Box

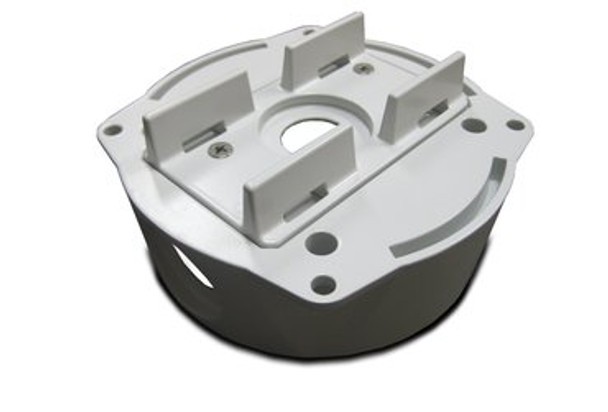

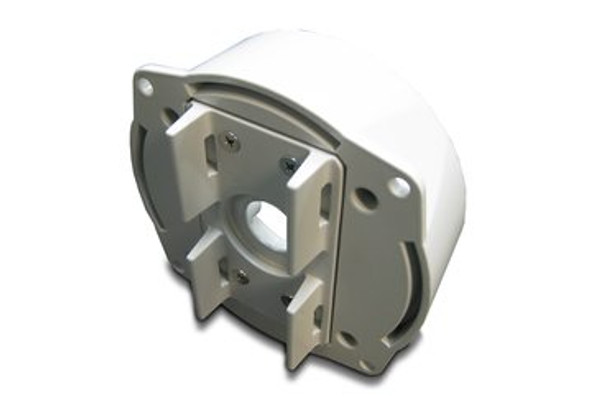

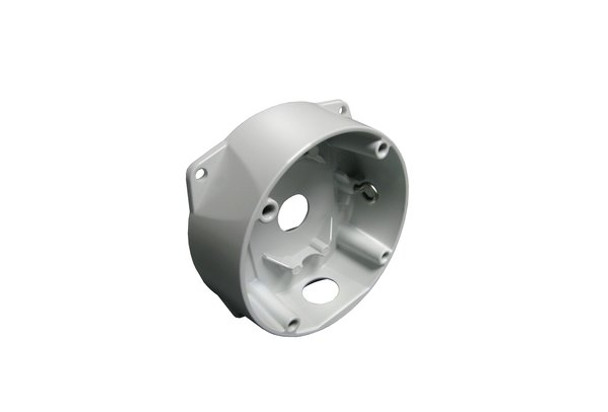

The UNI-BBB1 is a cast aluminum adaptor that serves as an electrical connection box that is designed to be used with the Sony camera models identified above. The connection box can be mounted to a pole with the included steel pole straps or to a flat wall. The UNI-BBB1 also features knockouts that allow mounting to a standard double gang electrical box. The ¾″ (27mm) conduit openings are provided in the back and bottom to facilitate wiring connections.

Aluminum back box with pole mount adaptor for the SNC-CH180, CH160, CH280, CH260, EB602R, EB632R, VB632D

Key features of Sony UNIBBB1

• Mounts to poles 3 - 6 inches in diameter,with included pole mount and (2) two straps.
• Conduit holes are suitable for a ¾ inch conduit fitting that are provided on the back and bottom of the adapter.
• Knockouts allow mating to a double gang electrical box.
• Threaded bolt inserts make installation quick and easy.
• Durable powdercoat finish.
• All aluminum construction.
• 25 lb. load rating.

Compatible with:

• Sony outdoor HD bullet cameras with IR: SNC CH160/180/260/280.
• Sony HD indoor fixed mini dome cameras: SNC DH120/140/220/240.
• Sony HD vandal resistant cameras: SNC DH120T/140T/220T/240T.
• Sony HD hybrid mini dome cameras: SNC ZM550/551.
• Sony SD compatible mini dome cameras: SNC EM521 and SNC DS10.
