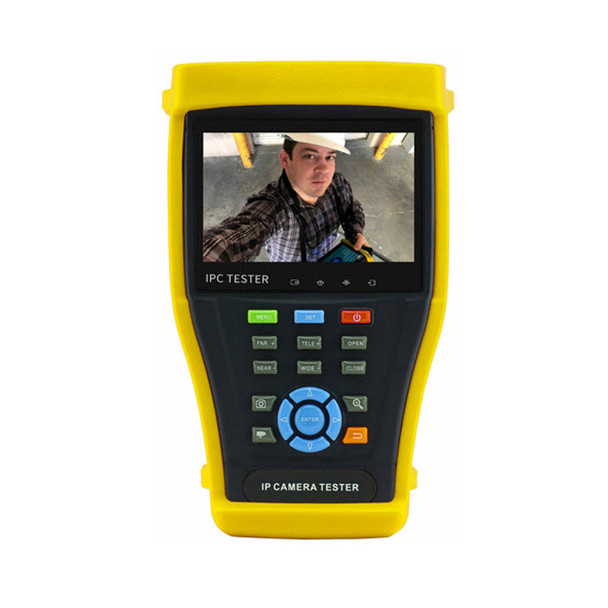

ST-HDoC-TEST-MINI2 4.3" Touch Screen Test Meter For Analog, IP, HD-TVI, HD-CVI & AHD Cameras

ST-HDoC-TEST-MINI2 4.3" Touch Screen Test Meter For Analog, IP, HD-TVI, HD-CVI & AHD Cameras

The ST-HDoC-TEST-MINI2 is a 4.3 inch IP camera tester with an 960 x 540 capacitive touch screen designed for the installation of analog, IP, HD-TVI, HD-CVI & AHD cameras. With an ONVIF PTZ controller this meter supports more than 40 customized IP camera protocols, mobile apps to view IP camera images and contains built-in WiFi to receive network images and data. The FTP Server, Static IP address, DHCP, simultaneously test different segments of IP cameras along with network bandwidth testing. The PoE 24W power supply can power IP cameras and test PoE voltage while the DC12V2A power output will power most analog cameras. The HDMI signal output supports 1080p. Additional features include USB 5V 2A power output to mobile phones, PoE port finder, link monitoring, IP camera ping testing, IP address scan and a BNC input & output. Both IP and analog images can be zoomed in up to four times. The meter supports snapshot, video recording and playback. It includes 8GB SD card, NTSC/ PAL auto-selection, analog PTZ control, preset settings, UTP cable testing, PTZ data analysis, RS485 communication address scan and audio input testing. The 7.4V DC 5000mAh lithium polymer battery can power the unit for up to 16 hours after charging for seven hours.

Key features:

•  Perfect for testing analog, IP, HD-TVI, HD-CVI & AHD cameras
•  4.3 inch LCD touch screen display with 960 x 540 resolution
•  Displays ONVIF IP camera image, ONVIF PTZ controller
•  H.264 / H.265
•  Supports IP up to 12MP, TVI & CVI up to 8MP (4K) and AHD up to 5MP
•  RJ45 TDR testing
•  Capable of simultaneous IP and analog camera testing
•  Supports more than 40 customized IP cameras protocols
•  Supports mobile apps to view IP camera images
•  Built-in WiFi to receive network image and data
•  WiFi Access point
•  Network bandwidth testing
•  FTP Server, Static IP address, DHCP, simultaneously test different segments IP cameras
•  PoE 24W power supply to IP camera
•  HDMI input and HDMI output
•  Led Lamp, easy to operate at night
•  Removable 8 GB Micro SD card
•  LCD screen brightness/contrast/color saturation control
•  Automatically adapts and displays NTSC or PAL video formats
•  4x zoom to magnify video for detailed viewing (only for analog video test)
•  Video record and playback (only for analog video test)
•  Snapshot and save images as JPG files in the SD card (only for analog video test)
•  PING testing, test IP cameras or network devices' via ethernet port for IP address and link confirmation
•  IP address scan, quickly search for connected IP cameras and other network devices
•  Device Port flashing, easily find connected PoE switch ports by sending a signal to flash the connected PoE port
•  Enhanced color bar generator
•  PoE voltage measurement, test the PoE switch's voltage
•  DC12V 2A power output for cameras
•  USB 5V 2A power output to mobile phone
•  Link monitor, check the IP address for occupation
•  PTZ address scan, search for the ID of PTZ cameras
•  Network cable and telephone cable testing, display the sequence of connection
•  Supports RS232/RS485/RS422, 600 - 115200bps adjustable
•  Supports more than thirty PTZ protocols such as PELCO-P, PELCO-D, SAMSUNG etc.
•  PTZ protocol analysis, control protocol command displays to check RS485 transmission
•  PTZ control, Pan/tilt PTZ units, zooms lens in/out, adjusts the focus, aperture and sets the position
•  Audio input test, test the audio signal from pickup devices
