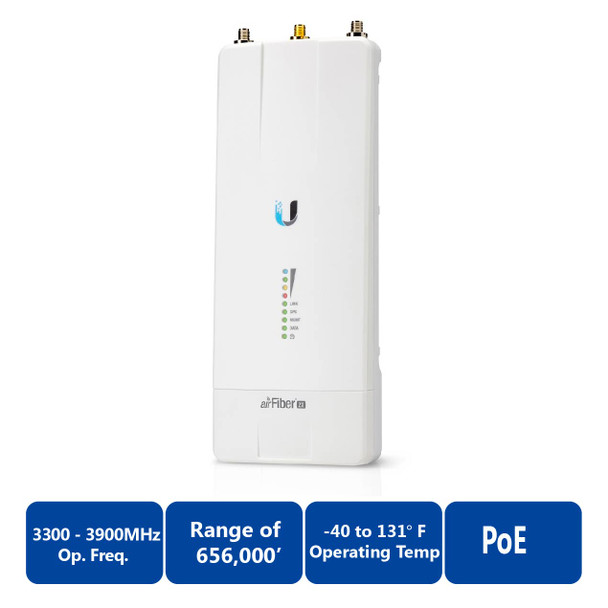

Ubiquiti AF-3X-US airFiber 500Mbps+ Backhaul, 3GHz, US Version

Ubiquiti AF-3X-US airFiber 500Mbps+ Backhaul, 3GHz US

The airFiber 3X is a wireless point-to-point backhaul radio that uses proprietary Hybrid Division Duplexing technology to achieve the highest TDD throughput available for long-range PtP links. Using Ubiquiti's INVICTUS architecture, the 3GHz frequency band is free to use and great for outdoor wireless applications. Innovative radio designs cut down on broadband noise, allowing for easier use of high-order modulations. These radios are designed to be used side-by-side/co-located.

Ubiquiti Suffix Explanation: if a Ubiquiti product has a -US suffix at the end it means that it follows FCC regulations and is locked into their frequencies. It will only work on channels approved by the FCC. Products without the -US suffix can be used anywhere, but do be sure to understand the legal issues if you are inside the U.S. and trying to use non-approved channels with a non-US product.

Key Features:

• Operating Frequency: 3300-3900MHz
• Max range of 656,000'
• 128-bit AES Encryption
• Co-Location/Side-by-Side Usage
• Dimensions: 8.9 x 3.2 x 1.9 (224 x 82 x 48 mm)
• Weight: 0.77 lb (0.35 kg)
• Max. Power Consumption: 17W
• Power Supply: 24V 1A PoE GigE Adapter (Included)
• Power Method: Passive Power over Ethernet (42-58VDC)
• Operating Temperature: -40 to 131° F (-40 to 55°C)
• Rocket Mount Compatible, GPS Pole Mount (Included)
• 2x RP-SMA Weatherproof
• 1x SMA Weatherproof (GPS)
