Wireless Access Point

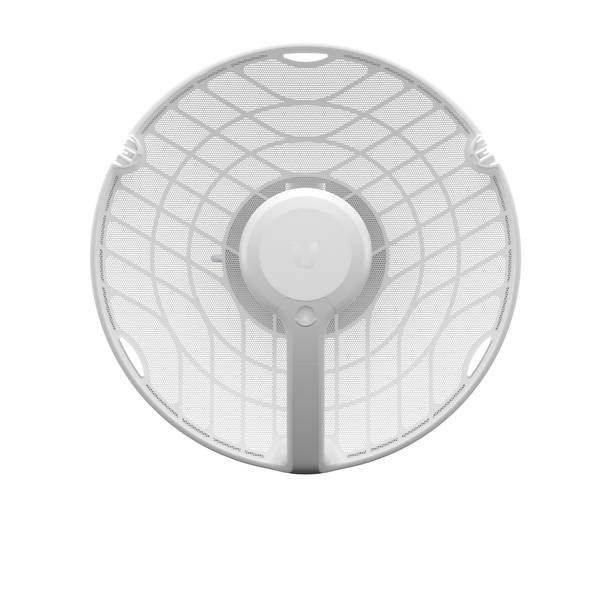

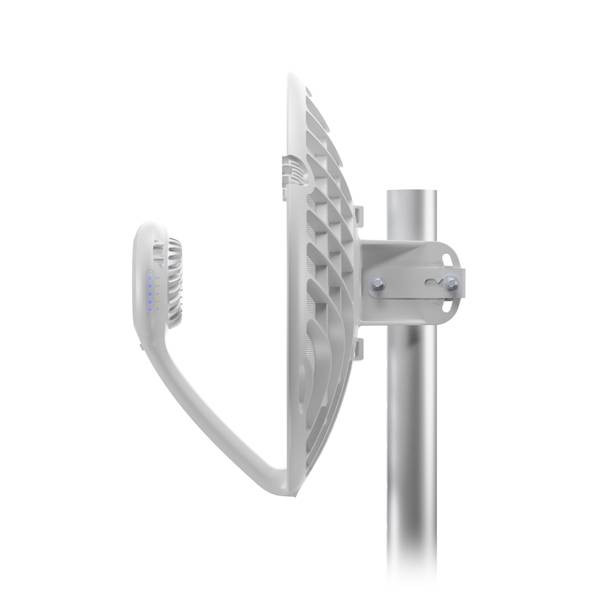

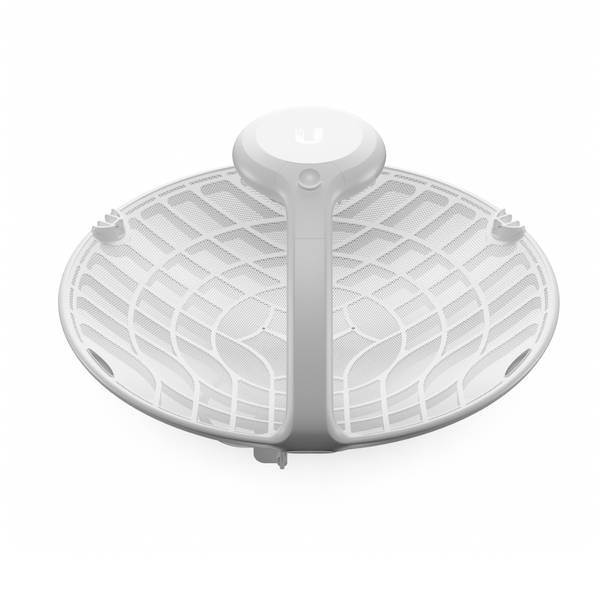

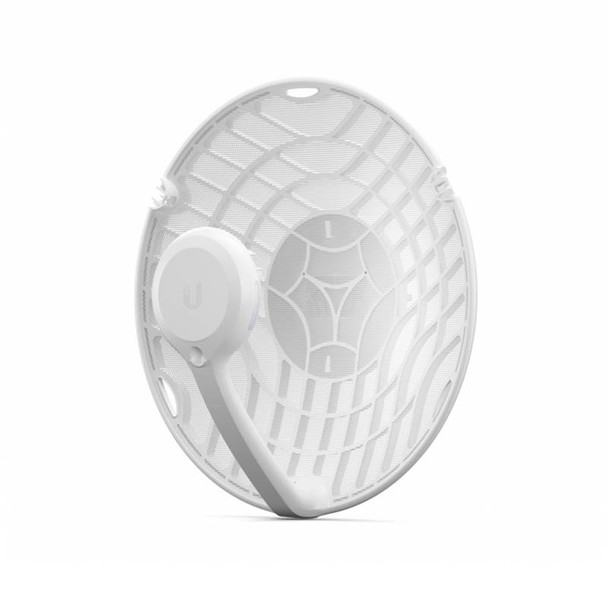

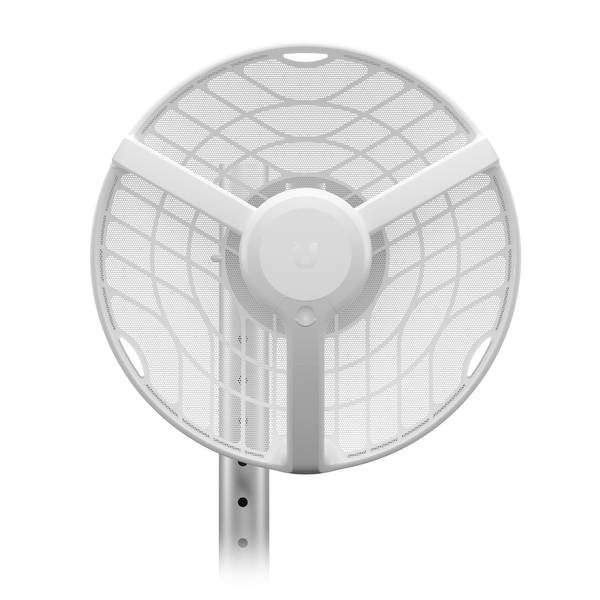

airFiber 60GHz/5GHz Radio System with 1+Gbps Throughput
AF60 is a 60GHz radio for low-interference and high-throughput connectivity. It's integrated with a high-gain dish antenna for long range and high performance. For the 60GHz link, the AF60 supports two channel width options: 2GHz and 1GHz – automatically switching between both options depending on link performance.
| Dimensions | 413 x 413 x 320 mm (16.26 x 16.26 x 12.60") |
| Weight Without Mount With Mount | 1.4 kg (3.09 lb) 1.8 kg (3.97 lb) |
| Enclosure | Aluminum, UV-stabilized Polycarbonate |
| Antenna Gain 5 GHz 60 GHz | 11 dBi 38 dBi |
| Networking Interface | (1) 10/100/1000 Mbps Ethernet Port |
| Max. Power Consumption | 11W |
| Power Method | Passive PoE, Pins 4, 5+ and 7, 8- |
| Power Supply | 24VDC, 0.5A Gigabit PoE Adapter (Included) |
| Voltage Range | +22 to +26VDC |
| LEDs | Power/Ethernet/5G/60G/GPS |
| Mounting | Pole Mount (Included) |
| Wind Loading | 420 N @ 200 km/h (94.4 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | ± 24kV Contact/Air |
| Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, IC, CE |
| SYSTEM | |
|---|---|
| Maximum Throughput | 1.8 Gbps |
| Maximum Range | 2+ km |
| Encryption | WPA2-PSK (AES)/WPA2 Enterprise |
| OS | airOS GP |
| RADIO | |
| Max. Conducted TX Power 5/60 GHz Combined | 25 dBm |
| Channel Bandwidth 60 GHz 5 GHz | 2160 MHz 20/40/80 MHz |
| OPERATING FREQUENCY (MHZ) | |
| US/CA U-NII-1 U-NII-3 | 5150 – 5250 5725 – 5850 57,000 – 66,000 |
| Worldwide | 5180 - 5875 57,000 - 66,000 |
| MANAGEMENT RADIO (MHZ) | |
| Worldwide | 2412 - 2472 |
| US/CA | 2412 - 2462 |
|
Compliance:
|
NDAA Compliant
|
|
Product Series:
|
Ubiquiti airFiber Series
|
|
Warranty:
|
1-year Manufacturer Warranty
|
