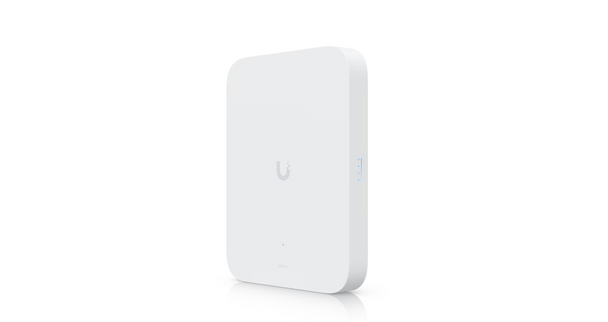

Ubiquiti U5G-MAX-OUTDOOR 5G Outdoor Modem

Ubiquiti U5G-MAX-OUTDOOR 5G Outdoor Modem

The Ubiquiti U5G-MAX-OUTDOOR is a full-performance outdoor 5G modem delivering up to 3.4 Gbps downlink (5G NSA) for UniFi consoles and Cloud Gateways. Certified with AT&T, T-Mobile, and Verizon, it supports both 5G NR and 4G LTE across an extensive range of frequency bands, including Sub-6GHz and CBRS spectrum. Six embedded cellular antennas — including two high-gain downlink antennas at peak 9 dBi — maximize signal capture in outdoor environments.

The U5G-MAX-OUTDOOR supports dual SIM (one Nano SIM + one Nano SIM or eSIM) for seamless carrier failover, along with remote SIM capability. Powered via PoE and housed in an aluminum-alloy and UV-stabilized polycarbonate enclosure rated IPX6, it withstands outdoor deployment in extreme conditions from -40°C to 65°C. Pole and wall mounts are included, supporting 1–2.5" pipe diameters. The device is NDAA compliant and certified by FCC, IC, CE, PTCRB, and GCF.

Key Features:

• 3.4 Gbps downlink (5G NSA) with AT&T, T-Mobile, and Verizon certification; delivers carrier-grade 5G performance for primary or backup WAN connectivity.
• Dual SIM (Nano SIM + Nano SIM/eSIM) with remote SIM support; enables seamless carrier failover and flexible SIM management without physical access.
• 6 embedded cellular antennas including 2 high-gain downlink antennas (peak 9 dBi, 85°×85°); maximizes signal performance in outdoor deployments.
• Supports 5G NR, 4G LTE, and 3G UMTS across extensive frequency bands including n77, n78, B41, B48, B66, and more; broad spectrum compatibility for diverse carrier environments.
• PoE powered, IPX6 weatherproofing, -40 to 65°C operating range; fully outdoor-rated for permanent installation in harsh environments.
• Included pole and wall mount adapters (1–2.5" pipe support); provides flexible mounting without additional hardware for most standard installations.
• NDAA compliant, FCC/IC/CE/PTCRB/GCF certified; meets federal procurement requirements and international regulatory standards.
