Ubiquiti U7-PRO-XGS WiFi 7 Access Point

Ubiquiti U7-PRO-XGS WiFi 7 Access Point

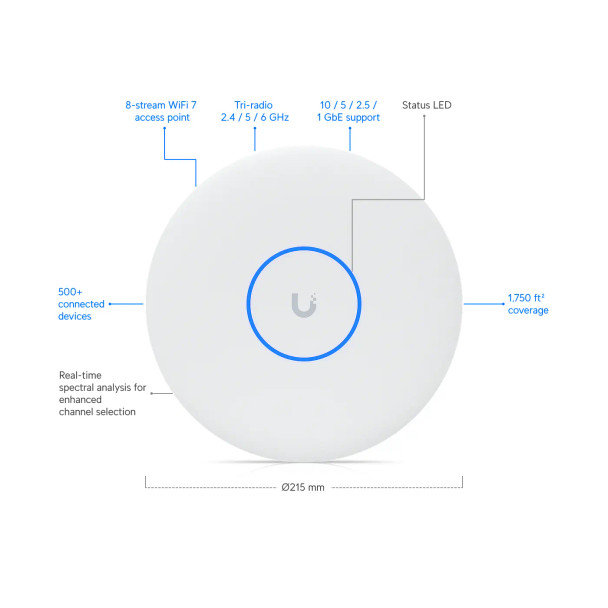

The Ubiquiti U7-PRO-XGS is a ceiling-mounted 8-stream WiFi 7 access point featuring a dedicated spectral scanning radio and a 10 GbE uplink. Supporting IEEE 802.11be across 6 GHz (2x2 MU-MIMO), 5 GHz (4x4 MU-MIMO), and 2.4 GHz (2x2 MU-MIMO), it delivers up to 8.6 Gbps on 5 GHz (BW240) and 5.8 Gbps on 6 GHz (BW320), with coverage for 500+ concurrent clients across 1,750 ft² (160 m²). The dedicated spectral scanning radio enables real-time RF environment monitoring without impacting client-serving radios.

Powered via PoE++ (42.5–57V DC, 29W max) and managed through UniFi Network (v9.0.114+), the U7-PRO-XGS supports Zero-Wait DFS, band steering, fast roaming (802.11r/k/v), real-time spectral analysis, RADIUS over TLS (RadSec), and Passpoint (Hotspot 2.0). A Lite Mount is included for ceiling and wall installation. The device is NDAA compliant and certified by FCC, CE, and IC.

Key Features:

• WiFi 7 (802.11be) tri-band with dedicated spectral scanning radio; enables continuous RF monitoring without sacrificing client-serving radio capacity.
• 4x4 MU-MIMO on 5 GHz (up to 8.6 Gbps BW240) and 2x2 on 6 GHz (up to 5.8 Gbps BW320); delivers high-throughput performance across the most spectrum-rich bands.
• 10 GbE uplink (10/5/2.5/1 GbE); future-proof connectivity that supports full multi-gigabit backhaul for high-density deployments.
• 500+ client capacity, 160 m² (1,750 ft²) coverage; suitable for enterprise offices, classrooms, and mid-size hospitality environments.
• Zero-Wait DFS, 802.11r/k/v roaming, RADIUS over TLS, Passpoint (Hotspot 2.0); comprehensive enterprise wireless feature set.
• PoE++ powered (42.5–57V DC, 29W max), Lite Mount included for ceiling/wall; clean single-cable installation with included hardware.
• NDAA compliant, FCC/CE/IC certified; meets U.S. federal procurement requirements and international regulatory standards.
