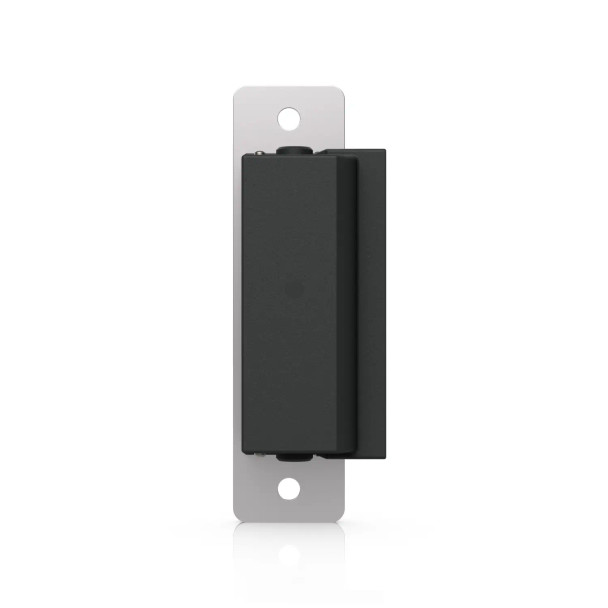

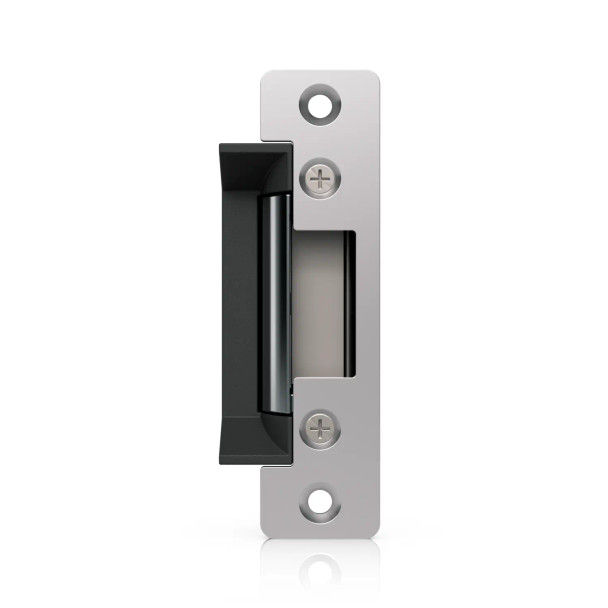

Ubiquiti UACC-LOCK-STRIKE-SAFE-15MM Fail-Safe Electric Strike Lock

Ubiquiti UACC-LOCK-STRIKE-SAFE-15MM Fail-Safe Electric Strike Lock

The Ubiquiti UACC-LOCK-STRIKE-SAFE-15MM is a fail-safe electric strike lock designed to connect to a UniFi Access Hub for complete door control integration. With a 1,200 kg (2,645 lb) holding force and fail-safe operation, the lock releases when power is removed — making it suitable for emergency egress compliance in applications where doors must open during a power failure. It supports single wooden or metal doors with door frame recess mounting and includes both short and long front plates for compatibility with different door frame sizes.

Powered at 12V DC with a 400mA current draw, it features a built-in dry contact door position sensor (DPS) for real-time door status monitoring. The lock body is constructed from zinc alloy with stainless steel front plates and latches. Operating temperature range is -10 to 60°C and the device is NDAA compliant with FCC, CE, and IC certifications.

Key Features:

• Fail-safe operation; door releases on power loss for emergency egress compliance in life-safety access control applications.
• 1,200 kg (2,645 lb) holding force; provides secure door retention under normal powered operation.
• Door position sensor (DPS) with dry contact output; enables real-time door open/close status monitoring through the UniFi Access Hub.
• Includes short (124mm) and long (202mm) front plates; accommodates different door frame sizes without additional hardware.
• 12V DC, 400mA ±10%; compatible with UniFi Access Hub power output for single-cable door hardware integration.
• Zinc alloy lock body with stainless steel front plate and latches; durable construction for long-term performance in daily-use door hardware applications.
• NDAA compliant, FCC/CE/IC certified; meets U.S. federal procurement requirements for access control hardware.
