Ubiquiti NSM5(US) NanoStation M 5GHz Outdoor Wireless Bridge, 150 Mbps Throughput, 9+ miles Range - NSM5-US
- Environmental : Outdoor

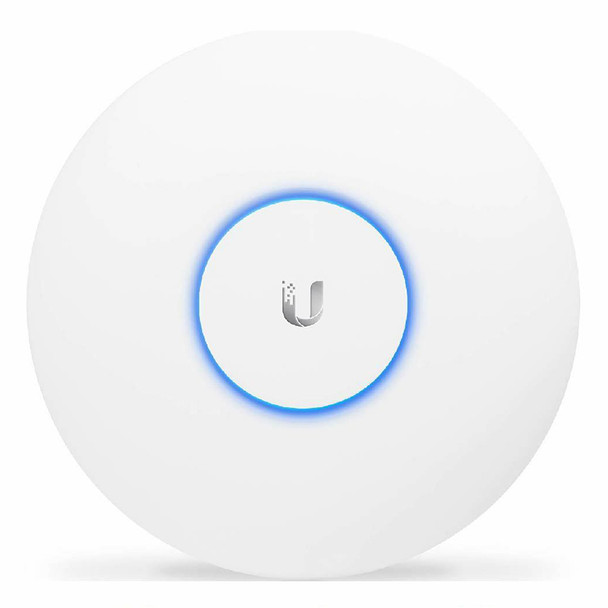

The Ubiquiti UAP-AC-LR-5-US is a UniFi Access Point Enterprise Wi-Fi System. It supports 802.11ac Wi-Fi standard with up to 867 Mb/s in speed at 5GHz. By utilizing 2 x 2 (5GHz) or 3 x 3 (2.4GHz) MIMO technology, the system can operate a dual band use. This device has a long range of 600'. It can be easily mounted on walls or ceiling as needed. The wi-fi network can be easily administered through a web browser. This administration aspect comes with map loading and numerous security options.
Ubiquiti Suffix Explanation: if a Ubiquiti product has a -US suffix at the end it means that it follows FCC regulations and is locked into their frequencies. It will only work on channels approved by the FCC. Products without the -US suffix can be used anywhere, but do be sure to understand the legal issues if you are inside the U.S. and trying to use non-approved channels with a non-US product.

| Dimensions | 175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70") |
| Weight | 240 g (8.5 oz), With Mounting Kits 315 g (11.1 oz) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Buttons | Reset |
| Power Method | 802.3af/A PoE 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter |
| Power Save | Supported |
| Maximum Power Consumption | 6.5W |
| Maximum TX Power | 2.4 GHz: 24 dBm 5 GHz: 22 dBm |
| Antennas | (1) Dual-Band Antenna, Tri-Polarity, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/r/k/v/ac |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | Up to 8 per Radio |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| ADVANCED TRAFFIC MANAGEMENT | |
|---|---|
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 250+ |
| SUPPORTED DATA RATES (MBPS) | |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
|
Accessory Type:
|
Wireless Access Point
|
|
Compliance:
|
NDAA Compliant
|
|
Frequency:
|
5 GHz
|
|
Product Series:
|
Ubiquiti UniFi Series
|
|
Range:
|
600ft
|
|
Warranty:
|
1-year Manufacturer Warranty
|
