Ubiquiti UISP-FIBER-OLT-XGS XGS-PON 8-Port Optical Line Terminal (OLT) with 4x SFP28 Uplink

Ubiquiti UISP-FIBER-OLT-XGS XGS-PON 8-Port Optical Line Terminal (OLT) with 4x SFP28 Uplink

The Ubiquiti UISP-FIBER-OLT-XGS is an eight-port optical line terminal designed to deliver symmetric 10 Gbps uplink and downlink speeds to over 2,000 subscribers from a single 1U rack unit. It serves as the head-end of an XGS-PON deployment, terminating fiber from neighborhood splitters and connecting downstream Optical Network Units (ONUs) into the operator's core network. Eight XGS/XG/GPON ports give ISPs the flexibility to mix legacy GPON and modern XGS-PON subscribers on the same chassis, while four 1/10/25G SFP28 uplinks provide the high-throughput backhaul required to feed thousands of customers without bottlenecks.

The OLT runs on a managed platform that supports VLAN segmentation, advanced QoS, concurrent client registration, and comprehensive remote monitoring through the UISP cloud. A dedicated out-of-band Ethernet management port, in-band management, RJ45 serial console, and Bluetooth give field engineers multiple paths into the device for provisioning and troubleshooting. Built around an SGCC steel enclosure with two hot-swappable AC/DC PSUs, the unit is designed for 24/7 operation in carrier rack environments, drawing a maximum of 70 W and operating from -10 to 45 °C. The product is NDAA compliant and carries CE, FCC, and IC certifications, making it suitable for U.S. federal, ISP, and enterprise FTTH/FTTB/FTTP rollouts.

Key Features:

• 8x XGS/XG/GPON ports with 10 Gbps symmetric capacity per port; supports more than 2,000 subscribers and mixed-PON deployments from a single chassis.
• 4x 1/10/25G SFP28 uplink ports; provides high-bandwidth backhaul into the operator's core, with mixed-speed support at 1G or 10G when no port is set to 25G.

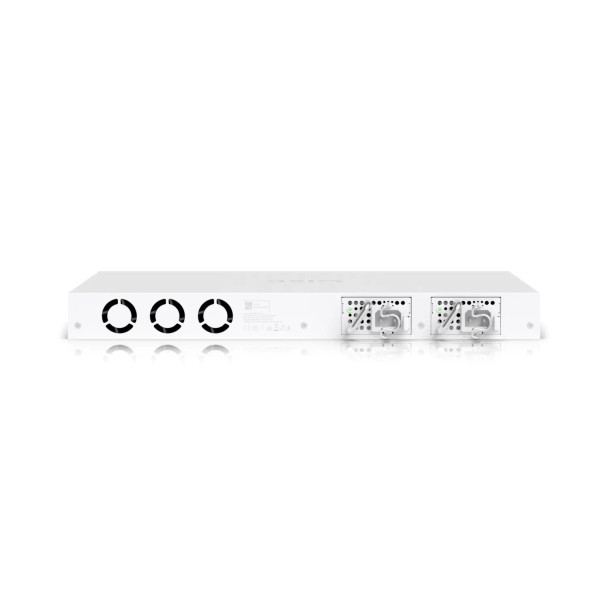

• Hot-swappable dual AC/DC PSU bays; allows redundant power and field replacement without taking the OLT offline.
• 1U rack-mount form factor (442.4 x 285.6 x 43.7 mm); slots into standard 19-inch carrier and enterprise racks.
• UISP cloud management with multiple management paths (out-of-band Ethernet, in-band, RJ45 serial console, Bluetooth); covers both day-zero provisioning and ongoing remote operations.
• SGCC steel enclosure; provides the structural rigidity and EMI shielding expected in carrier-grade equipment.
• 512 MB DDR3 memory with 64 MB NOR + 512 MB NAND onboard flash; supports the management plane and configuration storage required for thousands of subscribers.
• Universal AC input (100-240V AC, 50/60 Hz) at 70 W max consumption; deploys globally with a low operating power draw per subscriber.
• NDAA compliant with CE, FCC, and IC certifications; eligible for U.S. federal procurement and meets common North American and EU regulatory requirements.
• Front-panel system, MGMT, PON, and SFP28 LEDs; gives operators an at-a-glance read on link state, system health, and UISP cloud connectivity.
