Uniview NVR308-64R-B 64 Channel 4K H.265 Network Video Recorder - No HDD included

Brand: Uniview
Part Number: NVR308-64R-B
Write a Review
Replacement: ENS UN-NVR308-64X 64 Channel Network Video Recorder, No HDD, UNV Series
Check other similar products:
Uniview Video Recorders
Discontinued

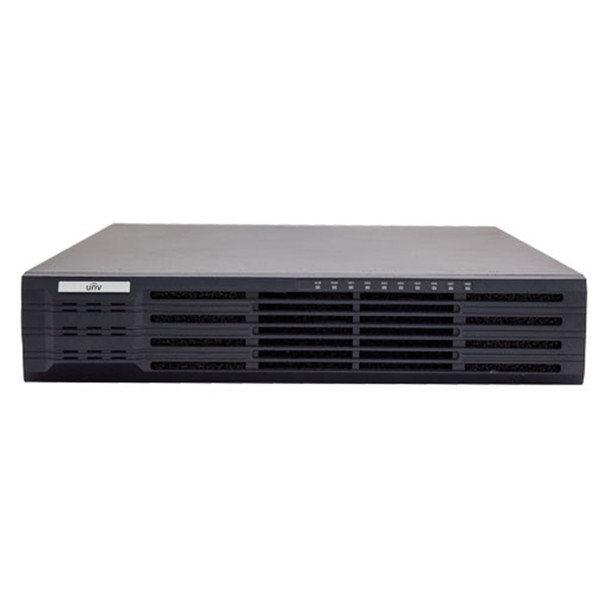

  • Uniview NVR308-64R-B 64 Channel 4K H.265 Network Video Recorder - No HDD included - 1

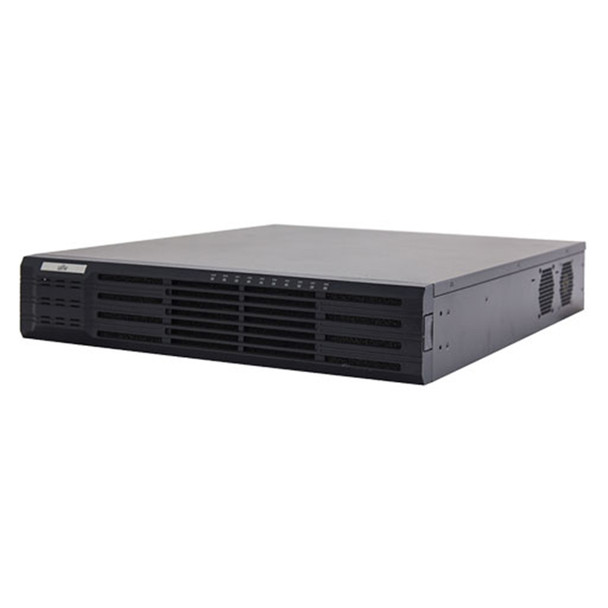

  • Uniview NVR308-64R-B 64 Channel 4K H.265 Network Video Recorder - No HDD included - 2
  • Uniview NVR308-64R-B 64 Channel 4K H.265 Network Video Recorder - No HDD included - 3
  • Uniview NVR308-64R-B 64 Channel 4K H.265 Network Video Recorder - No HDD included - 4
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : H.265,
  • Pre-Installed Storage : No HDD included
  • Max. Recording Resolution : 12MP (4K)

Related Products

Description

Uniview NVR308-64R-B 64 Channel 4K H.265 Network Video Recorder

Key Features:

  • 64-channel input
  • No HDD included
  • Up to 12 Megapixels resolution recording
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support Ultra 265/H.265/H.264 video formats
  • 8 SATA HDDs, Up to 10TB for each HDD
  • Dewarping support for fisheye cameras
  • Support N+1 Hot spare
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade

Downloads

Popular Search

Uniview Video Recorders

Specifications

ModelNVR308-32R-BNVR308-64R-B
Video/Audio Input
IP Video Input32-ch64-ch
Two-way Audio Input1-ch, RCA
Network
Incoming Bandwidth320Mbps
Outgoing Bandwidth320Mbps
Remote Users128
ProtocolsSNMP,P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA OutputHDMI1/VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
HDMI2:
4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
CVBS Output1-ch, BNC
Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output1-ch, RCA
Synchronous Playback16-ch
Corridor Mode Screen3/4/5/7/9/10/12/16/32
Decoding
Decoding formatUltra 265, H.265, H.264
Live view/ Playback12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1
Hard Disk
SATA8 SATA interfaces
CapacityUp to 10TB for each HDD
eSATA1 eSATA interface
Smart
VCA DetectionFace detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA SearchFace search, Behavior search
Statistical AnalysisPeople counting
Disk Array
Array TypeRAID 0, 1, 5, 6, 10

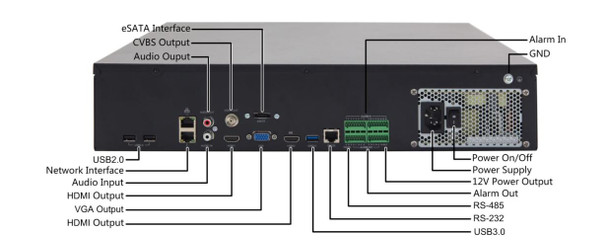

External Interface
Network Interface2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
Serial Interface1 x RS232, 1 x RS485
USB InterfaceRear panel: 2 x USB2.0, 1 x USB3.0
Alarm In16-ch
Alarm Out4-ch
General
Power Supply100 ~ 240 VAC
Power Consumption: ≤ 20 W( without HDD )
Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)442mm ×531mm ×86mm (17.4" × 20.9"×3.4")
Weight ( without HDD )≤ 5.13 Kg (11.31 lb )
View AllClose

Additional Information

4K Support:
4K Supported
Channel Capacity:
64 Channels
Compression:
H.265
Max. Recording Resolution:
12MP (4K)
Pre-Installed Storage:
No HDD included
Recorder Technology:
Network Video Recorder (NVR)
