VideoComm EV-L1R2409 Digital Wireless CCTV Elevator Security Camera System - 200 Floors

VideoComm EV-L1R2409 Digital Wireless CCTV Elevator Security Camera System - 200 Floors

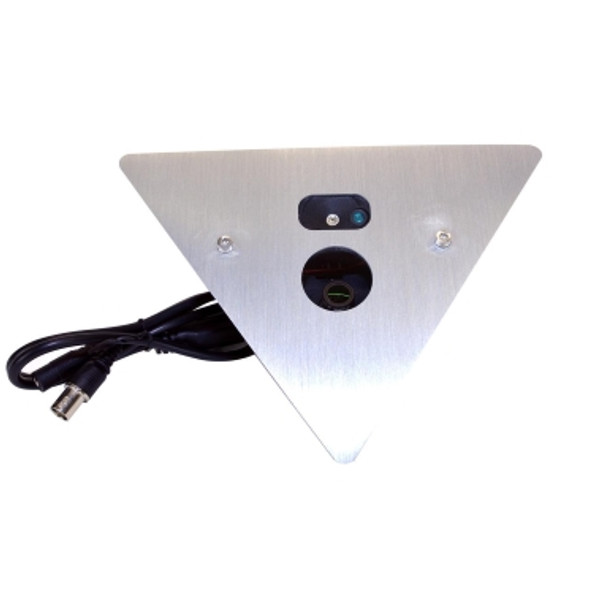

The EV-L1R2409 from Videocomm is a plug and play wireless elevator camera capable of transmitting D1 resolution video 200 floors away. The camera has an on screen display with a signal strength indicator to make installation easy. The camera comes in a vandal proof enclosure. The camera provides 480 line video wirelessly from inside an elevator to a wireless receiver. The receiver has a 9 channel to prevent interference with other networks in the area. RS-485 PTZ (data) is also supported. It does not require an FCC license and can be used freely in high density areas. The camera can be mounted in the corner of an elevator or recessed into the elevator chassis. The kit inlcudes a weather proof transmitter, weatherproof receiver, 480TVL security camera, video cable(25ft), two rubber antennas, 3 plug in power supplies (camera, tx, rx), and two mounting brackets.

Advantages:

• Wireless digital elevator video security camera solution up to 200 Floors
• Reduce liability by increasing occupants safety and security
• Easy integration with existing surveillance systems for anytime/anywhere monitoring
• Complies with TSSA, ASME & FCC safety standards
• Economical solution to deter vandalism & criminal behaviour
• Installs in a few hours, minimize elevator down time
• No Connections to the Elevator Mechanics – No re-occurring inspections required.
• Perfect for Elevators in Offices, Schools, Hospitals, Commercial & Residential Buildings
• 100% Performance  Guarantee

Key Features:

• Operating Frequency: 2.4GHz - 2.48GHz FHSS
• Modulation: FHSS Automatic 9-Channel
• Security Authentication System: Automatic Rolling Encrypted Authentication
• Latency: 200-500ms (Signal Dependant)
• Video Compression: Hardware Based MPEG-4
• Resolution: Maximum D1 720 x 480 ( Camera 650 lines )
• Range & Elevation (Line of Sight): Up to 200 Floors
• Camera Type: 1/3” Color SONY # CCD-S650EV
• Camera Lens Type: Board Lens 2.8mm @ F2.0
• Camera S/N Ratio: >48dB (Auto Gain Control OFF)
• Camera Minimum Illumination: 0.4 Lux @ F1.
• Antenna Type: External OmniDirectional Rubber Duck
• Video Connector: BNC-Female @ 75 Ohms 1 Volt P-P
• Audio Connector: BNC-Female @ 600 Ohms 1 Volt P-P ( Camera has no Audio )
• Power Supplies Included: 2x 12VDC 1.25Amp CE UL Listed #PS-121C
• Camera Power Connector: Siamese Power / Video Cable included
• Tx & Rx Operating Voltage: 9-15VDC - Polarity & Surge Protected
• Camera Current Consumption: <130mA @ 12VDC
• Tx & Rx Current Consumption: 500mA @ 12VDC
• Camera Construction: Vandal-Proof IP-66 Aluminum Design
• Tx & Rx Construction IP-67 Rated All-Weather Design
• Camera Dimensions: 7.4 x 5.5 x 1.7 (190mm x 140mm x 44mm
• Tx & Rx Dimensions: 7.0” x 7.0” x 4.0” (178mm x 178mm x 102mm) Each Enclosure
• Camera Weight: 300g (0.6Lbs) approx
• Tx & Rx Weight: Tx: 29oz (820g) Rx: 31oz (890g)
• Tx & Rx Mounting Brackets: Universal Stainless Steel Wall / Pole Mount
• Operating Temperature Range: -40ºF to +170ºF (-40ºC to 77ºC)
• FCC / IC Approved: Yes - Professional Installation

Includes:

• Elevator Security Camera,
• Elevator Tx & Rx,
• 2x Rubber Duck Antennas,
• 2sets Siamese Cable,
• 2x Power Supplies,
• Two Mounting Brackets,
• Owner's Manual & One Year Limited Warranty
