Videocomm TCO-2409QX10 2.4GHz Digital FHSS Outdoor Analog Video + RS-485PTZ Data System - Range 10-Miles

Brand:
Part Number: TCO-2409QX10
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Discontinued
  • Videocomm TCO-2409QX10 2.4GHz Digital FHSS Outdoor Analog Video + RS-485PTZ Data System - Range 10-Miles
  • Videocomm TCO-2409QX10 2.4GHz Digital FHSS Outdoor Analog Video + RS-485PTZ Data System - Range 10-Miles
  • Videocomm TCO-2409QX10 2.4GHz Digital FHSS Outdoor Analog Video + RS-485PTZ Data System - Range 10-Miles
  • Videocomm TCO-2409QX10 2.4GHz Digital FHSS Outdoor Analog Video + RS-485PTZ Data System - Range 10-Miles
  • Videocomm TCO-2409QX10 2.4GHz Digital FHSS Outdoor Analog Video + RS-485PTZ Data System - Range 10-Miles
$1,025.00
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Environmental : Outdoor

Description

Videocomm TCO-2409QX10 2.4GHz Digital FHSS Outdoor Analog Video + RS-485PTZ Data System - Range 10-Miles

All-weather wireless video, 2.4GHz Digital Frequency Hopping Spread Spectrum (FHSS), solution sends Real-Time D1 (720 x 480) high-resolution video up to 10 miles Line-of-Sight, and reverse 2-wire format RS-485 for wireless PTZ / control or Data transmission. Perfect for industrial, commercial, law enforcement and video security applications.

Advantages:
  • Easy to install " All-In-One " kit with Unique Embedded Antenna System
  • Perfect for Long Range Wireless Analog PTZ Camera Applications up to 10 miles
  • 2.4GHz Digital FHSS Immunity to Signal Interference
  • Automatic Rolling Encrypted Authentication System for Secure Transmission
  • No Software or Hardware Configuration Required “Plug & Play”
  • Embedded 2-Wire RS-485 PTZ / Data Control Capable
  • Convenient On-screen Display Signal Strength Indicator
  • Rugged IP-67 Rated All-Weather Design for Extreme All-Weather Environments
  • Perfect for commercial, industrial, scientific, law enforcement and video security applications
  • 100% Performance & Customer Satisfaction Guarantee

Key Features:

  • Operating Frequency: 2.4GHz - 2.48GHz Frequency Hopping Spread Spectrum (FHSS)
  • Modulation: FHSS (16 QAM, QPSK, BPSK)
  • Security Authentication System: Automatic Rolling Encrypted Authentication System
  • Data Rate: Up to 12 Mbps
  • Latency: 200-500ms (Signal Dependant)
  • Video Compression: Hardware Based MPEG-4
  • Resolution: Maximum D1 720 x 480
  • Frame Rate: 30fps (NTSC)
  • Radiated Power: 125mW
  • Range & Elevation (Line of Sight): Up to 10 Miles @ Minimum 58 Feet Elevation
  • Sensitivity: -85dBm

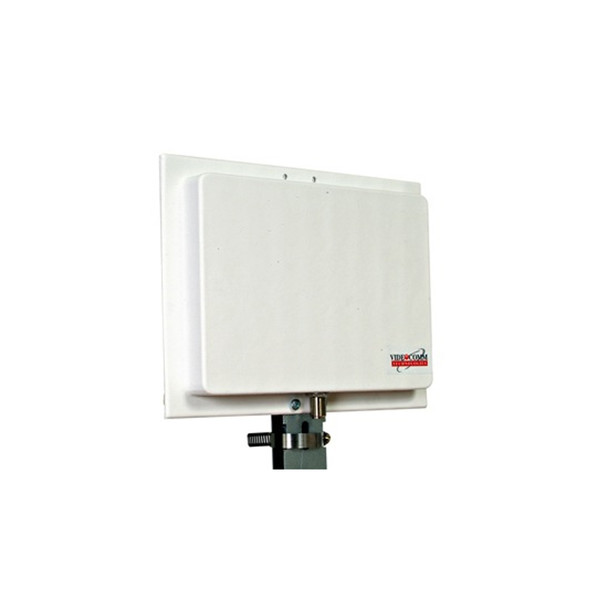

  • Antenna Type: Two External All-Weather 21dB Panel Antennas
  • Antenna E Plane Beam: 16º
  • Antenna H Plane Beam: 15º
  • Antenna Cable: Two 6' N-Male - SMA-Male Low Loss Microwave Cables - Model # LMR-196NMSM
  • Video Connector: BNC-Female @ 75 Ohms 1 Volt P-P
  • Audio Connector: BNC-Female @ 600 Ohms 1 Volt P-P
  • Baud Rate: Rotary-Switch 1200 / 2400 / 4800 / 9600
  • PTZ Data Protocol: RS-485 2-Wire Pelco-D / Pelco-P
  • Power Supply Included: Two 12VDC Power Supplies- Model # PS-121CLX Class V CEC
  • Tx & Rx Power Connector: Two Post Terminal
  • Tx & Rx Operating Voltage: 9-15VDC - Polarity & Surge Protected
  • Current Consumption: 500mA @ 12VDC
  • Tx & Rx Construction IP-67 Rated All-Weather Design
  • Tx & Rx Dimensions: 7.0” x 7.0” x 4.0” (178mm x 178mm x 102mm) Each Enclosure
  • Antenna Dimensions: 9.6” x 8.5” x 2.2” (244mm x 216mm x 56mm) Each Antenna
  • Tx & Rx Weight: Transmitter: 29oz (820g) Receiver: 31oz (890g) - Not Including Antennas
  • Antenna Weight: 4.4lbs (2kg)
  • Tx & Rx Mounting Brackets: Universal Stainless Steel Wall / Pole Mount - Model # BRK-250
  • Operating Temperature Range: -40ºF to +170ºF (-40ºC to 77ºC)
Includes:
  • 1x ALL-WEATHER TRANSMITTER
  • 1x ALL-WEATHER RECEIVER
  • 2x 21dB EXTERNAL ANTENNAS/BRACKETS
  • 2x 12VDC POWER SUPPLIES
  • 2x UNIVERSAL MOUNTING BRACKET
  • OWNE'RS MANUAL
  • ONE YEAR WARRANTY
  • 100% PERFORMANCE GUARANTEE
  • FCC / IC Approved: License Free - Professional Installation (CE Version Available)
