5.8GHz FM-Analog Outdoor 960H Transmitter & Receiver System - Range 2,000'
The Videocomm Technologies TCO-5808R6 fixed system is one of Videocomm's industry leading CCTV wireless point to point kits. Videocomm Technologies CCTV wireless systems are the best in the industry giving superior quality, performance, and ease of use. The Videocomm Technologies TCO-5808R6 is the perfect product for your CCTV wireless security system.
This wireless video solution sends Real-Time 960H high- resolution video up to 2,000 Feet line-of-sight. The perfect all-weather solution for industrial, commercial, law enforcement and government video security applications.
This product is also associated with:
Videocomm
Operating Frequency: | 5.725GHz – 5.875GHz |
Modulation: | Frequency Modulation - FM-Analog |
Channels: | 8 User Selectable Channels |
Resolution: | Up to 960H |
Video Format: | NTSC (30fps) or PAL (25fps) |
Radiated Power: | 50mV/m @ 3m |
Range & Elevation (Line of Sight): | Up to 2,000 Feet @ Minimum 8 Feet Elevation |
Sensitivity: | -92dBm |
Antenna Type: | Tx - Embedded 3dB Directional Patch / Rx - Embedded 7dB Directional Patch |
Antenna E Plane Beam: | Transmitter & Receiver = 32º |
Antenna H Plane Beam: | Transmitter & Receiver = 32º |
Antenna Connector: | Receiver SMA-Female |
Video Connector: | BNC-Female |
Video Impedance & Level: | 75 OHMS @ 1 Volt P–P |
Audio Connector: | BNC-Female |
Audio Impedance & Level: | 600 OHMS @ 1 Volt P–P |
Power Supplies Included: | 2x 12VDC Power Supplies – Model # PS-1250CLX Class V CEC |
Operating Voltage: | 9–15VDC – Polarity & Surge Protected |
Tx & Rx Current Consumption: | Transmitter: 250mA @ 12VDC Receiver: 200mA @ 12VDC |
Tx & Rx Construction | IP-67 Rated All-Weather Design - UL Listed Polycarbonate |
Tx & Rx Dimensions: | 7.0” x 7.0” x 4.0” (178mm x 178mm x 102mm) Each |
Tx & Rx Weight: | Transmitter: 29oz (820g) Receiver: 31oz (890g) |

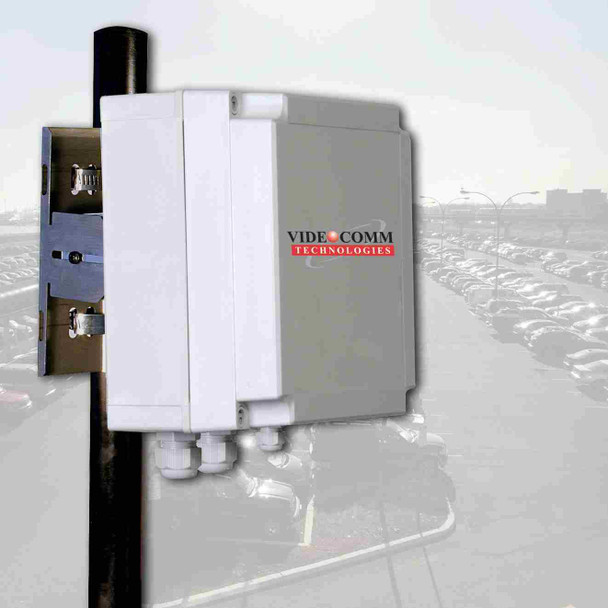

Mounting Bracket: | Universal Stainless Steel Wall / Pole Mounting System |
Operating Temperature Range: | -40ºF to +170ºF (-40ºC to +77ºC) |
Includes: | Outdoor Transmitter & Receiver, 2x 12VDC Power Supplies, 2x Universal Mounting Brackets, Owner's Manual, 100% Performance Guarantee & One Year Limited Warranty |
FCC / IC Approved: | Yes |
