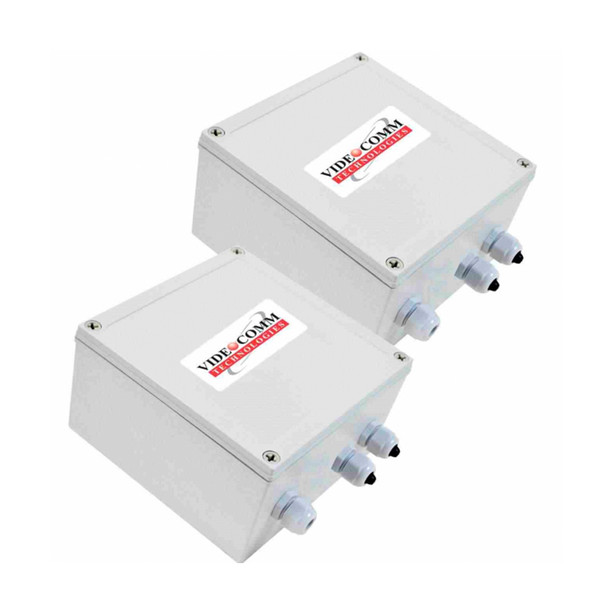

Videocomm VNO-58307W Rugged 300Mbps Outdoor Video Network Bridge - Range 1 Mile

Videocomm VNO-58307W Rugged 300Mbps Outdoor Video Network Bridge - Range 1 Mile

Designed for streaming multiple network IP cameras at full resolution and frame rate. Perfect for applications ranging up to 1 Mile including: parking lots, gas stations, farming / livestock monitoring and residential perimeter surveillance

Advantages:

• Designed for Streaming HD Resolution Network IP Cameras up to 1-Mile
• Hi-Speed 300Mbps System for Max Camera Resolution and Frame-Rate
• Easy to Install “All-In-One” Kit with Unique Embedded Antenna System
• Fast Setup with Convenient Dip-Switch Setup & Pairing
• Rugged IP-67 Rated Enclosure for Extreme Outdoor Environments

Key Features:

• Operating Frequency:5.185GHz - 5.825GHz
• Modulation:OFDM , MIMO
• Protocol:802.11a/n
• Security Format:AES 128 Bit Encrypted Data System
• Data Rate:Up to 300Mbps @ -67dBm
• Range & Elevation (Line of Sight):Up to 1 Mile @ Minimum 20 Feet Elevation
• Power Supplies Included:2 x 24VDC UL-Approved PoE Injectors
• Programming Software:Embedded - Dip-Switch Selectable
• Tx & Rx Operating Voltage:24VDC PoE Only
• Current Consumption:3 Watts @ 24VDC PoE
• Construction:IP-67 Rated - UL-Approved
• Tx & Rx Dimensions:7.0” x 7.0” x 4.0” (180mm x 180mm x 100mm)
• Tx & Rx Weight:31oz (880g) Each Enclosure
• Tx & Rx Mounting Brackets:Universal Stainless Steel Wall / Pole Mount
• Operating Temperature Range:-40F to +170F (-40ºC to 77ºC)
• FCC / IC Approved:Yes

Includes:

• 2x Wireless Video Access Points,
• 2x 24VDC POE Injectors,
• 2x Universal Stainless Brackets,
• Installation Guide, ONE Year Limited Warranty

Note: Compatible with All IP Network Products
