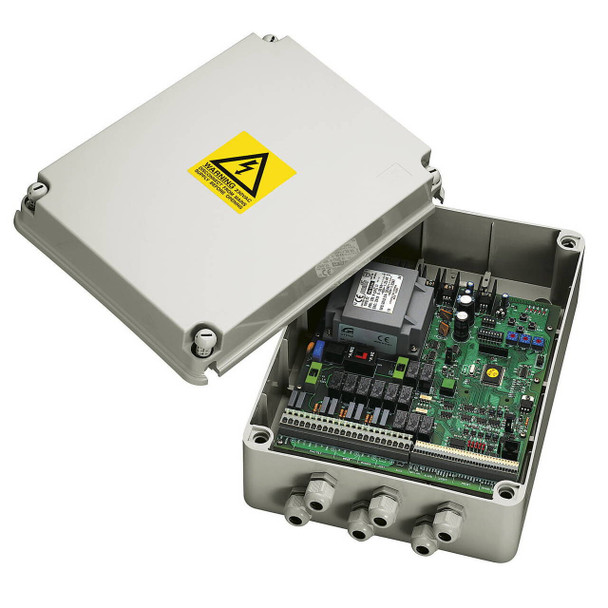

Videotec DTRX3 Telemetry Data Receiver with 17 functions

Videotec DTRX3 Telemetry Data Receiver with 17 functions

The DTRX3 is a digital receiver, controlled by a microprocessor, for remote control of a Pan & Tilt motor, motor-driven zoom lens, wiper, washer and 4 auxiliary contacts. Connection to the control unit can be RS232 or RS485. This digital receiver can be controlled by DCJ and DCTEL keyboards or by PC via RS232 serial connection.

Key features:

• 11 standard functions for the control of P & T motors and zoom lenses, 6 functions for auxiliary services (2 x dry contacts, 1 x 12Vdc, 1x 24Vac, wiper and washer)
• Up to 40 presets
• Maintenance of configuration even in case of power loss
• Various telemetry protocols available
• 230Vac
• Also available in 24Vac (DTRX324)
• Operating temperature: -20°C + 50°C (-4°F up to 122°F)
