Videotec MBA2S5A Explosion-proof Communication Box in Aluminum - 24Vac, T5 -60-degreeC/+80-degreeC

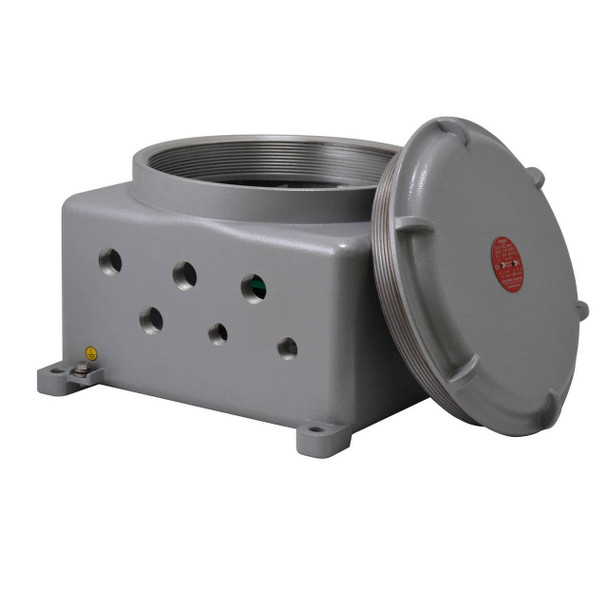

Videotec MBA2S5A Explosion-proof Communication Box in Aluminum

MAXIMUS MBA is much more than just a simple explosion-proof junction box. In fact it is defined as a communication box equipped with everything needed to connect one or more IP or analog cameras. MAXIMUS MBA has been designed to integrate and work exclusively with the MAXIMUS range of Videotec products. MAXIMUS MBA provides a local, low-voltage power supply. It also allows a Fast Ethernet connection, thanks to an integrated Ethernet switch equipped with 3 RJ45 ports and an SFP port for fibre optic connection. The type of SFP module can be chosen according to the installation requirements. The internal spaces are designed to make access to cables easier, and to increase user-friendliness when it comes to connection procedures. The internal board also offers the bypass for analog video signals and for all the inputs and outputs which are present in the Videotec MAXIMUS products. MAXIMUS MBA has been designed to connect a PTZ camera and its washing kit, or in alternative two fixed cameras and their washing kits. MAXIMUS MBA is built in marine grade aluminium protected by epoxy paint to offer maximum resistance in corrosive environments such as industrial or marine. MAXIMUS MBA is the complete and competitive solution for professional installation of the Videotec MAXIMUS range of explosion-proof products.

Key features:

• Certifications for use in Zones 1 and 2, IIC T5 or T6 Group (Gas) and in Zones 21 and 22, IIIC T100°C or T85°C Group (Dust)
• Copper-free marine grade aluminium construction, RAL 9006 external epoxy paint
• Designed to work exclusively with Videotec products and accessories
• Plenty of space for cables and connections
• Built-in Ethernet switch with 4 channels:
  • 3 RJ45 ports, Fast Ethernet (10BASE-T/100BASE-T)
  • 1 SFP port, Fast Ethernet (100BASE-FX), for fibre optic connection
• 2 bypass for analog video signals with BNC connectors
• 2 bypass for I / O signals with multi-pin connectors
• Input voltages: 24Vac
• Extended/Industrial range electronics
• Operating temperature: from -40°C (-40°F) up to +70°C (158°F)
• T5 -60°C/+80°C
• IP66
