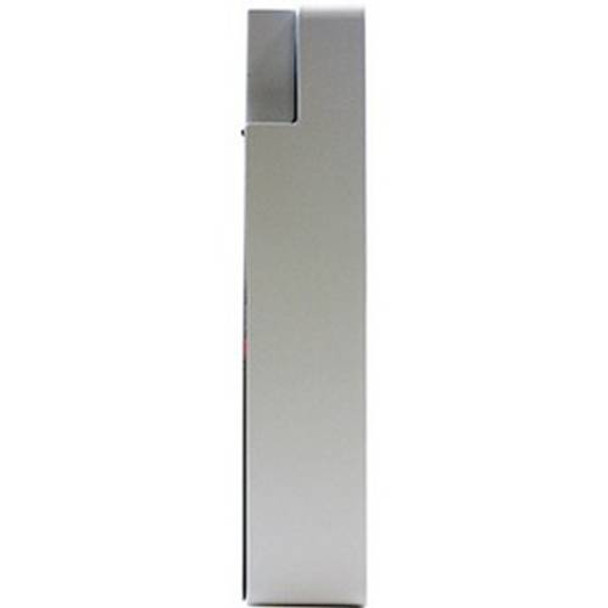

ViewZ VZ-PVM-I1W4N 10.1-inch IP Public View Monitor with 2.1MP Camera

(No reviews yet) Write a Review
SKU:
VZ-PVM-I1W4N
  • ViewZ VZ-PVM-I1W4N 10.1-inch IP Public View Monitor with 2.1MP Camera
  • ViewZ VZ-PVM-I1W4N 10.1-inch IP Public View Monitor with 2.1MP Camera
  • ViewZ VZ-PVM-I1W4N 10.1-inch IP Public View Monitor with 2.1MP Camera
  • ViewZ VZ-PVM-I1W4N 10.1-inch IP Public View Monitor with 2.1MP Camera
  • ViewZ VZ-PVM-I1W4N 10.1-inch IP Public View Monitor with 2.1MP Camera
  • ViewZ VZ-PVM-I1W4N 10.1-inch IP Public View Monitor with 2.1MP Camera
  • ViewZ VZ-PVM-I1W4N 10.1-inch IP Public View Monitor with 2.1MP Camera
  • ViewZ VZ-PVM-I1W4N 10.1-inch IP Public View Monitor with 2.1MP Camera
  • ViewZ VZ-PVM-I1W4N 10.1-inch IP Public View Monitor with 2.1MP Camera
  • ViewZ VZ-PVM-I1W4N 10.1-inch IP Public View Monitor with 2.1MP Camera
$478.00
Free Shipping
Technical Support
3 Year Warranty
  • Lens Type : Fixed Lens
  • Lens Size : 3.7mm Lens
  • Sensor Size : 1/3" Sensor
  • Color : White
  • Sensor Size : 1/3"
  • Screen Size : 10.1"

Description

ViewZ VZ-PVM-I1W4N 10.1-inch WXGA Public IP LED Monitor with 2.1MP Camera

Key Features:

  • Model Number: VZ-PVM-I1W4N
  • Enhanced Public View Monitor over IP
  • 10″ Flat Panel Widescreen LED "A" Commercial-Grade Monitor
  • Powered by PoE
  • HD 1280x800 / 16:9
  • 1080p Pinhole 2.1 Mega Pixel HD WDR Camera
  • Camera Motion Sensor & Time Interval Based Source Switching between IP Camera and Media Player
  • Flexible Alert Text / Multi-Color Blinking LED
  • Camera and Monitor OSD / Remote Control
  • Video Obstruction Alarm / Video Loss Alarm / Door Open Alarm / Power Loss Alarm / Auto Power/Source Recovery
  • VESA Wall Mount 75x75
  • PoE 30W
  • 3-Year Warranty
View AllClose

Specifications

Screen Size10.1″
Max Resolution1280 x 800 @60Hz
Pixel Pitch0.1695 mm x 0.1695 mm
Brightness250cd/m²(Typical)
Contrast Ratio700 : 1
Aspect Ratio16 : 10
Viewing Angle (H/V)140°/130°
Display Color16.7 Million
Response Time< 30ms
RJ-45 for iP Camera & Power1
USB / SD Card In (Media Player)1 / 1
Ethernet Interface10/100Base-T
Web Client ProtocolTCP / IP
Supported ProtocolTCP/IP, UDP, SMTP, HTTP, FTP, PPPOE, DHCP, DNS, DDNS, UPNP, RTP, RTSP
PoE SupportYes
KeylockYes
Blinking Message “Recording”Yes
Timed Switching Capabilities between IP Cam & Media PlayerYes
Outline Dimension (W x H x D)9.88” x 8.42” x 1.65” / 251.2 mm x 211.2 mm x 42.1 mm
Net Weight4.62 lbs / 2.1 kg
Gross Weight7.05 lbs / 3.2 kg
Vesa75mm x 75mm / M4 x L8 Screws
Sensor Type1/3″ 2.1M SONY IMX290 / Hi3516D
Lens3.7 Fixed Pinhole Lens
Active Pixels1920(H) x 1080p(V) 30p
Min IlluminationColor: 0.001Lux@ (F1.2, AGC ON) / B&W: 0.0001Lux@(F1.2, AGC ON)
Function2D/3D NR, D-ZOOM, DPC, HLC/BLC, Defog, D/N, DWDR, AGC, AWB
Video CompressionH.265, H.264, MJPEG, CBR, VBR support
Video Out1ch RJ-45 output
Motion DetectionSupport
Support ProtocolTCP/IP, UDP, SMTP, HTTP, FTP, PPPOE, DHCP, DNS, DDNS, UPNP, RTP, RTSP
Ethernet Port10 / 100 Base-T
Webclient ConnectionTCP / IP Protocol
Integration ProtocolONVIF 2.6 (supported)
Support TypePhoto, Music, Video
External StorageSupport SD CARD (Max.64GB), USB (2TB)
Video File FormatRM, RMVB, AVI, DVIX, MKV, MOV, HDMOV, MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4
Video Resolution1080P @60Hz
Audio File FormatMPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCM
Image File FormatJPEG, TIF, PNG, BMP
Transmitter – IR Remote ControlYes
Power – Electrical RatingsP.o.E.
Power – Consumption≤ 24 W
Warranty – Parts / Labor3 Year / 3 Year
Operating Temperature32 – 104°F / 0 – 60°C
Compatible Mounts – WallVZ-WM05, VZ-WM11, VZ-AM01
RegulationFCC(A), CE
View AllClose

Additional Information

Accessory Type:
Monitor
Color:
White
Lens Size:
3.7mm
Lens Type:
Fixed Lens
Resolution:
2.1MP
SD Card Support:
Screen Size:
10.1"
Screen Type:
LED
Sensor Size:
1/3"
Warranty:
3-year Manufacturer Warranty
