Vivotek AM-718 Junction Box for Cameras and Mounts (IP67, IK10)

(No reviews yet) Write a Review
SKU:
AM-718
$130.00
$109.80
Technical Support
  • Color : White
  • Material : Aluminum
  • Mount Type : Junction Box
  • Output Current : 0.84A

Description

Vivotek AM-718 Junction Box for Cameras and Mounts (IP67, IK10)

Key Features of Vivotek AM-718

  • Junction Box for Cameras and Mounts (IP67, IK10)
  • Supported Models Wall Mount: AM-212, AM-221, AM-21C, AM-21D, AM-21E
  • Pole Mount: AM-314, AM-315
  • Corner Mount: AM-414
  • Cameras: SD9361-EHL, SD9362-EH, SD9362-EHL, SD9363-EHL, SD9364-EH, SD9364-EHL, SD9365-EHL, SD9366-EH, SD9366-EHL
  • Material Aluminum + SPCC
  • Certification IP67, IK10
  • Cable Gland PF 3/4"x2 + M25x1
  • Color White
  • Max. Load 10 kg
  • Dimensions 255 (L) x 200 (W) x 130 (H) mm
  • Weight 2,02 kg
  • Box Dimension 315 (L) x 258 (W) x 188 (H) mm (1 pcs)
  • Box Weight 2,65 kg
  • Carton Dimension 534 (L) x 330 (W) x 397 (H) mm (4 pcs)
  • Carton Weight 11.6 kg

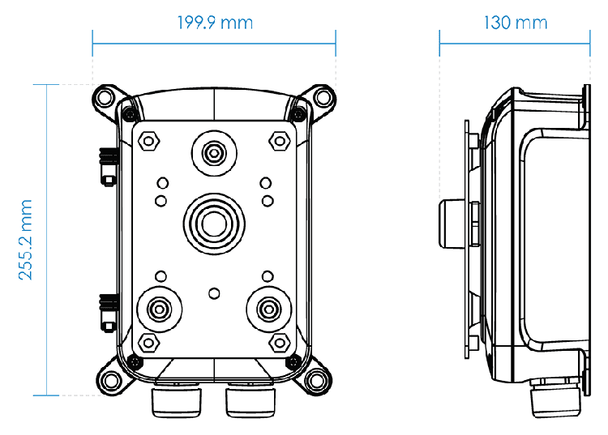

AM-718 Dimensions

Downloads

View AllClose

Compatible products

Additional Information

Accessory Type:
Mount & Bracket
Color:
White
Consumption:
10W
Material:
Aluminum
Mount Type:
Junction Box
Output Current:
0.84A
