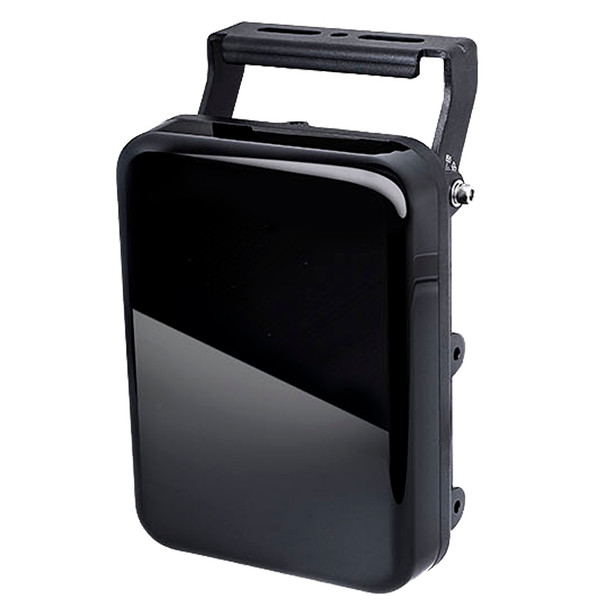

Vivotek CM8018-1040 10-degree ~ 40-degree IR Illuminator (Not offered in the US)

Part Number: CM8018-1040
Write a Review
  • Vivotek CM8018-1040 10-degree ~ 40-degree IR Illuminator (Not offered in the US)
  • 5-Year Manufacturer Warranty
Technical Support Technical Support
5 Year Warranty 5 Year Warranty
  • Field of View (Horizontal) : 10°Field of View
  • Color : Black
  • Environmental : Outdoor
  • Input Voltage : AC 24V DC 24V

Customers Also Viewed


Vivotek CM8018-1040 10° ~ 40° IR Illuminator

CaMate CM80 is a series of professional IR illuminators designed with VIVOTEK’s Continuous Variable Angle Technology (CVA Tech), providing highly efficient intensity and uniform distribution to fit 10° ~ 120° FOV via adjustable beam angles up to 350 meters. The series offers multiple options for outdoor and long-distance in many applications such as traffic LPR/ANPR, airports, parking lots and many more.

The CM80 series delivers accurate image quality with special beam pattern designs such as circular (-1040), elliptical (-2040/4080) and rectangular (-90120), providing high intensity and uniformity without hot spots or overexposure issues. The radiant power of the LED’s are effectively projected on to the surveillance area. All ranges of variable angles can maintain highly efficient functionality while also conserving energy.

Thanks to CVA Tech, this series can adjust beam angles according to different installation distances, which make it easy to install. Further, an optional remote control provides users quick and easy to set-up the IR LED from the ground site. To meet the demands of different scenarios, the CM80 series is compatible with a variety of accessories, such as brackets, wall mounts and alignment tools. With the added support and flexibility of an abundance of accessories, the CM80 series is an excellent intelligent IR illuminator for optimizing your video performance in dark or low-light surveillance.

Key features:

  • Continuous Variable Angle Technology (CVA Tech)
  • Variable Field of View 10° ~ 120°
  • Adjustable Beam Angle up to 350 Meters
  • High Uniformity without Hot Spots and Overexposure
  • Accurate Image Quality with Special Beam Patterns for Different Solutions: Circular, Elliptical and Rectangular
  • Extreme Weather Support
  • Weather-proof IP68- and Vandal-proof IK10-rated Housing
  • Flexible Installation
  • Five-year Warranty

This product is also associated with:

View AllClose


5-year Manufacturer Warranty
View AllClose

Additional Information

Accessory Type:
Infrared Illuminators
Field of View (Horizontal):
Input Voltage:
AC 24V DC 24V
Night Vision Range (ft):
Power Consumption:
90 Watts
5-year Manufacturer Warranty
