Please note: this product is the video core only, not a complete camera. It has no lens or image sensor of its own and must be paired with one Vivotek CU series camera unit (CU9171-H, CU9171-HF, CU9183-H or CU9183-HF), which is sold separately.

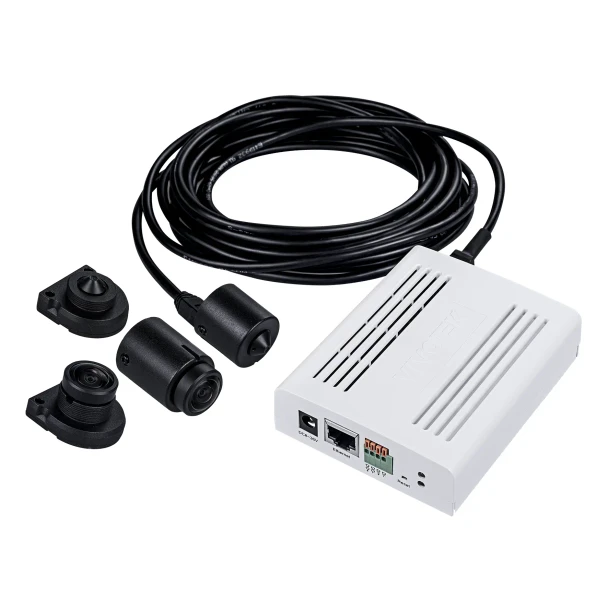

The Vivotek VC9101 is the processing half of the Vivotek V (Versatile) Series split-type camera system. The camera unit hides inside a ceiling, wall or fixture while the VC9101 sits up to 5 meters away in a service space or enclosure, carrying the processor, network port, storage and audio connections. The chassis measures 3.31 x 4.13 x 1.18 in (84 x 105 x 30 mm) and weighs 190 g, and it runs on IEEE 802.3af PoE or a DC 8-36 V supply at under 8.5 W, with simultaneous power redundancy so both sources can stay connected.

A multimedia SoC with 2 GB of RAM and 8 GB of flash drives the system, delivering up to 2688x1520 or 1920x1920 depending on which camera unit is attached, with 120 dB WDR Pro and three simultaneous streams across up to eight configurable profiles in H.265, H.264 or MJPEG. A built-in hardware deep learning accelerator runs Face Check and Smart Motion Detection on the device, with five-window motion detection, face detection and time filtering to cut false alerts. ePTZ provides 48x digital zoom for closer inspection of a fixed scene.

Recording goes to a MicroSD/SDHC/SDXC card or to network-attached storage, with seamless recording to cover network outages. Two-way full-duplex audio uses G.711 or G.726 over external microphone and line outputs, and one digital input and one digital output handle alarm devices. The VC9101 supports ONVIF Profile G, S and T, serves up to 10 simultaneous viewers, and hardens access with HTTPS, IEEE 802.1x, secure boot, signed firmware and Trend Micro IoT Security. It operates from -10°C to 50°C (14°F to 122°F) at up to 90% relative humidity, carries CE, FCC, RCM, VCCI, UL, CB and BSMI approvals, and is backed by a 60-month manufacturer warranty.

Key Features:

• Video core only, requires one separately sold CU series camera unit; lets the visible sensor stay tiny and concealed while the electronics sit out of sight.
• Multimedia SoC with 2 GB RAM and 8 GB flash; handles full-resolution encoding and on-device analytics without an external server.
• Hardware deep learning accelerator running Face Check and Smart Motion Detection; filters routine movement so operators review real events instead of every trigger.
• Up to 2688x1520 or 1920x1920 depending on the attached camera unit; one core covers both pinhole and fisheye installations.
• Three streams and up to eight profiles in H.265, H.264 or MJPEG; lets live view, recording and mobile each run at their own bitrate.
• WDR Pro with 120 dB dynamic range; keeps shaded interiors and bright entrances readable in the same frame.
• ePTZ with 48x digital zoom; inspect detail in a fixed scene without moving hardware.
• MicroSD/SDHC/SDXC and NAS recording with seamless recording; video keeps saving through a network interruption.
• Two-way full-duplex audio with G.711 and G.726, plus one digital input and one digital output; supports live intervention and alarm devices at the same site.
• IEEE 802.3af PoE or DC 8-36 V with power redundancy, under 8.5 W; a single cable can power and network the unit, with a second source as backup.
• ONVIF Profile G, S and T, HTTPS, IEEE 802.1x, secure boot and signed firmware; integrates with third-party VMS platforms under enterprise security policy.
• 60-month manufacturer warranty; long coverage for a permanently installed core unit.
