Description

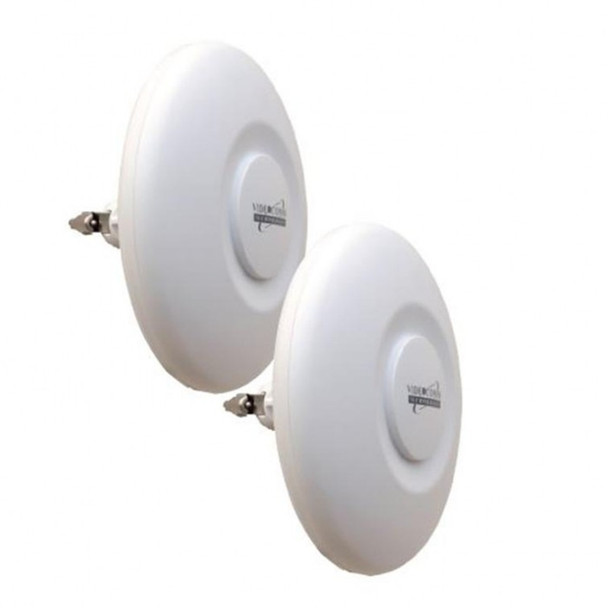

VNO-58D150 5.8GHz All Weather Wireless Video Ethernet Bridge with Range up to 1500ft by Elevator Video Systems
Economical wireless ethernet video bridge / access point designed with software free dip-switch set- up , for quick and easy deployment. Perfect for wireless video applications ranging up to 1,500 Feet including: parking lots, gas stations, farming / livestock monitoring and residential perimeter surveillance.
Key Features:
- Economical Wireless Video Network Solution up to 1,500 Feet
- Easy DIY Installation with Convenient Dip-Switch Select Setup & Pairing
- Rapid-Deployment – Device Management Programming Software Not Required
- Light Weight, Compact Design with Convenient Multi-Purpose Mounting System
- User-Friendly PoE Power, Network & Signal-Strength Indicator LEDs
- World Class Technical Team - Free Lifetime Support
- 100% Performance guarantee
- Operating Frequency: 5.185ghz - 5.825ghz / Bandwidth: 20mhz
- Modulation: Ofdm, Bpsk, Qpsk, Cck, Dqpsk, Dbpsk
- Protocol: 802.11a/N Csma/Ca, Tcp/Ip, Ipx/Spx, Netbeui, Dhcp, Ndis 3 / 4/ 5, 802.3u
- Security Format: 128 Bit Encrypted Data System - Wpa + Hidden Ssid
- Data Rate: 802.11a: 54 / 48 / 36 / 24 / 18 / 12 / 9 / 6 802.11n: 7-144mbps
- Data Throughout: Maximum 150mbps @ -68dbm
- Hardware: Atheros Ar9344 With 64mb Ddr2 Ram And 8mb Flash
- On-Board Led Indicators: External Rssi ( Receive Signal Strength Indicator) Power, Lan 1 / 2, Wlan
- Radiated Power: 22dbm
- Range & Elevation (Line-Of-Sight): Up To 1,500 Feet @ Minimum 15 Feet Elevation
- Sensitivity: 150mbps: -68dbm @ 10%
- Ethernet Port: 2x 10/100mbps Rj45 - Poe Capable
- Antenna Type: Embedded 12db Directional Patch
- Configuration Programming: Dip-Switch Select Device Pairing
- Power Supplies Included: 2x 24vdc Poe Injectors – Model # Ps-2412poe
- Power Connector: Rj45
- Current Consumption: 3 Watts @ 24vdc Poe
- Construction: Ip-53 Rated All-Weather Design
- Weight: 16.8oz (476g) Each
- Tx & Rx Dimensions: 7.8" X 5.15" / (200mm X 131mm)
- Tx & Rx Mounting Brackets: Universal Abs Plastic Wall / Pole Mount
- Operating Temperature Range: -40f To +170f (-40ºc To 77ºc)
- Note: Compatible With All Ip Network Products
- Fcc / Ic Approved: Yes
Packing List
- 2x Wireless Video Access Points
- 2x 24vdc Poe Power Injectors
- 2x Universal Mounting Brackets
- Quick Start Guide
- One Year Limited Warranty
- 100% Performance Guarantee
Downloads
Additional Information
|
Accessory Type:
|
Wireless Access Point
|
|
Dimensions:
|
200 x 131 mm (7.8 x 5.15 in)
|
|
Frequency:
|
5.185 GHz
5.825 GHz
|
|
LED Indicator:
|
|
|
Max Power Consumption:
|
3 Watts
|
|
Network Interface:
|
2x RJ-45 10/100 Mbps
|
|
PoE Standards:
|
IEEE 802.11a
IEEE 802.11n
|
|
Power Supply:
|
24 VDC
|
|
Protection Code:
|
IP53
|
|
RAM:
|
64MB
|
|
Range:
|
1500ft
|
|
Warranty:
|
1-year Manufacturer Warranty
|
