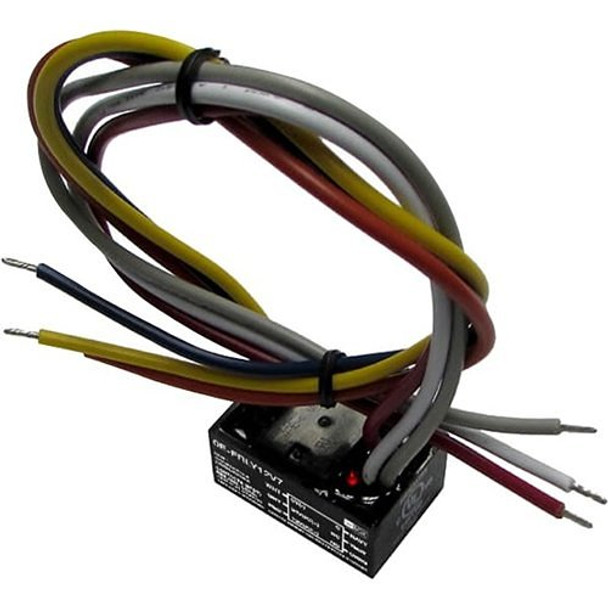

W Box 0E-FRLY12V7 7A Multi-Voltage Relay Module

Part Number: 0E-FRLY12V7
Write a Review
$18.56
Technical Support Technical Support

Description

W Box 0E-FRLY12V7 7A Multi-Voltage Relay Module

0E-FRLY12V7 is an encapsulated multi-voltage relay suited to applications requiring a remote relay for control or status feedback. It includes long flying leads selectable for the input control voltage to be applied. A red LED indicates relay coil is energized. Applications include Fire Alarm Control, security systems, HVAC, temperature control, lighting systems and energy management. 0E-FRLY12V7 is UL 864 listed for Fire Alarm Control Equipment. Includes mounting/wiring hardware.

Key Features:

  • Voltage Input: 12VDC, 24VDC
  • Polarized Coil Input: DC Control Input Only
  • Dry Form C SPDT
  • Contact Ratings: 5VDC = 250?A/ 0.35 P.F.; 24VDC = 7A/ 0.35 P.F.; 120VAC = 7A
  • Red Led Indicates Relay Coil is Energized
  • Wire Type: SIX (6) 12” 18AWG FLYING LEADS
  • Oper. Temp: 32oF TO 120oF (0oC TO 49oC), RH 93%
