Waist High Wall Mount Turnstile TS-30

Brand:
Part Number: TS-30
Write a Review
  • Waist High Wall Mount Turnstile TS-30

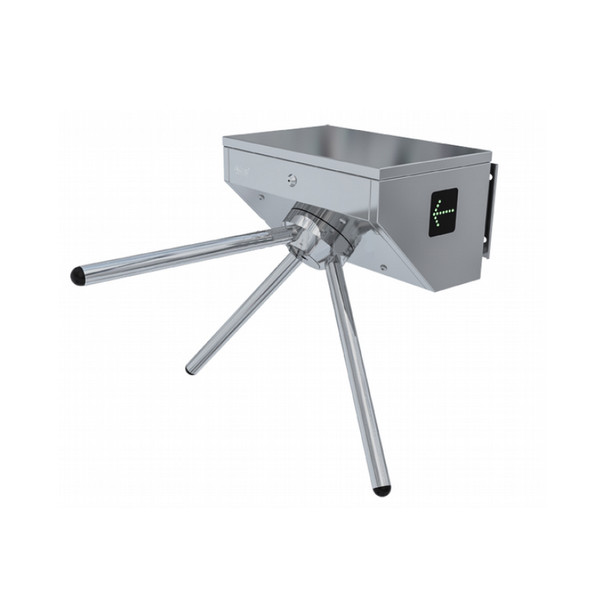

  • Waist Height Turnstile without Legs TS-30
  • Waist Height Turnstile without Legs TS-30
  • Waist High Wall Mount Turnstile TS-30
  • Waist Height Turnstile without Legs TS-30
  • Waist Height Turnstile without Legs TS-30
  • Waist Height Turnstile without Legs TS-30
$1,950.00
$1,664.29
OR
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Turnstile Type : Waist High
  • Dimensions : 280 x 450 x 240 mm (110.23 x 177.16 x 94.48 in)
  • Direction : Bi-Directional
  • Flow Rate : 30 Passage/Minutes
  • Protection Code : IP54
  • Environmental : Indoor
  • Access Control Type : Turnstile

Description

Waist High Wall Mount Turnstile

Turnstile provides a wide range of complete solutions for pedestrian access control from public transportation to stadiums, from airports and business centers to industrial facilities. For areas requiring moderate level of security Waist Height Turnstiles; for business centers and public facilities where aesthetic value is important Free Pass Turnstiles; for physically handicapped people’s passage and goods entry VIP-Disabled Entry Turnstiles and for areas requiring high level of security Half Height Turnstiles, Full Height Turnstiles and Glass Height Turnstiles provide access control.

Specifications

Material

Main Body: AISI- 304 - Stainless Steel - Scotch Brite ( Op. AISI-316 Quality)
Tripod Arms: Q32 mm dia - Stainless Steel - Arms can be dismantled or mounted one by one separately.

Standard
Dimensions

28 x 45 x 24 cm ( W x L x H )

Rotor Systems

With rotating control; tripod arms are positioned at 120 degrees.

Rotation Control

Self centering and smooth operation is handled by means of spring and hydraulic damping mechanism.

Energy / Operating Voltage

110 - 240V AC 50/60 Hz (+/- %10)

Control Systems

All inputs are opto-coupler protected. Compatible with all access control systems that provide dry contact or grounding outputs.

IP Rating

IP 54

Flow Rate

30 Passage / Minutes / Normally Standard

Operating Temperature

-20° C / + 50° C

Operation

Bi-Directional operation feature. Entrance-Exit

Number of Passage Lanes

Single Unit

Indicators Features

Entrance - Green Arrow / Exit - Red Cross

Have questions?

Call Our Experts

866-441-2288

Waist High Turnstile Accessories

If you have special needs you can customize your entrance solution by these optional accessories. Please contact our experts, describe your needs and get more information.

Card Pass Applications

Special cover designs are applied to make card reader units of different types and sizes appear integrated on the turnstile.

Fingerprint / Handprint Reader Applications

Special cover designs are applied to make fingerprint and handprint reading units of different design and size appear integrated on the turnstile.

Face Recognition Applications

Special cover designs are applied to make face reading units of different design and size appear integrated on the turnstile.

Barcode Reader Applications

Special cover designs are applied to make barcode reading units of different design and size appear integrated on the turnstile.

Floor Mounting Plate

Ease of modular installation with anti-skid bottom platform. Ease of installation in difficult ground conditions. Front and rear ramp system for easy access.

Separator

Spacebar of the central portion, optionally, glass, plexiglass, to close with dekota types of material properties are available. Ability to shorten optional intermediate pipes.

Passage Tracking Sensors

Sensors can be deployed on the turnstile in accordance with required functions such as real-time passage signal or unauthorized passage alarm. 2 Sensors for one passage is available for bi-directional operation.

Button Control Unit

Provides remote control in security huts, security rooms. “Entry - Exit - Emergency” modes. BT-1 and BT-2 type options.

Counter

8-digit segment display is available. To be able to keep the memory of a power failure, be able to count on dry contact and voltage, reset capability. 10 years battery life.

Remote Control

1 Unit, working with 23V type 12V battery. 433.920MHz working frequency.

Receiver Unit

12 / 24V AC or DC supply. 2 relay outputs 7A 220V (Dry Contact). Momentary or Toggle relays with Jumper.

Thermostat

It stabilizes the efficiency of the working conditions of the mechanical and electronic structure inside the turnstile in extremely cold environments.

Protection Case

For the outdoor conditions, a special protective cover can be produced in a transparent structure that is suitable for the size of the turnstile.

You May Also Like

Image Product Name Unit Price
Oculur X4BF4M 4MP IR H.265+ Outdoor Bullet IP Security Camera with 4mm Fixed Lens

Sold out
Waist Height Single Corridor Turnstile TS-SKIPASS

Sold out

Turnstile FAQ

How can I choose the right turnstile?

There are many things to consider when choosing a turnstile. From shift changes to one-way walkways or parkway entry, we need to consider how frequently it will be used, if it’s going to just count people or if you need to use access control fobs. There's also a fee-based entry using tickets or tokens. We have a team that can help you design the correct system for your application.

Can I integrate my access control system with turnstiles?

Absolutely! Turnstiles are used in a wide variety of access control systems. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera and token applications can integrate with turnstiles.

What will happen when the electricity goes off and in emergency situations?

Turnstiles instantly unlock under emergency situations (power outages, fire, etc) We can also make them lock under situations such as a lockdown.

Can I use turnstiles indoors and outdoors?

Turnstiles are made for indoor or outdoor situations. For all Outdoor applications, we use 316 stainless steel to prevent corrosion.

Can I operate turnstiles manually or remotely?

Turnstiles are to be operated by the user at the turnstile. You can have a person who monitors the turnstile from the surveillance terminal.

How do I give access to ADA pedestrians?

We need to have a wide bay for anyone who has disabilities to allow for wheelchairs.

What does the warranty cover?

Every product we sell comes with a one year warranty. It covers the control board, solenoids, springs, and motor. It also includes lifetime phone support..

View AllClose

Additional Information

Access Control Type:
Turnstile
Arm/Wing Length (inch):
16.92
Dimensions:
280 x 450 x 240 mm (110.23 x 177.16 x 94.48 in)
Direction:
Bi-Directional
Environmental:
Indoor
Flow Rate:
30 Passage/Minutes
Operating Humidity:
0% to 95% RH (non-condensing)
Operating Temperature:
-20 °C to 50 °C (-4 °F to 122 °F)
Passage Lane:
Single
Protection Code:
IP54
Serial Interface:
1x RS232
Turnstile Type:
Waist High
