Waist High Turnstile Single Leg Single Sided

(No reviews yet) Write a Review
SKU:
AKT-28-E
Maximum Purchase:
1000 units

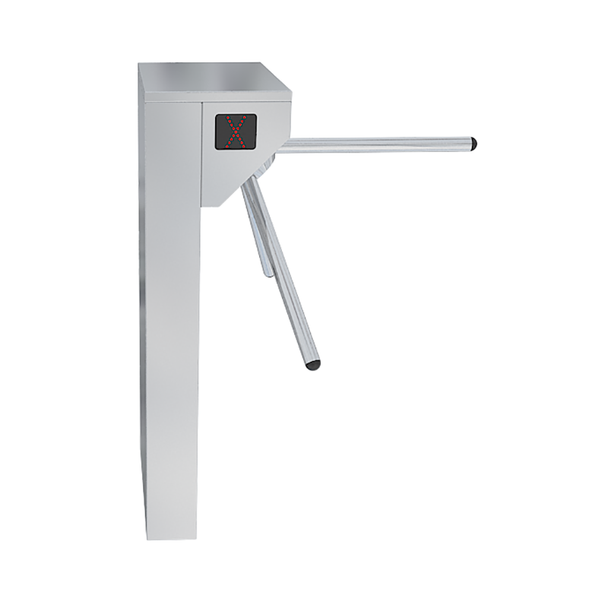

  • Waist Height Single Leg Turnstile AKT-28-E
  • Waist Height Single Leg Turnstile AKT-28-E

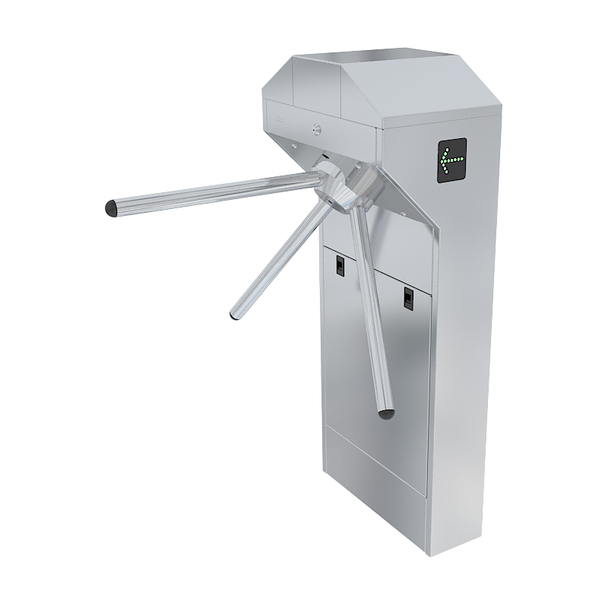

  • Waist Height Single Leg Turnstile AKT-28-A
  • Waist Height Single Leg Turnstile AKT-28-A
  • Waist Height Single Leg Turnstile AKT-28-G
  • Waist Height Single Leg Turnstile AKT-28-G
$1,950.00
Frequently bought together:

Description

Waist Height Double Sided Single Leg Turnstile

Waist Height Turnstiles are robust products functioning indoor or outdoor, provide access control in areas requiring moderate level of security.

Waist Height Turnstiles are designed for effective control of pedestrian access by allowing optimized flow in a wide range of busy and crowded areas such as Public Transportation Areas, Metro, Tram and Train Lines, Airports, Factories, Trade Centers, Public Buildings and Banks, Schools, Universities and Libraries. Since they enable passage of only single person at a time, they allow security team to prevent or restrict potential problems effectively.

Specifications

Material

Main Body: AISI- 304 - Stainless Steel - Scotch Brite (Op. AISI-316 Quality)
Tripod Arms: Q32 mm dia - Stainless Steel - Arms can be dismantled or mounted one by one separately.

Standard
Dimensions

AKT-28-E: 28 x 45 x 97 cm ( W x L x H )

AKT-28-A: 28 x 45 x 105 cm ( W x L x H )

AKT-28-G: 28 x 40 x 105 cm ( W x L x H )

Rotor Systems

With rotating control; tripod arms are positioned at 120 degrees.

Rotation Control

Self centering and smooth operation is handled by means of spring and hydraulic damping mechanism.

Energy / Operating Voltage

110 - 240V AC 50/60 Hz (+/- %10) 24V DC

Control Systems

All inputs are opto-coupler protected. Controlled by dry contact or grounding input. Compatiable with all access control systems that provide dry contact or grounding outputs.

Passage Direction

Bi-Directional operation feature. Entrance-Exit

Indicators Features

AKT-28-E: Entrance - Green Arrow / Exit - Red Cross
AKT-28-A: Entrance - Green Arrow / Exit - Red Cross
AKT-28-G: Passage Free - Green / Passage Closed - Red / Standby - Blue

Flow Rate

30 Passage / Minutes / Normally Standard

Operating Temperature

-20° C / + 50° C

Number of Passage Lanes

Single Unit

IP Rating

IP 54

Have questions?

Call Our Experts

866-441-2288

Optional Turnstile Accessories

If you have special needs you can customize your entrance solution by these optional accessories. Please contact our experts, describe your needs and get more information.

Floor Mounting Plate

Ease of modular installation with anti-skid bottom platform. Ease of installation in difficult ground conditions. Front and rear ramp system for easy access.

Separator

Spacebar of the central portion, optionally, glass, plexiglass, to close with dekota types of material properties are available. Ability to shorten optional intermediate pipes.

Passage Tracking Sensors

Sensors can be deployed on the turnstile in accordance with required functions such as real-time passage signal or unauthorized passage alarm. 2 Sensors for one passage is available for bi-directional operation.

Button Control Unit

Provides remote control in security huts, security rooms. “Entry - Exit - Emergency” modes. BT-1 and BT-2 type options.

Counter

8-digit segment display is available. To be able to keep the memory of a power failure, be able to count on dry contact and voltage, reset capability. 10 years battery life.

Remote Control

1 Unit, working with 23V type 12V battery. 433.920MHz working frequency.

Receiver Unit

12 / 24V AC or DC supply. 2 relay outputs 7A 220V (Dry Contact). Momentary or Toggle relays with Jumper.

Thermostat

It stabilizes the efficiency of the working conditions of the mechanical and electronic structure inside the turnstile in extremely cold environments.

Protection Case

For the outdoor conditions, a special protective cover can be produced in a transparent structure that is suitable for the size of the turnstile.

Card Pass Applications

Special cover designs are applied to make card reader units of different types and sizes appear integrated on the turnstile.

Fingerprint / Handprint Reader Applications

Special cover designs are applied to make fingerprint and handprint reading units of different design and size appear integrated on the turnstile.

Face Recognition Applications

Special cover designs are applied to make face reading units of different design and size appear integrated on the turnstile.

Barcode Reader Applications

Special cover designs are applied to make barcode reading units of different design and size appear integrated on the turnstile.

View AllClose

Additional Information

Manufacturer:
Oinone
Product Type:
Access Control
Access Control Type:
Turnstile
Turnstile Type:
Waist High
Datasheet:
Datasheet:
Arm / Wing Length:
430 mm
Direction:
Bi-Directional
Passage Lane:
Single
Flow Rate:
30 Passage / Minutes
Protection Code:
IP54
