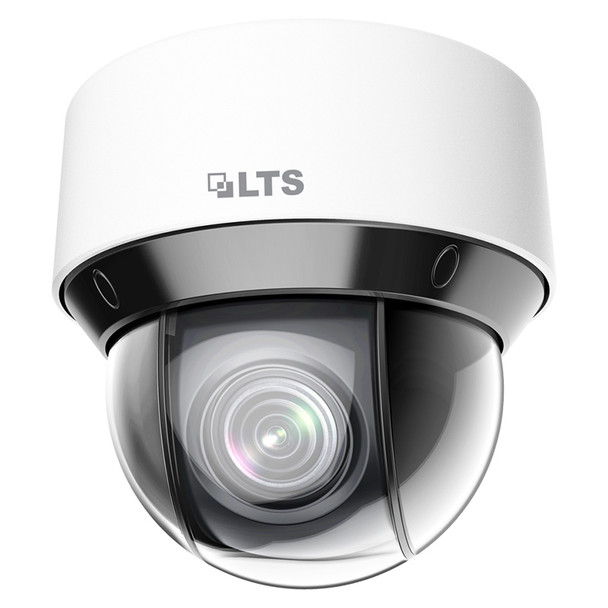

4 Megapixel InfraRed for Night Vision Outdoor PTZ IP Security Camera, SD Card Support, 25x Optical Zoom - PTZIP414NW-X25IR

Brand: LTS Security
Part Number: PTZIP414NW-X25IR
Write a Review
Replacement: LTS PTZIP514NW-X25IR 4MP H.265+ Night Vision Outdoor PTZ IP Security Camera with 25x Optical Zoom - LTPTZIP514NW-X25IR
Check other similar products:
LTS Security Cameras
Outdoor Security Cameras
LTS IP Security Cameras
LTS PTZ Security Cameras
4MP Security Cameras
LTS Platinum Series
IP PTZ Security Cameras
PTZ Security Cameras
Discontinued
  • 4 Megapixel InfraRed for Night Vision Outdoor PTZ IP Security Camera, SD Card Support, 25x Optical Zoom - PTZIP414NW-X25IR
  • 4 Megapixel InfraRed for Night Vision Outdoor PTZ IP Security Camera, SD Card Support, 25x Optical Zoom - PTZIP414NW-X25IR
  • 4 Megapixel InfraRed for Night Vision Outdoor PTZ IP Security Camera, SD Card Support, 25x Optical Zoom - PTZIP414NW-X25IR

? Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.265 Plus, H.265, H.264, H.264 Plus, MJPEG,
  • Field of View (Horizontal) : 57.6°Field of View 2.5°Field of View
  • Max. FPS and Resolution : 30fps at 2560 x 1440
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 4.8~120mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.5" Sensor
  • Max. Storage Capacity : 256 GB Storage Capacity
  • Protection Code : IP66
  • Environmental : Outdoor
  • Aperture : F1.6 F3.5

Related Products

LTS CMIP8042W-28MA 4MP H.265+ Bullet IP Security Camera with 2.8mm Fixed Lens, Built-in microphone - LTCMIP8042W-28MA - 1

LTS CMIP8042W-28MA 4MP H.265+ Bullet IP Security Camera with 2.8mm Fixed Lens, Built-in microphone - LTCMIP8042W-28MA

LTCMIP8042W-28MA
$139.22
  • Compression : H.265, H.265 Plus, H.264, H.264 Plus,
  • Field of View (Horizontal) : 98°Field of View
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/3" Sensor
  • Max. Storage Capacity : 256 GB Storage Capacity
  • Protection Code : IP67
  • Color : White
  • Environmental : Outdoor
  • Aperture : F2.0
  • Audio Support : Built-in Microphone
Network (IP) Network (IP)
4MP 4MP
98 98 Night Vision
White White
LTS Security LTPTZIP772NW-X32IR

LTS PTZIP772NW-X32IR 2MP Night Vision Outdoor PTZ IP Security Camera with 32x Optical Zoom - LTPTZIP772NW-X32IR

LTPTZIP772NW-X32IR
$927.05
  • Compression : H.265, H.264, H.265 Plus, H.264 Plus, MJPEG,
  • Field of View (Horizontal) : 2.6°Field of View 50.8°Field of View
  • Max. FPS and Resolution : 30fps at 1080P
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 4.8~153mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Protection Code : IP66 IK10
  • Material : ADC12
  • Environmental : Outdoor
  • Aperture : F1.6
  • Audio Support : Built-in Speaker
Free shipping over $300 Free Shipping
Network (IP) Network (IP)
2MP 2MP
656 656 Night Vision
ADC12 ADC12

Description

LTS PTZIP414NW-X25IR 4MP Night Vision Outdoor PTZ IP Security Camera with 25x Optical Zoom, H.265+

PTZIP414NW-X25IR 4MP 25x Network IR PTZ Camera adopts 1/2.5" progressive scan CMOS chip. With the 25× optical zoom lens, the camera offers more details over expansive areas.

This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations and large venues, etc.

Key Features:

  • 1/2.5" progressive scan CMOS
  • Up to 2560 x 1440 resolution
  • Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
  • 25× optical zoom, 16× digital zoom
  • 120 dB WDR, 3D DNR, HLC, BLC, Smart IR
  • Up to 164ft(50 m) IR distance
  • 12 VDC & PoE+ (802.3 at, class4)
  • Support H.265+/H.265 video compression

Downloads

Popular Search

LTS Security Cameras
Outdoor Security Cameras
LTS IP Security Cameras
LTS PTZ Security Cameras
4MP Security Cameras
LTS Platinum Series
IP PTZ Security Cameras
PTZ Security Cameras

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Alarm Input:
2 Channel
Alarm Output:
2 Channel
Alternative SKUs:
LTPTZIP414NW-X25IR
Aperture:
F1.6 F3.5
Audio Compression:
G.711alaw G.711ulaw G.722 G.726 MP2L2 PCM
Audio Input:
1x Channel
Audio Output:
1x Channel
Camera Style:
PTZ
Compatible Integration (API):
ISAPI CGI Conformant ONVIF Open-ended API
Compression:
H.265 Plus H.265 H.264 H.264 Plus MJPEG
Day/Night:
ICR (True Day/Night)
Digital Zoom:
16
Dimensions:
169 x 161 mm (6.65 x 6.34 in)
Durability:
Weatherproof
Environmental:
Outdoor
Field of View (Horizontal):
57.6 2.5
Languages:
English
Lens Size:
4.8~120mm
Lens Type:
Motorized (Automatic Zoom) Lens
Max. FPS and Resolution:
30fps at 2560 x 1440
Max. Storage Capacity:
256 GB
Minimum Illumination (B/W):
0 lux with IR illumination on 0.001 Lux at F1.6 AGC ON
Minimum Illumination (Color):
0.005 Lux at F1.6 AGC On
Network Interface:
1x RJ-45 10M/100M Base-TX Ethernet
Night Vision Range (ft):
165
Night Vision Type:
Night Vision (IR)
Noise Reduction:
3D DNR
Operating Humidity:
0% to 90% RH
Operating Temperature:
-30 °C to 65 °C (-22 °F to 149 °F)
Optical Zoom:
25x Optical Zoom
Power Supply:
12 VDC PoE+ (IEEE802.3at Class 4)
Product Series:
LTS Platinum Series
Protection Code:
IP66
Remote Users:
Up to 32
Resolution:
4MP
SD Card Support:
SD Card Supported
Sensor Size:
1/2.5"
Sensor Type:
CMOS
Shutter Speed:
1-1/30000s
Technology:
Network (IP)
Warranty:
3-year Manufacturer Warranty
Web Browser:
Chrome Firefox Internet Explorer 8 or above
Wide Dynamic Range (WDR):
True WDR 120dB
