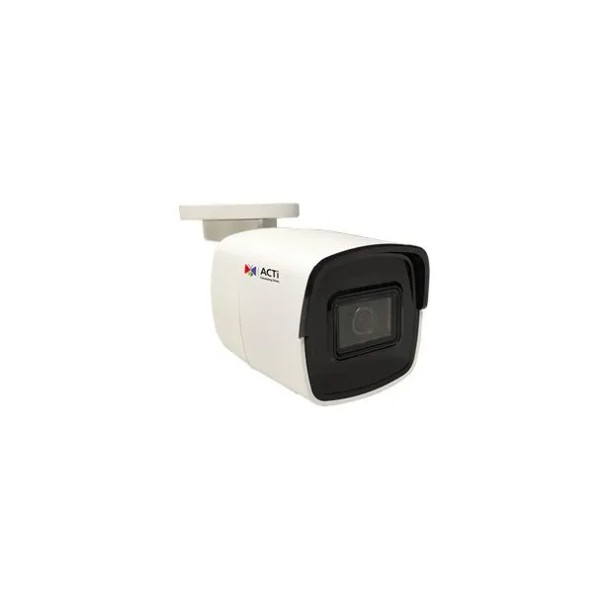

ACTi A314 6MP Outdoor Mini Bullet IP Security Camera with 2.8mm Lens and Built-In IR

Brand: ACTi
Part Number: A314
Write a Review
  • ACTi A314 6MP Outdoor Mini Bullet IP Security Camera with 2.8mm Lens and Built-In IR - 1
  • ACTi A314 6MP Outdoor Mini Bullet IP Security Camera with 2.8mm Lens and Built-In IR - 3 Years Warranty
$529.00
$377.14
— You save $151.86

? Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : H.264, H.265, MJPEG,
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.4" Sensor
  • Protection Code : IK10 IP68
  • Environmental : Outdoor
  • Aperture : F1.6

Description

ACTi A314 6MP Outdoor Mini Bullet IP Security Camera with 2.8mm Lens and Built-In IR

The ACTi A314 is a 6MP outdoor mini bullet IP security camera designed for AI-driven facial, people, and vehicle detection. Featuring a 2.8mm fixed lens, it provides a 103.6° horizontal and 56° vertical field of view, ensuring wide-area coverage. The camera captures 3200 x 1800 resolution at 30fps, delivering smooth and detailed imaging. Extreme WDR (150dB) enhances image quality in high-contrast environments, ensuring clear visuals in both bright and low-light conditions. Built-in IR illumination extends night vision up to 65 meters, making it effective for 24/7 surveillance. The rugged design is IP68-rated for dust and water resistance and IK10-rated for impact resistance, ensuring durability in harsh environments. With its advanced AI analytics, including object-based motion detection, intrusion detection, and vehicle recognition, the A314 is ideal for perimeter security, critical infrastructure, commercial properties, and transportation hubs requiring reliable, intelligent monitoring.

Key Features:

  • 6MP resolution; delivers 3200 x 1800 video at 30fps.
  • 2.8mm fixed lens; provides a 103.6° horizontal field of view for wide coverage.
  • Built-in IR illumination; provides night vision up to 65 meters for effective low-light surveillance.
  • Extreme WDR (150dB); enhances image clarity in high-contrast lighting conditions.
  • AI-based deep learning analytics; supports face detection, people tracking, and vehicle recognition.
  • Smart event detection; includes motion detection, object-based intrusion detection, and tampering alerts.
  • Digital noise reduction (2D + 3D DNR); improves image clarity by reducing noise.
  • Privacy masking; allows configuration of up to four regions for sensitive information protection.
  • IP68 weatherproof rating; provides protection against dust and water exposure.
  • IK10 impact-resistant housing; ensures durability against vandalism and physical damage.
  • PoE and 12VDC power options; offer flexible installation configurations.
  • ONVIF compliant; ensures seamless integration with leading video management systems.

Downloads

Additional Information

Aperture:
F1.6
Camera Style:
Mini Bullet
Compression:
H.264 H.265 MJPEG
Day/Night:
Dimensions:
71 mm × 71 mm × 170 mm (2.79” × 2.79” × 6.69”)
Durability:
Weather Resistant Vandal Resistant
Environmental:
Outdoor
Iris:
Fixed Iris
Lens Size:
2.8mm
Operating Humidity:
10% to 95% RH (non–condensing)
Operating Temperature:
-40 °C to 60 °C (-40 °F to 140 °F)
Power Supply:
PoE (IEEE 802.3af) 12 VDC
Protection Code:
IK10 IP68
Resolution:
6MP
SD Card Support:
SD Card Supported
Sensor Size:
1/2.4"
Sensor Type:
CMOS
Technology:
Network (IP)
Wide Dynamic Range (WDR):
WDR 150dB
