ACTi A416 4MP IR H.265 Outdoor Bullet IP Security Camera with Extreme WDR and Superior Low Light Sensitivity

(No reviews yet) Write a Review
SKU:
A416
UPC:
888034013032
  • ACTi A416 4MP IR H.265 Outdoor Bullet IP Security Camera with Extreme WDR and Superior Low Light Sensitivity
  • ACTi A416 4MP IR H.265 Outdoor Bullet IP Security Camera with Extreme WDR and Superior Low Light Sensitivity
  • ACTi A416 4MP IR H.265 Outdoor Bullet IP Security Camera with Extreme WDR and Superior Low Light Sensitivity
  • ACTi A416 4MP IR H.265 Outdoor Bullet IP Security Camera with Extreme WDR and Superior Low Light Sensitivity
$459.42
Free Shipping
Technical Support
  • Compression : H.265,
  • Field of View (Horizontal) : 104°Field of View 29°Field of View
  • Lens Type : Fixed Lens
  • Lens Size : 2.7-13.5mm Lens
  • Environmental : Outdoor

Description

ACTi A416 4MP IR H.265 Outdoor Bullet IP Security Camera with Extreme WDR and Superior Low Light Sensitivity

Key Features:

  • 4 Megapixel
  • 5x Zoom lens, f2.7-13.5mm/F1.6 (HOV:104°-29°), DC iris
  • Day & Night with Superior Low Light Sensitivity
  • Adaptive IR LED
  • Extreme WDR
  • H.265 Compression
  • Super wide angle
  • Event trigger, response and notification
  • 1440p/30fps,
  • 3D DNR,
  • Audio,
  • Built-in MicroSD/MicroSDHC/MicroSDXC slot,
  • PoE/DC12V,
  • Weatherproof IP68,
  • Vandal Proof IK10 (metal casing),
  • DI/DO
View AllClose

Specifications

Device

Product Type Zoom Bullet
Maximum Resolution 4MP
Product Application
Application Environment Outdoor
Description
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.7 "
Effective Pixels
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.01 lux; B/W: 0 lux (IR LED on)
Color to B/W Switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR LED IR LED x 4 (850 nm)
IR Working Distance 85m (1.0 lux)
Electronic Shutter 1/30-1/64000 second (auto mode)

Lens

Focal Length Zoom, f2.7-13.5mm
Aperture F1.6
Zoom Ratio 5x optical
Iris DC iris
Focus Auto focus
Lens Mount Board mount
Horizontal Viewing Angle 104° - 29°
Vertical Viewing Angle 55° - 17°

Video

Compression H.265, H.264 (Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 25 fps at 2688 x 1520
30 fps at 2560 x 1440
30 fps at 1920 x 1080
30 fps at 1280 x 960
30 fps at 1280 x 720
30 fps at 640 x 480
Multi-Streaming Simultaneous quad streams
Bit Rate 128Kbps - 12Mbps (per stream)
Bit Rate Mode Constant, Variable
Wide Dynamic Range Extreme WDR (150 dB)
Image Enhancement White Balance, Backlight compensation, Brightness, Contrast, Sharpness, Automatic gain control, Defogging
Digital Noise Reduction 2D + 3D DNR
Privacy Mask 4 configurable regions
Text Overlay Yes
Built-in Analytics Tampering Detection*, Face Detection*, Object Line Crossing Detection*, Object Enter Area Detection*
Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Flip, Mirror, Rotation

Audio

Audio Type 2-way, Line-in, Mic-in, Line-out
Audio Compression G.711

Network

Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Event

Event Trigger Video motion detection (10 included and excluded polygons regions), External device through digital input, Sound detection, Tampering detection
Event Response Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output

Integration

Unified Solution Fully compatible with ACTi software
GPS Position Manual setting
ONVIF Compliant Yes, Profile S, Profile G, Profile Q, Profile T
GB28181 Compliant Yes
Web Browser IE 11
Auto Firmware Upgrade Yes

Interface

Audio Interface 1/1, Terminal block
Analog Video Output 1 x NTSC (or PAL) composite, BNC connector
Local Storage MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 128GB)
Digital Input/Output 1/1 (Terminal block)

General

Power Source DC 12V, PoE Class 4 (IEEE802.3at)
Power Consumption 14.5 W (DC), 18 W (PoE)
Weight 1285g (2.8lb)
Dimensions (Ø x L): 105.1mm x 297.5mm (4.1" x 11.7")
Environmental Casing Weatherproof (IP68), Vandal proof metal casing (IK10)
Bundled Accessories Integrated bracket
Mount Type Integrated Bracket, Pole Mount
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Operating Humidity 10% - 95% RH
Approvals CE, FCC, IP68, NEMA 4X, IK10 (metal casing)
Material Metal
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Comments * To be available through future firmware upgrade

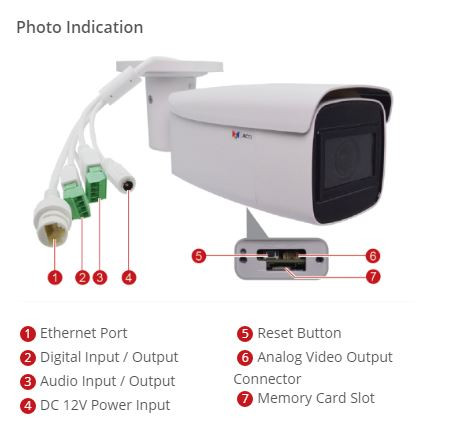

Photo Indication

  1. Ethernet Port
    • Digital Input / Output
      • Audio Input / Output
        • DC 12V Power Input
          • Reset Button
            • Analog Video Output Connector
              • Memory Card Slot

                Dimension Diagram

                Unit: mm [inch]

                View AllClose

                Compatible products

                Additional Information

                Camera Style:
                Bullet
                Compression:
                H.265
                Environmental:
                Outdoor
                Field of View (Horizontal):
                104 29
                Lens Size:
                2.7-13.5mm
                Lens Type:
                Fixed Lens
                Night Vision Range (ft):
                278ft
                Resolution:
                4MP
                Technology:
                Network (IP)
                View AllClose
