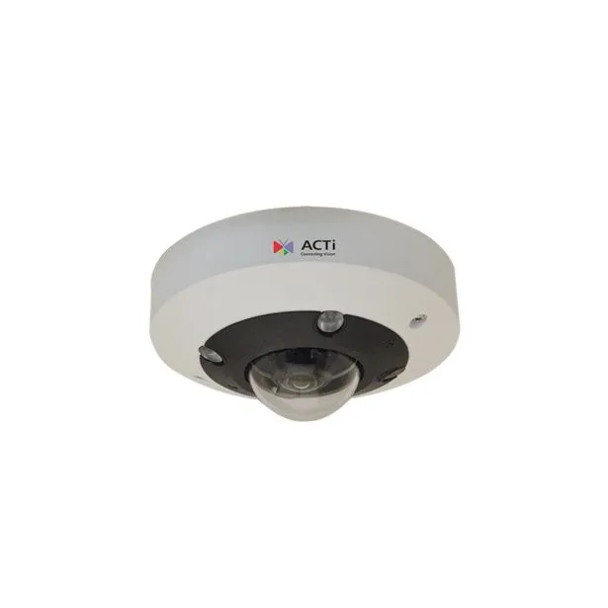

ACTi A711 12MP Outdoor Fisheye Dome IP Security Camera with 1.65mm Lens and Built-In IR

Brand: ACTi
Part Number: A711
Write a Review
  • ACTi A711 12MP Outdoor Fisheye Dome IP Security Camera with 1.65mm Lens and Built-In IR - 1
  • ACTi A711 12MP Outdoor Fisheye Dome IP Security Camera with 1.65mm Lens and Built-In IR - 3 Years Warranty
$2,165.00
$1,434.94
— You save $730.06

? Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : H.264, H.265, MJPEG,
  • Lens Type : Fixed Lens
  • Lens Size : 1.65mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/1.7" Sensor
  • Protection Code : IK10 IP66
  • Environmental : Outdoor
  • Aperture : F2.8

Description

ACTi A711 12MP Outdoor Fisheye Dome IP Security Camera with 1.65mm Lens and Built-In IR

The ACTi A711 is a high-resolution 12MP outdoor fisheye dome IP security camera designed for 360° panoramic surveillance. Equipped with a fisheye 1.65mm lens (F2.8), it delivers a complete overview of an area with a 190° horizontal and vertical field of view. The adaptive IR LEDs provide night vision up to 20 meters, ensuring reliable performance in low-light and complete darkness. With an Extreme Wide Dynamic Range (WDR) of 130 dB, the A711 enhances image quality in challenging lighting conditions. This camera supports multiple dewarped streaming options, including fisheye, panoramic, and ePTZ views, allowing for flexible monitoring and forensic analysis. Its rugged IP66 and IK10-rated housing ensures durability against harsh weather and physical impact. Supporting H.265, H.264, and MJPEG compression, the A711 optimizes bandwidth and storage while delivering ultra-clear video.

Key Features:

  • 12MP resolution; provides high-definition panoramic surveillance.
  • 20 fps at 4000 x 3000; ensures smooth and detailed video recording.
  • 1.65mm fisheye lens (F2.8); delivers a full 360° or 180° panoramic view.
  • Built-in IR with adaptive IR LED; enables night vision up to 20 meters.
  • Extreme Wide Dynamic Range (WDR) at 130 dB; enhances visibility in challenging lighting.
  • Multiple viewing modes; supports fisheye, dewarped, and ePTZ views for flexible monitoring.
  • AI-powered analytics; supports people detection, vehicle detection, and intrusion alerts.
  • IP66-rated weatherproof housing; protects against dust, water, and extreme weather.
  • IK10 vandal-proof metal casing; ensures resistance to physical impact and tampering.
  • H.265, H.264, and MJPEG video compression; optimizes bandwidth and storage usage.
  • ONVIF compliant; ensures seamless integration with third-party security systems.
  • Multi-streaming capability; supports quad streams with customizable resolution and compression.
  • Motion detection with multiple configurable zones; triggers alerts and automated responses.
  • PoE (IEEE802.3af) support; simplifies installation with power and data over a single cable.
  • Operating temperature range of -10°C to 50°C (14°F to 122°F); designed for stable outdoor performance.
  • Privacy masking with configurable regions; enhances security and compliance.
  • Secure network access; supports HTTPS encryption, IP filtering, and user-level authentication.

Downloads

Additional Information

Aperture:
F2.8
Camera Style:
Dome Fisheye
Compression:
H.264 H.265 MJPEG
Dimensions:
130 mm × 57.8 mm (5.11" × 2.28")
Durability:
Dust Resistant Vandal Resistant Weather Resistant
Environmental:
Outdoor
Iris:
Fixed Iris
Lens Size:
1.65mm
Lens Type:
Fixed Lens
Operating Humidity:
10% to 90% RH (non-condensing)
Operating Temperature:
-10 °C to 50 °C (14 °F to 122 °F)
Power Supply:
PoE (IEEE 802.3af) 12 VDC
Protection Code:
IK10 IP66
Resolution:
12MP
SD Card Support:
SD Card Supported
Sensor Size:
1/1.7"
Sensor Type:
CMOS
Technology:
Network (IP)
Wide Dynamic Range (WDR):
WDR 130dB
