Description

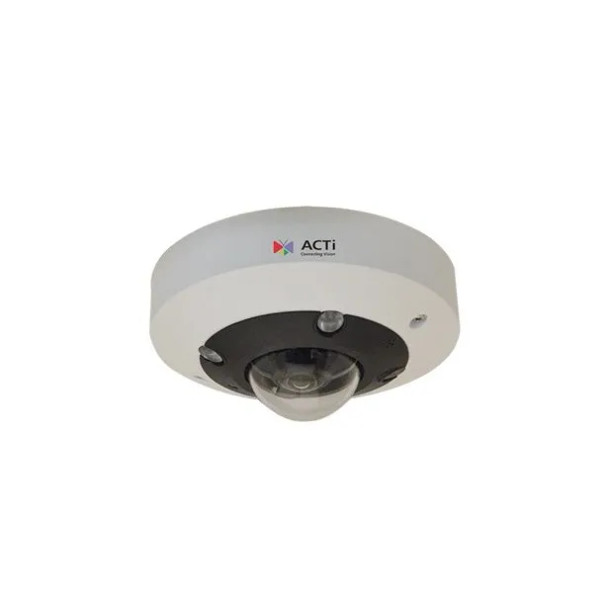

ACTi A713 5MP Outdoor Fisheye Dome IP Security Camera with 1.1mm Lens and Built-In IR
The ACTi A713 is a high-resolution 5MP outdoor fisheye dome IP security camera designed for 360° panoramic surveillance. Equipped with a fisheye 1.1mm lens (F2.4), it provides an ultra-wide 197° field of view, capturing comprehensive scene coverage. The adaptive IR LEDs ensure night vision up to 20 meters, delivering clear imaging in low-light and complete darkness. With an Extreme Wide Dynamic Range (WDR) of 130 dB, the A713 enhances image clarity in high-contrast environments. The camera supports multiple viewing modes, including fisheye, dewarped, and ePTZ views, enabling flexible monitoring and forensic analysis. The rugged IP66 and IK10-rated housing ensures durability against extreme weather and vandalism. Supporting H.265, H.264, and MJPEG compression, the A713 optimizes bandwidth and storage efficiency.
Key Features:
- 5MP resolution; delivers high-definition panoramic surveillance.
- 30 fps at 2560 x 1960; ensures smooth and detailed recording.
- 1.1mm fisheye lens (F2.4); captures a full 360° or 180° panoramic view.
- Built-in IR with adaptive IR LED; enables night vision up to 20 meters.
- Extreme Wide Dynamic Range (WDR) at 130 dB; enhances visibility in challenging lighting.
- Multiple viewing modes; supports fisheye, dewarped, and ePTZ views for flexible monitoring.
- AI-powered analytics; supports tampering detection and motion detection alerts.
- IP66-rated weatherproof housing; protects against dust, water, and extreme weather conditions.
- IK10 vandal-proof metal casing; ensures resistance to physical impact and tampering.
- Built-in heater; ensures reliable operation in extremely low temperatures.
- H.265, H.264, and MJPEG video compression; optimizes bandwidth and storage usage.
- ONVIF compliant; ensures seamless integration with third-party security systems.
- Multi-streaming capability; supports triple streams with customizable resolution and compression.
- Motion detection with multiple configurable zones; triggers alerts and automated responses.
- PoE (IEEE802.3af) support; simplifies installation with power and data over a single cable.
- Operating temperature range of -30°C to 55°C (-22°F to 131°F); designed for extreme environments.
- Privacy masking with configurable regions; enhances security and compliance.
- Secure network access; supports HTTPS encryption, IP filtering, and user-level authentication.
Downloads
Additional Information
Aperture:
|
F2.4
|
Camera Style:
|
Fisheye
Dome
|
Compression:
|
H.264
H.265
MJPEG
|
Day/Night:
|
|
Dimensions:
|
130 mm × 57.8 mm (5.11" × 2.28")
|
Durability:
|
Dust Resistant
Vandal Resistant
Water Resistant
|
Environmental:
|
Outdoor
|
Iris:
|
Fixed Iris
|
Lens Size:
|
1.1mm
|
Lens Type:
|
Fixed Lens
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
Protection Code:
|
IK10
IP66
|
Resolution:
|
5MP (3K)
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/3.2"
|
Sensor Type:
|
CMOS
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
WDR 130dB
|
