Description

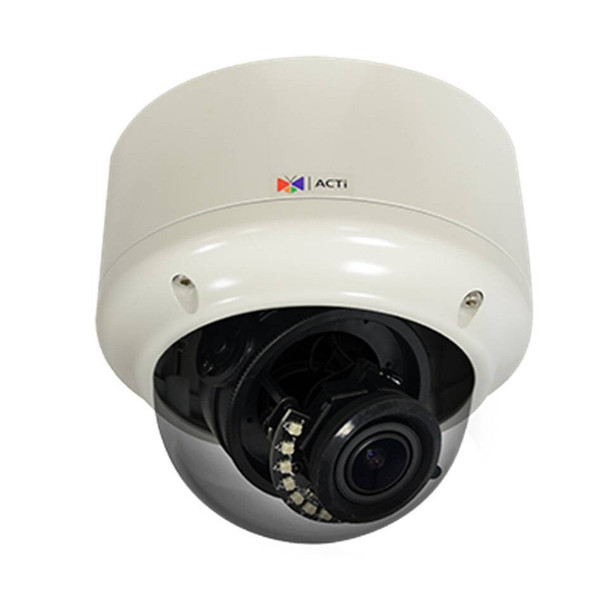

ACTi A83 2MP IR H.265 Outdoor Dome IP Security Camera
2MP, Outdoor Zoom Dome, Day / Night, Adaptive IR, Extreme WDR, Extreme Low Light Sensitivity, Built-in Analytics, 4.3x optical.
Key features:
- Product Type : Zoom Dome
- Maximum Resolution : 2MP
- Application Environment : Outdoor
- Day / Night : Yes
- Low Light Sensitivity : Extreme
- IR LED : Adaptive IR LED
- Wide Dynamic Range : Extreme WDR (130 dB)
- Local Storage : MicroSDHC, MicroSDHC
- Built-in Analytics : Yes
- H.265, H.264 (Baseline/ Main/ High profile), MJPEG
- 2D + 3D DNR
- Weatherproof (IP66), Vandal proof (IK10)
Downloads
User Manual
acti-A8x_Hardware_Manual-A1.pdf
Datasheet
acti-A83_Datasheet_20161005-A1.pdf
Firmware
ACTi-A83-Firmware-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Aperture:
|
F1.4
F2.8
|
|
Audio Capability:
|
Two-Way Audio
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
CE
FCC
EAC
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile S
ONVIF Profile G
ONVIF Profile Q
ONVIF Profile T
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Digital Input:
|
1
|
|
Digital Output:
|
1
|
|
Dimensions:
|
139.95 x 131.17 mm (5.509 x 5.164 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
88
25
|
|
IR LED Quantity:
|
12
|
|
Iris:
|
P-iris
|
|
Lens Mount:
|
Board Mounted
|
|
Lens Size:
|
2.8~12mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Max Power Consumption:
|
10 Watts
|
|
Max. FPS and Resolution:
|
30fps at 1080P
|
|
Max. Storage Capacity:
|
128 GB
|
|
Minimum Illumination (B/W):
|
0.001 Lux
|
|
Minimum Illumination (Color):
|
0.002 Lux
|
|
Mounting:
|
Surface Mount
Wall Mount
Pendant Mount
|
|
Network Interface:
|
1x RJ-45
|
|
Night Vision Range (ft):
|
98
|
|
Noise Reduction:
|
2D DNR
3D DNR
|
|
Optical Zoom:
|
4.3x Optical Zoom
|
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
|
|
Product Series:
|
ACTi A-Series
|
|
Protection Code:
|
IP66
IK10
NEMA 4X
|
|
Resolution:
|
2MP
|
|
S/N Ratio:
|
56 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/5-1/64000s
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
WDR 142dB
|
