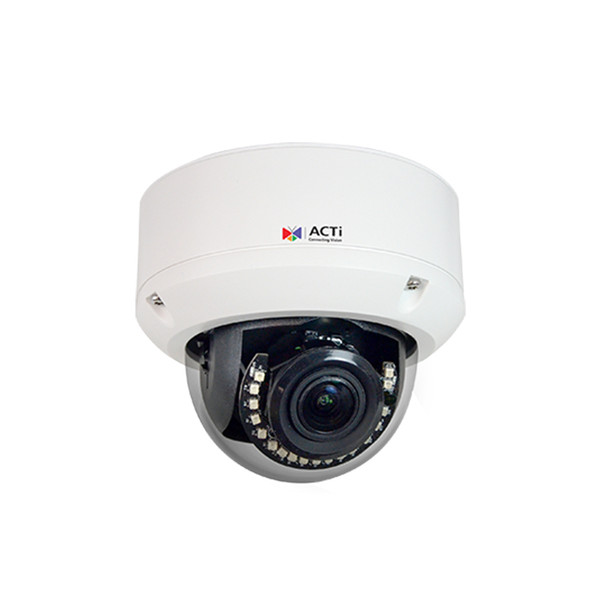

ACTi A86 5MP IR H.265 Outdoor Dome IP Security Camera with Face, People and Car Detection

Brand: ACTi
Part Number: A86
Write a Review
  • ACTi A86 5MP IR H.265 Outdoor Dome IP Security Camera with Face, People and Car Detection
  • ACTi A86 5MP IR H.265 Outdoor Dome IP Security Camera with Face, People and Car Detection
  • ACTi A86 5MP IR H.265 Outdoor Dome IP Security Camera with Face, People and Car Detection
  • ACTi A86 5MP IR H.265 Outdoor Dome IP Security Camera with Face, People and Car Detection
$787.14

Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : H.265,
  • Field of View (Horizontal) : 96.8°Field of View 30.7°Field of View
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 2.7~13.5mm Lens
  • Environmental : Outdoor

Description

ACTi A86 5MP IR H.265 Outdoor Dome IP Security Camera with Face, People and Car Detection

Key Features:

  • Face, People and Car Detection
  • 5 Megapixel
  • Day & Night with Extreme Low Light Sensitivity and Adaptive IR LED
  • 5x Zoom Lens with f2.7-13.5/F1.4-F3.3, Auto focus (for installation)
  • Extreme WDR
  • H.265 Compression
  • Wide Angle
  • Built-in Analytics
  • 1080p/30fps,
  • 2D+3D DNR,
  • Audio,
  • MicroSDHC/MicroSDXC slot,
  • PoE/DC12V,
  • Weatherproof IP66,
  • Vandal Proof IK10,
  • DI/DO

Specifications

Device

Product Type Zoom Dome
Maximum Resolution 5MP
Product Application Face, People and Car Detection
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.8 "
Effective Pixels 2616(H) X 1964(V) (5.14 MP)
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.2 lux; B/W: 0.02 lux
Color to B/W Switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR LED Adaptive IR LED
IR Working Distance 30m
Electronic Shutter 1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode)
Horizontal Resolution (TV Lines) 1600 TVL

Lens

Focal Length Zoom, f2.7-13.5mm
Aperture F1.4-F3.3
Zoom Ratio 5x optical
Zoom Application Camera Installation
Iris Adaptive iris
Focus Auto focus
Lens Mount Board mount
Horizontal Viewing Angle 96.8° - 30.7°
Vertical Viewing Angle 70.4° - 23.1°

Video

Compression H.265, H.264 (Main profile), MJPEG
Maximum Frame Rate vs. Resolution 30 fps at 2560 x 1920
30 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 960
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 720 x 480
30 fps at 640 x 480
30 fps at 320 x 240
Multi-Streaming Simultaneous triple streams based on three configurations
Bit Rate Mode Constant, Variable
Wide Dynamic Range Extreme WDR (125 dB)
Image Enhancement White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless, Digital Image Stabilizer (DIS, EIS), Defogging
Digital Noise Reduction 2D + 3D DNR
Privacy Mask 4 configurable regions
Text Overlay Yes
On-Screen Graphics Yes
Built-in Analytics People Detection*, Car Detection*, Face Detection*, Tampering Detection, People Line Crossing Detection*, People Enter Area Detection*, People Exit Area Detection*, Vehicle Line Crossing Detection*, Vehicle Enter Area Detection*, Vehicle Exit Area Detection*
Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Flip, Mirror, Rotation

Audio

Audio Type 2-way, Mic-in, Line-in, Line-out
Audio Compression 8 kHz, Mono, G.711

Network

Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login

Video Analytics

Analysis Source Type Video

Event

Event Trigger Video motion detection (3 regions), External device through digital input, Sound detection, Tampering detection
Event Response Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output

Integration

Unified Solution Fully compatible with ACTi software
ONVIF Compliant Yes, Profile S, Profile G, Profile T, Profile Q
Web Browser IE 11
Auto Firmware Upgrade Yes*

Interface

Local Storage MicroSDHC, MicroSDXC memory card slot (card not included)
Digital Input/Output 1/1 (Terminal block)

General

Power Source DC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption 12.95 W (PoE)

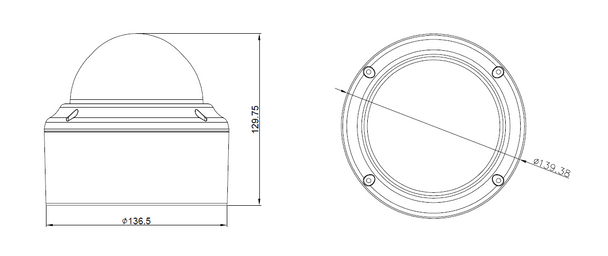

Dimensions (Ø x H): 139.38mm x 129.75mm (5.48" x 5.10")
Environmental Casing Weatherproof (IP66), Vandal proof (IK10)
Mount Type Surface, Pendant, Wall Mount
Starting Temperature -20°C ~ 50°C (-4°F ~ 122°F)
Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F)
Operating Humidity 20% - 80% RH
Approvals CE Class A, FCC Class A, IP66, IK10
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Comments * To be available through future firmware upgrade
View AllClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at [email protected] with any design questions.

Additional Information

Camera Style:
Dome
Compression:
H.265
Environmental:
Outdoor
Field of View (Horizontal):
96.8 30.7
Lens Size:
2.7~13.5mm
Lens Type:
Motorized (Automatic Zoom) Lens
NDAA Compliance:
NDAA Compliant
Night Vision Range (ft):
98
Resolution:
5MP (3K)
Technology:
Network (IP)
