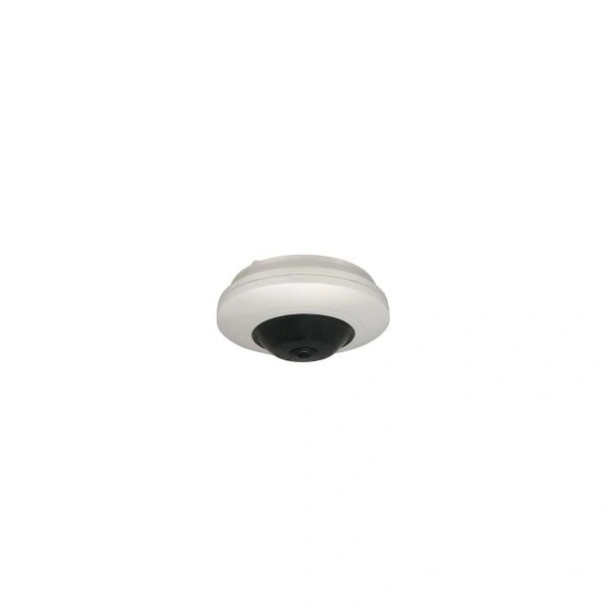

ACTi A912 5MP Indoor Fisheye Mini Dome IP Security Camera with 1.05mm Lens and Built-In IR
The ACTi A912 is a high-resolution 5MP indoor fisheye mini dome IP security camera designed for 360° panoramic surveillance. Equipped with a fisheye 1.05mm lens (F2.25), it delivers an ultra-wide 180° horizontal and vertical field of view, providing complete area coverage. The adaptive IR LEDs ensure night vision up to 20 meters, ensuring clear imaging in low-light and complete darkness. With an Extreme Wide Dynamic Range (WDR) of 130 dB, the A912 enhances image clarity in high-contrast environments. The camera supports multiple dewarped streaming options, including fisheye, panoramic, and ePTZ views, enabling flexible monitoring and forensic analysis. Supporting H.265, H.264, and MJPEG compression, the A912 optimizes bandwidth and storage efficiency.
Key Features:
- 5MP resolution; delivers high-definition panoramic surveillance.
- 30 fps at 2560 x 1920; ensures smooth and detailed recording.
- 1.05mm fisheye lens (F2.25); provides a full 360° or 180° panoramic view.
- Built-in IR with adaptive IR LED; enables night vision up to 20 meters.
- Extreme Wide Dynamic Range (WDR) at 130 dB; enhances visibility in challenging lighting.
- Multiple viewing modes; supports fisheye, dewarped, and ePTZ views for flexible monitoring.
- AI-powered analytics; supports people counting, heat mapping, and tampering detection.
- Compact and lightweight design; ideal for discreet indoor installations.
- H.265, H.264, and MJPEG video compression; optimizes bandwidth and storage usage.
- ONVIF compliant; ensures seamless integration with third-party security systems.
- Multi-streaming capability; supports dual streams with customizable resolution and compression.
- Motion detection with multiple configurable zones; triggers alerts and automated responses.
- PoE (IEEE802.3af) support; simplifies installation with power and data over a single cable.
- Operating temperature range of -10°C to 50°C (14°F to 122°F); designed for stable indoor performance.
- Privacy masking with configurable regions; enhances security and compliance.
- Secure network access; supports HTTPS encryption, IP filtering, and user-level authentication.
Downloads
Additional Information
|
Aperture:
|
F2.25
|
|
Camera Style:
|
Fisheye
Mini Dome
|
|
Compression:
|
H.264
H.265
|
|
Day/Night:
|
|
|
Dimensions:
|
119.9 mm × 41.2 mm (4.7" × 1.6")
|
|
Environmental:
|
Indoor
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
1.05mm
|
|
Lens Type:
|
Fixed Lens
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Resolution:
|
5MP (3K)
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
WDR 130dB
|
