Description

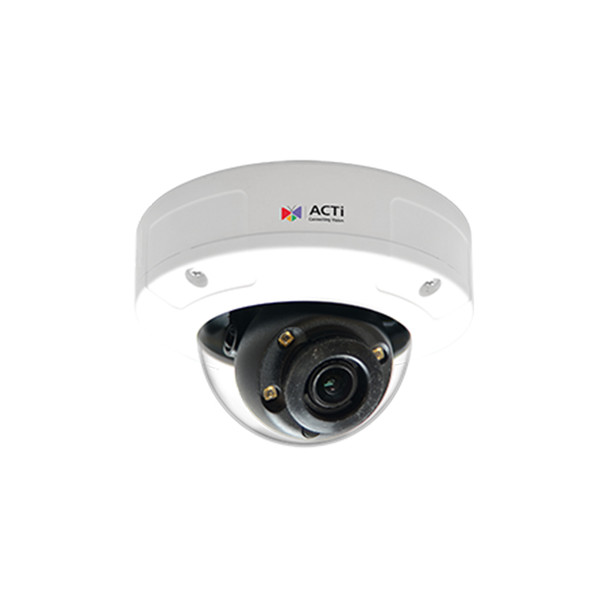

ACTi A96 2MP IR H.265 Outdoor Mini Dome IP Security Camera with Superior Low Light Sensitivity
Key Features:
- 2 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fixed Lens with f2.8mm/F2.0, (HOV:90°),
- Superior WDR
- H.265 Compression
- Wide Angle
- 1080p/30fps,
- 2D+3D DNR,
- MicroSDHC slot,
- PoE/DC12V,
- Weatherproof IP66,
- Vandal Proof IK10
Replacement of:
ACM-3601
Specifications
Device
| Product Type | Mini Dome |
| Maximum Resolution | 2MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 20m |
| Horizontal Resolution (TV Lines) | 1100 TVL |
Lens
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F2.0 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 90° |
| Viewing Angle Adjustment | Pan: ±120°, Tilt: 30°-90° |
Video
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 480 30 fps at 640 x 480 30 fps at 320 x 240 |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Bit Rate | 28Kbps - 12Mbps (per stream) |
| Bit Rate Mode | Constant, Variable |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Image Enhancement | Digital Image Stabilizer (DIS, EIS) |
| Digital Noise Reduction | 2D + 3D DNR |
| On-Screen Graphics | Yes |
| Built-in Analytics | Tampering Detection |
| Image Orientation | Flip, Mirror, Rotation |
Network
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP |
Integration
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11 |
Interface
| Local Storage | MicroSDHC Memory Card Slot (card not included, up to 128GB) |
General
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 5 W (PoE, IR on), 6 W (DC, IR on) |
| Weight | 342g (0.754lb) |
| Dimensions | (Ø x H): 99mm x 64.7mm (3.9" x 2.5") |
| Environmental Casing | Weatherproof (IP66), Vandal proof (IK10) |
| Mount Type | Surface, Wall Mount, Pendant |
| Starting Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Approvals | CE (EN 55032 Class A, EN 55024), FCC Class A, IP66, IK10 |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Camera Style:
|
Mini Dome
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
90
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Night Vision Range (ft):
|
65
|
|
Product Series:
|
ACTi A-Series
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Technology:
|
Network (IP)
|
