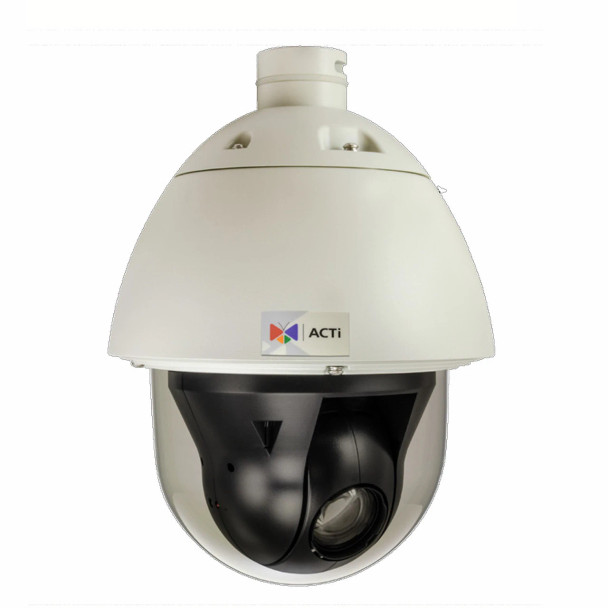

ACTi B916 2MP Outdoor PTZ IP Security Camera with 4.7-94mm Lens, 20x Optical Zoom
The ACTi B916 is a high-performance 2MP outdoor speed dome IP security camera designed for long-range surveillance with precise PTZ capabilities. Featuring a 20x optical zoom lens (4.7-94mm, F1.6-F3.5) with autofocus, it allows for flexible field-of-view adjustments to monitor both wide areas and detailed close-ups. With Extreme Wide Dynamic Range (WDR) at 145 dB, the B916 enhances visibility in high-contrast lighting conditions. AI-powered analytics support PTZ auto-tracking, line crossing detection, and tampering alerts for intelligent security automation. The rugged IP67 and IK09/IK10-rated housing ensures protection against extreme weather and physical impact. Supporting H.264 and MJPEG compression, the B916 optimizes bandwidth and storage efficiency.
Key Features:
- 2MP resolution; delivers high-definition video with sharp detail.
- 60 fps at 1920 x 1080; ensures smooth and clear recording.
- 20x optical zoom lens (4.7-94mm, F1.6-F3.5); enables precise long-range monitoring.
- Extreme Wide Dynamic Range (WDR) at 145 dB; enhances visibility in high-contrast lighting.
- AI-powered analytics; supports PTZ auto-tracking, line crossing detection, and tampering alerts.
- Endless 360° pan and -20° to 200° tilt; provides continuous and flexible area coverage.
- IP67-rated weatherproof housing; protects against dust, water, and extreme conditions.
- IK09 vandal-resistant dome cover (IK10 optional); ensures protection against physical impact and tampering.
- Multi-streaming capability; supports triple streams with customizable resolution and compression.
- Motion detection with multiple configurable zones; triggers alerts and automated responses.
- High PoE (IEEE802.3at) and AC 24V power support; offers flexible power options.
- Operating temperature range of -52°C to 60°C (-61.6°F to 140°F); designed for extreme environments.
- Privacy masking with configurable regions; enhances security and compliance.
- Secure network access; supports HTTPS encryption, IP filtering, and user-level authentication.
- ONVIF compliant; ensures seamless integration with third-party security systems.
Downloads
Additional Information
Aperture:
|
F1.6
F3.5
|
Audio Capability:
|
Two-Way Audio
|
Camera Style:
|
PTZ
|
Color:
|
White
|
Compression:
|
H.264
MJPEG
|
Day/Night:
|
|
Dimensions:
|
200 mm × 276 mm (7.9" × 10.9")
|
Durability:
|
Weather Resistant
Vandal Resistant
|
Environmental:
|
Outdoor
|
Iris:
|
Auto (DC-iris)
|
Lens Size:
|
4.7~94mm
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
Max. FPS and Resolution:
|
60fps at 1080P
|
Max. Storage Capacity:
|
256 GB
|
Optical Zoom:
|
20x Optical Zoom
|
Power Supply:
|
24 VAC
PoE+ (IEEE802.3at)
|
Protection Code:
|
IP67
NEMA 4X
IK09
|
Resolution:
|
2MP
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/2.8"
|
Sensor Type:
|
CMOS
|
Shutter Speed:
|
1/5-1/32000s
|
Technology:
|
Network (IP)
|
Warranty:
|
3-year Manufacturer Warranty
|
Wide Dynamic Range (WDR):
|
WDR 145dB
|
