Description
ACTi B928 5MP Outdoor Speed Dome with D/N, Adaptive IR, Extreme WDR, 36x Zoom Lens
Key Features
- 5 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- 36x Zoom Lens with f4.6-165.6mm/F1.55-F5.0, DC iris, Auto focus
- Extreme WDR
- Endless Pan & Tilt
- H.265 Compression
- Event trigger, response and notification
Downloads
Datasheet
-B928-Datasheet-A1
Quick Start Guide
-B928-Quick-Start-Guide-A1
Firmware
-B928-Firmware-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Aperture:
|
F1.55
F5.0
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
PCM
G.711
|
|
Built-in Features:
|
Built-in Heater
|
|
Camera Style:
|
Dome
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|

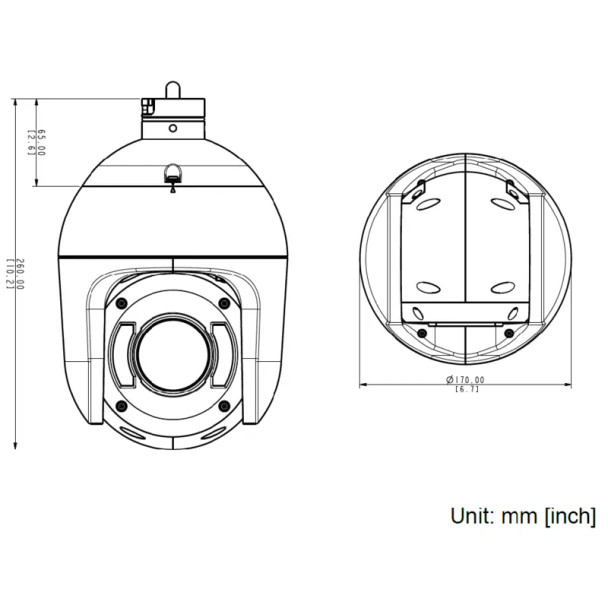

Dimensions:
|
170 x 260 mm (6.69 x 10.24 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
51.14
2.17
|
|
IR LED Quantity:
|
6
|
|
Iris:
|
Auto (DC-iris)
|
|
Lens Mount:
|
Board Mounted
|
|
Lens Size:
|
4.6~165.6mm
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
62 Watts
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.003 Lux
|
|
Mounting:
|
Wall Mount
Pendant Mount
Corner Mount
Pole Mount
Gang Box
|
|
Night Vision Range (ft):
|
492
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Optical Zoom:
|
36x Optical Zoom
|
|
Power Supply:
|
24 VAC
Hi-PoE
|
|
Product Series:
|
ACTi B-Series
|
|
Protection Code:
|
IP66
IK10
|
|
Resolution:
|
5MP (3K)
|
|
S/N Ratio:
|
56 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.9"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/5-1/64000s
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
