Description

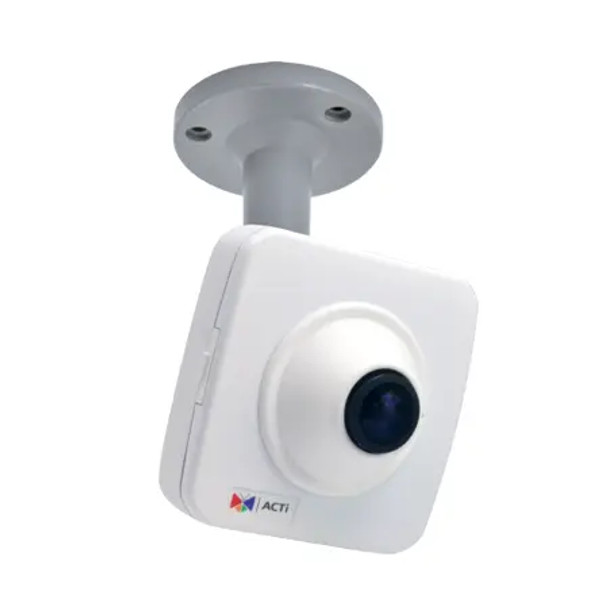

ACTi E16 10MP Indoor Fisheye Cube IP Security Camera with 1.37mm Lens
The ACTi E16 is a high-resolution 10MP indoor fisheye cube IP security camera designed for panoramic surveillance in offices, retail stores, and public spaces. Equipped with a fixed 1.37mm lens (F2.0), it provides a full 180° horizontal and 360° fisheye field of view, ensuring complete area coverage for wide-area monitoring. With Basic Wide Dynamic Range (WDR) at 70 dB, the E16 enhances visibility in environments with uneven lighting conditions. AI-powered analytics support object line counting, people counting, face detection, object-based motion detection, and intrusion alerts for intelligent security automation. The camera features two-way audio with a built-in microphone and line-out support, allowing real-time communication. Supporting H.264 and MJPEG compression, the E16 optimizes bandwidth and storage efficiency.
Key Features:
- 10MP resolution; delivers ultra-high-definition panoramic surveillance.
- 7 fps at 3648 x 2736; ensures smooth and clear recording.
- 1.37mm fisheye lens (F2.0); provides a full 180°/360° fisheye field of view.
- Basic Wide Dynamic Range (WDR) at 70 dB; enhances visibility in uneven lighting conditions.
- Multiple viewing modes; supports fisheye, dewarped, and ePTZ views.
- AI-powered analytics; supports object line counting, people counting, face detection, and intrusion alerts.
- Two-way audio; supports real-time communication with a built-in microphone and line-out.
- Multi-streaming capability; supports dual streams with customizable resolution and compression.
- Motion detection with multiple configurable zones; triggers alerts and automated responses.
- PoE (IEEE802.3af) support; simplifies installation with power and data over a single cable.
- Operating temperature range of -10°C to 50°C (14°F to 122°F); designed for stable indoor operation.
- Privacy masking with configurable regions; enhances security and compliance.
- Secure network access; supports HTTPS encryption, IP filtering, and user-level authentication.
- ONVIF compliant; ensures seamless integration with third-party security systems.
Downloads
Popular Search
Additional Information
|
Aperture:
|
F2.0
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Fisheye
Cube
|
|
Color:
|
White
|
|
Compression:
|
MJPEG
H.264
|
|
Dimensions:
|
96 x 96 x 45 mm (3.8 x 3.8 x 1.8 in)
|
|
Environmental:
|
Indoor
|
|
Iris:
|
Fixed Iris
|
|
Lens Angle Type:
|
Panoramic
|
|
Lens Size:
|
1.37mm
|
|
Lens Type:
|
Fixed Lens
|
|
Power Supply:
|
PoE (IEEE 802.3af)
|
|
Resolution:
|
10MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3.2"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/5-1/10000s
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
WDR 70dB
|
